Mounting Rails
SingleRail 36
Product number:
2004260
Mounting rail with side-connection and static confirmation in K2 Base. Can be used variably for different roof connections. Length: 5.95 m. Material: Aluminium EN AW-6063 T66
CarrierRail; 2.97 m
Product number:
2001014
The K2 CarrierRail is used as a base rail for façade installation on sandwich wall elements. Made from EN AW 6063 T66 aluminium for maximum durability and reliability
The K2 FacadeRail is securely fixed to a solid masonry or concrete facade in conjunction with the special Facade Console. Manufactured from EN AW 6063 T66 aluminium for maximum durability and reliability. Length: 4.00 metres.
MiniRail 60 Set
Product number:
2004596
Short rail for mounting solar modules on trapezoidal sheet metal roofs. Higher rail for the installation of optimisers and higher rear ventilation. Includes thread-forming screws with (diameter 6 mm). sealing washer. Material: Aluminium EN AW-6063 T66, EPDM, stainless steel A2
BasicRail 22
Product number:
2004279
Quick mounting rail with static confirmation in K2 Base. For mounting with BasicClip on a trapezoidal sheet metal roof or as base rail for the K2 Dome System. Length: 5.95 m. Material: Aluminium EN AW-6063 T66
PerfoRail M; 4.20 m
Product number:
2004698
Perforated mounting rail for direct mounting on concrete with and without insulation. Quick and easy fastening using RDS spacer screw. Base of the rail is 3 mm thick. Material: Aluminium EN AW 6063 T66
Short rail with static confirmation in K2 Base. For direct mounting in landscape orientation on sheet metal roofing. Length: 150 mm. Material: Aluminium EN AW-6063 T66, EPDM.
The MultiRail High is a short rail with increased installation height for better rear ventilation of the modules. For direct mounting in horizontal module orientation on trapezoidal sheet metal roofing. Length: 150 mm, height 100 mm. Material: Aluminium EN AW-6063 T66, EPDM.
The MultiRail High CSM is a short rail with increased installation height for better rear ventilation of the modules. For direct mounting in horizontal module orientation on corrugated sheet metal roofing. Length: 150 mm, height 100 mm. Material: Aluminium EN AW-6063 T66, EPDM.
MultiRail 25
Product number:
2002793
Short rail with static confirmation in K2 Base. For direct mounting in landscape orientation on sheet metal roofing. Length: 250 mm. Material: Aluminium EN AW-6063 T66, EPDM
MultiRail 10
Product number:
2001300
Short rail with static confirmation in K2 Base. For direct mounting in landscape orientation on sheet metal roofing. Length: 100 mm. Material: Aluminium EN AW-6063 T66, EPDM
MiniRail MK2 Set
Product number:
2004211
Short rail for mounting solar modules on trapezoidal sheet metal roofs. Including thread-forming screws with sealing washer (diameter 6 mm). Material: Aluminium EN AW-6063 T66, EPDM, stainless steel A2
Alternative article: 2004211Short rail for mounting solar modules on trapezoidal sheet metal roofs. Including thread-forming screws with sealing washer (diameter 6 mm). Material: Aluminium EN AW-6063 T66, EPDM, stainless steel A2
SolidRail UltraLight
Product number:
2004266
Mounting rail with static confirmation in K2 Base. Can be used variably for different roof connections. Length: 5.95 m. Material: aluminium EN AW-6063 T66
InsertionRail 2.0 - 40; 5.70 m, black anodised
Product number:
2004335
The InsertionRail 2.0 is ideal for mounting solar modules with a frame height of 40 mm and is suitable for both pitched roof and façade mounting. With the uncomplicated use of the CrossConnector 2.0, it can be easily mounted on any K2 mounting rail. It also enables direct integration into the BasicClip, similar to the functionality of the BasicRail. This versatile insertion rail makes installation even more efficient and customisable. Material: Aluminium EN AW 6063 T66, black anodised. Eloxal may show slight signs of scratching due to packaging and transport.
The InsertionRail 2.0 is ideal for mounting solar modules with a frame height of 35 mm and is suitable for both pitched roof mounting and façade mounting. With the uncomplicated use of the CrossConnector 2.0, it can be easily mounted on any K2 mounting rail. It also enables direct integration into the BasicClip, similar to the functionality of the BasicRail. This versatile insertion rail makes installation even more efficient and customisable. Material: Aluminium EN AW 6063 T66, black anodised. Eloxal may show slight signs of scratching due to packaging and transport.
SingleRail 36; 4.80 m, black anodised
Product number:
2004396
Mounting rail with side-connection and static confirmation in K2 Base. Can be used variably for different roof connections. Length: 4.80 m. Material: aluminium EN AW-6063 T66, black anodized. Eloxal may show slight scratches as a result of packaging and transport.
MultiRail 25 CSM
Product number:
2004210
Short rail with static confirmation in K2 Base. For direct mounting in landscape orientation on corrugated sheet metal covering with a radius of 22-45 mm. Length: 250 mm. Material: Aluminium EN AW-6063 T66, EPDM
MultiRail 10 CSM
Product number:
2004209
Short rail with static confirmation in K2 Base. For direct mounting in landscape orientation on corrugated sheet metal covering with a radius of 22-45 mm. Length: 100 mm. Material: Aluminium EN AW-6063 T66, EPDM
SolidRail Light
Product number:
2004271
Mounting rail with static confirmation in K2 Base. Can be used variably for different roof connections. Length 5.95 m. Material: aluminium EN AW-6063 T66
SingleRail 50; 4.80 m
Product number:
2004414
Mounting rail with side-connection and static confirmation in K2 Base. Can be used variably for different roof connections. Length: 4.80 m. Material: Aluminium EN AW-6063 T66
SolidRail Light; 4.80 m, black anodised
Product number:
2004397
Mounting rail with static confirmation in K2 Base. Can be used variably for different roof connections. Length 4.80 m. Material: aluminium EN AW-6063 T66, black anodized. Eloxal may show slight scratches as a result of packaging and transport.
Mounting rail with side-connection and static confirmation. Length: 4.80 m. Material: aluminium EN AW-6063 T66
Mounting rail with side-connection and static confirmation. Length: 4.40 m. Material: aluminium EN AW-6063 T66
SolidRail Medium; 4.80 m
Product number:
2004415
Mounting rail with static confirmation in K2 Base. Can be used variably for different roof connections. Length: 4.80 m. Material: aluminium EN AW-6063 T66
SolidRail Alpin; 5.95 m
Product number:
2004275
Mounting rail with static confirmation in K2 Base. Can be used variably for different roof connections. For high span width. Length 5.95 m. Material: aluminium EN AW-6063 T66
The InsertionRail 2.0 Cover 35 acts as a horizontal cover for the InsertionRail 2.0 for 35 mm frame heights and is clicked onto the mounting rail at both the top and bottom end of the module block. This rail cover prevents the accumulation of dirt or water in the insertion rails and at the same time contributes to an aesthetically pleasing overall appearance. Material: Aluminium EN AW 6060 T66, black anodised. Eloxal may show slight signs of scratching due to packaging and transport.
Rail connector Set SingleRail 36
Product number:
2001976
Rail connector set as connecting element between two K2 SingleRails 36. screw included. Material: Aluminium EN AW-6063 T66, stainless steel A2
Rail connector Set BasicRail
Product number:
1003571
Rail connector set for connecting 2 K2 BasicRails. With 3 drill holes for flexible mounting. Inklusive screws (bit T25). Material: Aluminum, Stainless steel A2
Rail connector Set SolidRail UltraLight and Light
Product number:
1004107
For quick and easy connection of two K2 SolidRail XS, UltraLight or Light. Set including screws and nuts.
Rail connector Set SolidRail Medium and Alpin
Product number:
1004109
For quick and easy connection of two K2 SolidRail Medium or Alpin. Set including screws and nuts. Material: Aluminium EN AW-6063 T66 / Stainless steel A2
Rail connector Set SingleRail 63
Product number:
2001627
Rail connector set as connecting element between two K2 SingleRails 63. screw included. Material: Aluminium EN AW-6063 T66, stainless steel A2
BasicLock 22 Set
Product number:
1003558
Mounting security for fusing the K2 BasicRail 22 in case of thermal expansion. Including screws and nuts. Material: Aluminum, stainless steel and PA.
Dome FlatConnector Set
Product number:
1006039
Rail connector set as connecting element between two K2
BasicRail
22. Screws included. Material: Aluminium
EN AW 5754 H111, stainless steel A2.
Alternative article: 2001976Rail connector set as connecting element between two K2 SingleRails 50. screw included. Material: Aluminium EN AW-6063 T66, stainless steel A2
MiniFive MK2 Stop Set
Product number:
2003379
Set of two hexagon socket screws and two MK2 that fix MiniFive to MiniRail. Material: Stainless steel
BlackCover SingleRail 36
Product number:
2003523
K2 BlackCover for black covering of the rail ends of the K2 SingleRail 36 and K2 SingleRail 36 light. Length of the cover: 150 mm.
MK2 insertion nut with clip, Stainless steel
Product number:
1001643
The Fast-installation MK2 insertion nut can be put into the K2 rail everywhere. The slot nut will adjust itself in the the rail and can be readjusted to every place of the rail. Material: stainless steel 1.4301, TPC.
MK2 Slot nut with clip, Aluminum
Product number:
2000034
The Fast-installation M K2 slot nut can be put into the K2 rail everywhere*. The slot nut will adjust itself in the the rail and can be readjusted to every place of the rail. Material:
Aluminium EN AW 6063 T66, Hytrel 8238-TPC.
Hexagonal socket head cap screw M8x20
Product number:
2001729
Hexagon socket head cap screw M8x20 with serration ISO 4762. Drive size: A/F 6. Material: Stainless steel A2
T-Bolt 20/12
Product number:
2002035
Hammerhead screw for insertion into the side chamber of the K2 SingleRail 36 & 50 rails. It can be inserted at any position and can be moved later if necessary. thread: M8x30 mm; head shape: 20/12; head dimensions: 15.5x8.5x4 mm. Material: stainless steel A2 1.4301
Hexagon Flange nut with serration M8
Product number:
1000043
Hexagon flange nuts with serration M8; DIN 6923 A2 M8. The Serration prevents accidental release. Material: A2 stainless steel; Drive size:A/F 13
Thread-forming metal screw
Product number:
1005207
Thread-tapping screw 6x25 mm for non-cutting processing, approved for sheet thicknesses (steel and aluminium) from 0.4 mm to 1.25 mm. With General approval. Certification: abZ (de), ETA (eu), ETN (fr). Material: stainless steel A2, EPDM
Self-tapping metal screw 6x40 mm
Product number:
2003424
Self-tapping screw 6x40 with monuted sealing washer(Ø16 mm). Approved for sheet thicknesses (steel and aluminium) from 0.4 mm.
Solar Cable Manager
Product number:
2002870
Solar Cable Manager with connecting possibility for outdoor-installation. LxW: 200x4.6 mm
The UV-resistant PVX Minimount provides a multifunctional cable management system for mesh tray suitable for K2 Systems mounting rails. Compatible mesh tray: 2004054. Material: PE and ASA
EndCap for SolidRail Light
Product number:
1004765
K2 End Cap for K2 SolidRail Light 37. Material: glass fibre reinforced polyamid
- Home
- Components
-
Pitched Roof / Facade
- Mounting Rails
Mounting Rails

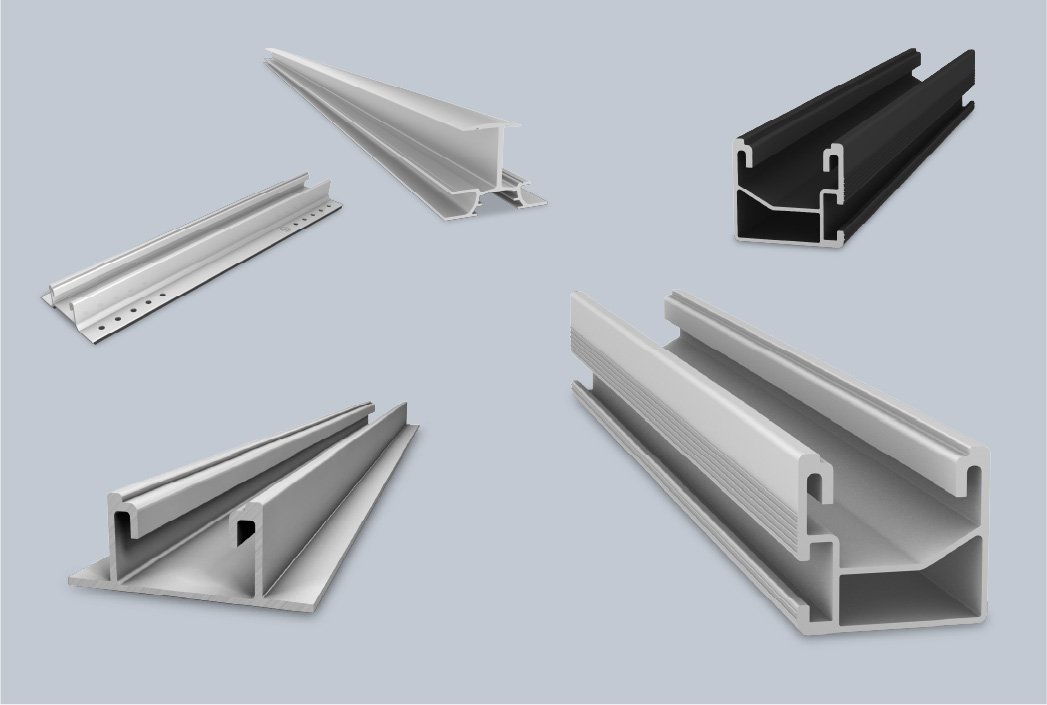

Module mounting rails from all mounting systems in all available lengths, rail connectors and accessories.
