Measurement Technology/Tools
K2 Buddy - BaseBox Set
Product number:
1000097
The K2 Buddy - BaseBox Set consists of a top-hat rail housing with integrated circuit board and a top-hat rail power supply unit. It is mounted in a weather-protected location in the building services connection room. The BaseBox monitors the measurement data of the TopBox on the roof at regular intervals (every 10 minutes) and transmits it to the cloud via the building's internet connection. It also monitors the power supply to the TopBox and switches it off in the event of a fault to ensure smooth operation.
The K2 Buddy is easy to install on tiled roofs. With just a few additional components, it can be installed on roof pitches of 15° to 45° and a rafter spacing of 0.55 m to 1.2 m in combination with the SingleHook 3S roof hook and the SingleRail 36 in a single layer. The following additional components are required to install the K2 Buddy in combination with the SingleRail system:1000003 K2 Buddy - TopBox Set Snow2002067 K2 Buddy - EPDM module bracing; 800
K2 Buddy - TopBox Set Snow
Product number:
1000003
The K2 Buddy - TopBox Set Snow contains two snow sensor units that precisely measure the snow load on a PV module. The K2 Buddy is easy to install on tiled roofs. With just a few additional components, it can be installed on roof pitches of 15° to 45° and a rafter spacing of 0.55 m to 1.2 m in combination with the SingleHook 3S roof hook and the SingleRail 36 in a single layer. The following additional components are required to install the K2 Buddy in combination with the SingleRail system:1000097 K2 Buddy - BaseBox Set2002067 K2 Buddy - EPDM module bracing; 800
K2 Buddy - EPDM module bracing; 800
Product number:
2002067
EPDM support for module stiffening rail in the Buddy SingleRail system. Length: 800 mm. Material: EPDM 80 +-5° Shore
K2 Buddy Dome 6.10 Set
Product number:
2004661
K2 Buddy mounting set for the K2 Dome 6.10 systems (Xpress,
Xpress LS, Classic, Classic LS). The K2 Buddy set contains two snow sensors, wired to the TopBox; BaseBox & power supply unit; cable connector; small parts for installation.
To install the K2 Buddy in combination with the Dome 6.10 Xpress or Classic systems, one of the following sets is also required:
K2 Buddy Dome Rail Set 30 mm; K2 Buddy Dome Rail Set 35 mm
Dome Speed Spacer Large
Product number:
2004129
Distance tool for the K2 Dome system. Length: 2,50 m. Material: Aluminium, Acromide
Test weight for measuring the coefficient of friction
Product number:
2002620
Test weight for measuring the coefficient of friction on a roof.
Measurement Technology/Tools

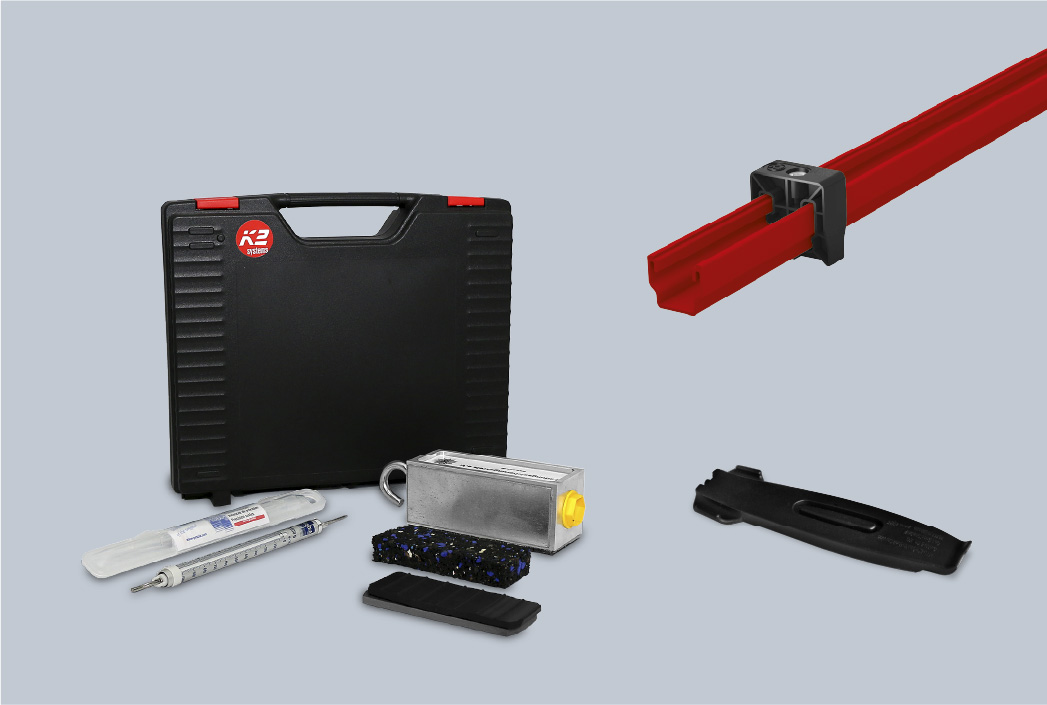

Measuring gauges, measuring devices and practical tools for the PV mounting system.
