Accessories
RidgeConnector Set
Product number:
2004844
The K2 RidgeConnector is a ridge connector set that connects two Dome 6 module blocks across a roof ridge. The connection can be made either via the BasicRail support rails of the module groups or with an additional SingleRail as a strut at right angles across the BasicRail support rails. The set thus offers a solution for all conceivable orientations of the module field of your PV project, ensuring optimum use of solar power.The RidgeConnector is compatible with all Dome 6 variants – D-Dome and S-Dome 6.You can enquire about the design of module fields with the RidgeConnector directly from us.
Dome Mat S 380
Product number:
2003126
Mat S Support Pad. Flexible function to absorb tolerances and protect the roof cover. Suitable for K2
BasicRail. Material: EPDM
Dome FlatConnector Set
Product number:
1006039
Rail connector set as connecting element between two K2
BasicRail
22. Screws included. Material: Aluminium
EN AW 5754 H111, stainless steel A2.
MultiAngle Wind brace
Product number:
2000002
Wind brace for the K2 MultiAngle system. Aluminum L-profile 30x30x3, 1.50m.
MK2 insertion nut with clip, Stainless steel
Product number:
1001643
The Fast-installation MK2 insertion nut can be put into the K2 rail everywhere. The slot nut will adjust itself in the the rail and can be readjusted to every place of the rail. Material: stainless steel 1.4301, TPC.
MK2 Slot nut with clip, Aluminum
Product number:
2000034
The Fast-installation M K2 slot nut can be put into the K2 rail everywhere*. The slot nut will adjust itself in the the rail and can be readjusted to every place of the rail. Material:
Aluminium EN AW 6063 T66, Hytrel 8238-TPC.
Hexagonal socket head cap screw M8x20
Product number:
2001729
Hexagon socket head cap screw M8x20 with serration ISO 4762. Drive size: A/F 6. Material: Stainless steel A2
Hexagonal socket head cap screw M8x55
Product number:
2002184
Hexagon socket head cap screw M8x55 with serration ISO 4762. Drive size: A/F 6. Material: Stainless steel A2
Hexagonal socket head cap screw M8x35
Product number:
2001728
Hexagon socket head cap screw M8x35 with serration ISO 4762. Drive size: A/F 6. Material: Stainless steel A2
Hexagon Flange nut with serration M8
Product number:
1000043
Hexagon flange nuts with serration M8; DIN 6923 A2 M8. The Serration prevents accidental release. Material: A2 stainless steel; Drive size:A/F 13
Self-tapping screw with sealing washer, 6x25
Product number:
1000212
Self-tapping screw 6.0x25 with monuted sealing washer(Ø16 mm). Approved for sheet steel from 0.5 mm and for aluminium from 0.8 mm. With building approval and ETA certification. Material: stainless steel A2, EPDM
Multi Monti plus SS' - concrete fastner 7,5x60
Product number:
2003293
‘Multi Monti plus’ (Heco) - screw anchor for concrete 7,5x60 hexagon head with combined washer. The certified screw anchor is driven directly into a pre-drilled hole, where it is immediately loadable. Material: carbon steel bright zinc plated, A2K
Solar Cable Manager
Product number:
2002870
Solar Cable Manager with connecting possibility for outdoor-installation. LxW: 200x4.6 mm
PVX Singlemount
Product number:
2004879
The PVX Singlemount serves as a support for cable trays (50-300 mm wide) on the flat roof. It offers a flexible, stable and user-friendly solution for your installations. Dimensions: L 168 x W 107 x H 75 mm. Material: PE and ASA. Mesh cable tray not included.
PVX Multistrap+
Product number:
2004880
The PVX Multistrap+ serves as a support for cable trays up to 300 m wide - the M8 screw for fastening is included. Furthermore, up to 2 cable conduits with a diameter of 16-31 mm can be fixed - cable ties are included. The Multistrap+ therefore offers a flexible, stable and user-friendly solution for your installations on flat roofs. Dimensions: L 168 x W 107 x H 75 mm. Material: PE and ASA. Cable duct/cable conduits not included.
PVX Multimount
Product number:
2003137
Alternative articles: 2004879 and 2004880The UV-resistant PVX Multimount provides a multifunctional cable management system for mesh tray and/or pipes on flat roofs and is made from 80% recycled plastic. Mesh tray and/or pipes are not included. Material: PE and ASA
Cable routing Performa Mesh Tray 70x100x3000
Product number:
2004054
Performa mesh tray for cable management on the flat roof in combination with the PVX Multimount or on trapezoidal sheet metal in combination withe the PVX Minimount. Dimensions (LxWxH): 3000 x 100 x 75 mm. Wire diameter: 3,9 mm. Material: steel (zinc+)
Performa Mesh Tray Connector
Product number:
2004055
Performa mesh tray connector for article 2004054. Two connectors are required per mesh tray. Dimensions (LxWxH): 86 x 30 x 10 mm. Material: spring steel (zinc)
TiltUp Vento Pin
Product number:
2004241
Pin for connecting the TiltUp Vento profiles. Material: 1.4301 (X5CrNi18-10) TS520
Dome Speed Spacer Large
Product number:
2004129
Distance tool for the K2 Dome system. Length: 2,50 m. Material: Aluminium, Acromide
Test weight for measuring the coefficient of friction
Product number:
2002620
Test weight for measuring the coefficient of friction on a roof.
PE Baseplate
Product number:
1001572
K2 Polyethylene base plate, used as base for installation of K2 solar mounting systems on flatroofs with gravel. Dimensions: 600x800 mm. Material: Polyethylene. Colour of the product may differ from the picture.
EndCap for SingleRail 36
Product number:
1004767
K2 End Cap for K2 SingleRail 36, SingleRail 36 ight and CrossRail 36. Material: glass fibre reinforced PA or PA type 6
AddOn XS
Product number:
2004629
The K2 AddOn XS mounting adapter enables grid or insert mounting without additional rails or clamps for module frame heights of 30–35 mm. Suitable for SolidRail, SingleRail, MultiRail, MiniRail, BasicRail. Exceptions: SolidRail Alpin, SolidRail Medium, SolidRail Light. Material: Aluminium EN AW 6063 T66
AddOn 30
Product number:
2001707
The K2 AddOn 30 mounting adapter enables grid or shared-rail installation without additional rails or clamps for module frame heights of 30-34 mm. Fits most K2 SolidRails, CrossRails, SingleRails and
BasicRail
. Not suitable for CrossRail 62 & 90 and SolidRail Alpin & XL. Material: glass fibre reinforced polyamide
AddOn 22/25
Product number:
1005530
The K2 AddOn 22 mounting adapter enables grid or shared-rail installation without additional rails or clamps for module frame heights of 35-50 mm. Fits all K2 SolidRails, CrossRails, SingleRails and BasicRails. Material: glass fibre reinforced polyamide
StairPlate Set
Product number:
2004057
The K2 StairPlate is the perfect solution for installing Micro Inverters and Optimizers from Solar Edge, Huawei and Enphase. With the StairPlate, these devices can be easily hooked into almost all K2 mounting rails without having to screw them directly to the roof. The units are attached to the K2 StairPlate in advance with the appropriate screws and nuts. Please note the height of the modules and the units to be used. Can only be used to a limited extent when using AddOn. Material: Stainless steel
TerraGrif QL
Product number:
2004231
Mounting accessories for establishing equipotential bonding of the K2 mounting systems or for earthing the module frames. Compatible moduleclamp: K2 Clamp 25-40.
TerraGrif K2SZ
Product number:
2001881
Mounting accessories for establishing equipotential bonding of the K2 mounting systems or for earthing the module frames. Incompatible systems:
BasicRail
(landscape mounting). Material: stainless steel 301 TA
TerraGrif PL
Product number:
2004102
The TerraGrif PL can be used for potential equalisation of the K2 MiniFive components in the K2 MiniRail MK2 system. It can also be used for potential equalisation in the InsertionRail 2.0. Material: Stainless steel (301 TA)
Lightning protection clamp 8mm Set
Product number:
2004922
Lightning protection clamp for clamping lightning protection cables with a diameter of 8 mm. Includes MK2 insert nut with mounting clip and M8x25 pan head screw.
Lightning protection clamp Alu 8mm - Double Set
Product number:
2002474
Alternative Article: 2002473Two Lightning protection clamp for clamping Ø 8mm lightning protection cables for universal use as a T, cross, parallel and impact clamp. Including allen bolt M8x40, 2x Washer 8,4 x 20 x 1,2 mm and Locking nuts M8.
Lightning protection clamp Alu 8mm - Set
Product number:
2002473
Alternative article: 2004922Lightning protection clamp for clamping Ø 8mm lightning protection cables. Including MK2 slot nut, Washer (8,4x20x1,2 mm) and stainless steel socket screw M8x30.
Climber 36/50 Set
Product number:
2003145
A cross connector for the K2 SingleRail 36 & 50 and the K2 CrossRail 36 & 48. Nuts and bolts included. Material: aluminium EN AW-6063 T66, stainless steel A2
SingleRail 36 Light; 4.80 m
Product number:
2004413
Mounting rail with side-connection and static confirmation in K2 Base. Can be used variably for different roof connections. Length: 4.80 m. Material: Aluminium EN AW-6063 T66

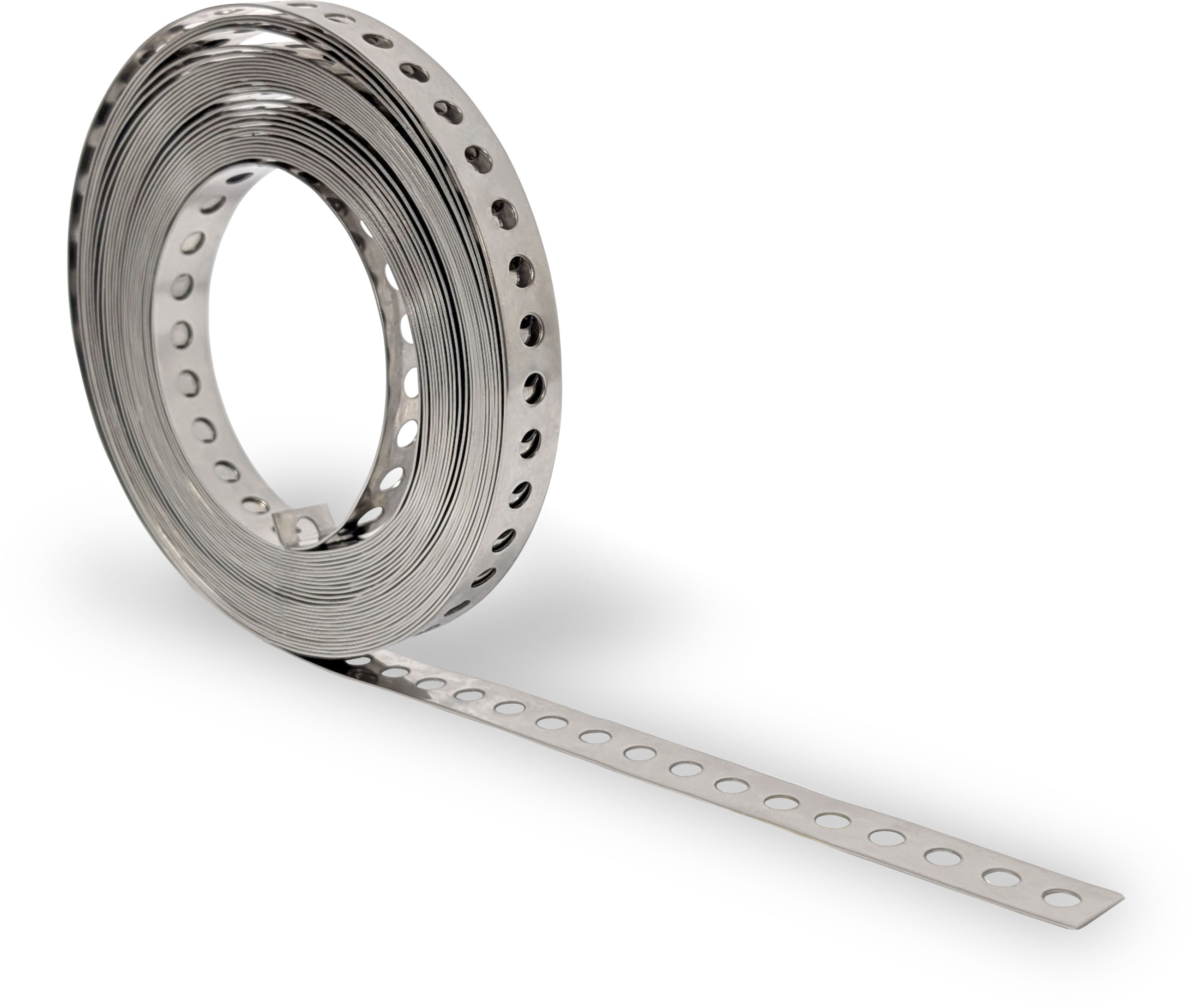

Metal perforated tie 20x0,8
Product number:
2002735
Perforated tape as wind bracing. One roll of perforated tape is 10 metres long. Material: Stainless steel A2 (1.4301)
