Module Clamps

DomeClamp EndClamp Set 30-50 New
Product number: 2004561
Module end clamp set for attaching solar modules to the K2 Dome System. Material: Aluminium EN AW 6063 T66; EN AW 6082 T6, stainless steel (1.4301).All DomeClamp assembly instructions
DomeClamp EC Black Set 30-50 Coming soon
Product number: 2004564
Universal middle clamp set for fastening solar modules on the K2 Dome 6 System. Material: Aluminium EN AW 6063 T66; EN AW 6082 T6, Stainless steel (1.4301)
K2 Clamp MC 25-40 mm
Product number: 2004146
Surface
  • Aluminium mill •2004146
  • Black anodised •2004148
Universal module middle clamp for fixing solar modules with frame heights of 25-40 mm. Not compatible with the K2 Dome 6 System.
Surface
  • Aluminium mill •2004146
  • Black anodised •2004148
K2 Clamp EC 25-40, black anodised New
Product number: 2004545
Black anodized Universal module middle clamp for fixing solar modules with frame heights of 25-40 mm. Not compatible with the K2 Dome 6 System. Material: Aluminium EN AW 6063 T66, stainless steel, Thermoplastic. Anodising may show slight signs of scratching due to packaging and transport.
Facade Clamp MC 25-40 Set, black anodised New
Product number: 2004548
K2 FacadeClamp MC for fixing solar modules with frame heights of 25-40 mm to the facade. The centre clamp can be installed in combination with the MultiRail and MultiRail CSM. Black anodised. Material: Aluminium EN AW 6063 T66, stainless steel A2, EPDM
Universal End Clamp OneEnd
Product number: 2002514
Universal module end clamp with simple "click function" for fixing solar modules with frame heights of 30-42 mm. Not compatible with the K2 Dome 6 System and K2 FlatRail, SolidRail L/ LS /XL and CrossRail 62/ 90. Material: Aluminium EN AW 6063 T66 / A2 / POM
DomeClamp End Clamp 30-50 mm DISCONTINUED
Product number: 2002559
Alternative article: 2004561Universal end clamp set for fastening solar modules on the K2 Dome 6 System. Material: Aluminium EN AW 6063 T66; EN AW 6082 T6, Stainless steel (1.4301)
DomeClamp Middle Clamp 30-50 mm
Product number: 2002558
Universal middle clamp set for fastening solar modules on the K2 Dome 6 System. Material: Aluminium EN AW 6063 T66; EN AW 6082 T6, Stainless steel (1.4301)
DomeClamp Middle Clamp 30-50 mm, black anodized
Product number: 2002609
Black anodized universal middle clamp set for fastening solar modules on the K2 Dome 6 System. Material: Anodized aluminium EN AW 6063 T66; EN AW 6082 T6, Stainless steel (1.4301). Eloxal may show slight scratches as a result of packaging and transport.
DomeClamp End Clamp 30-50 mm, black anodized Phase out item
Product number: 2002610
Alternative article: 2004564Black anodized universal end clamp set for fastening solar modules on the K2 Dome 6 System. Material: Anodized aluminium EN AW 6063 T66; EN AW 6082 T6, Stainless steel (1.4301). Eloxal may show slight scratches as a result of packaging and transport.
Laminate end clamp Click 5.0
Product number: 1002562
Surface
  • Aluminium mill •1002562
  • Black anodised •1005646
Laminate end clamp Click 5.0 approved for modules from SoliTek/ViaSolis, S-Energy, Sonnenstromfabrik / CS Wismar and for modules with a glass thickness of 5.0-6.2 mm. Length: 100 mm. Please note, one Allen bolt and MK2 are required per module clamp, these are not included in the article. Material: Aluminium EN AW 6063-T66; EPDM
Surface
  • Aluminium mill •1002562
  • Black anodised •1005646
Laminate middle clamp Click 5.0
Product number: 1002561
Surface
  • Aluminium mill •1002561
  • Black anodised •1005645
Laminate middle clamp Click 5.0 approved for modules from SoliTek/ViaSolis, S-Energy, Sonnenstromfabrik / CS Wismar and for modules with a glass thickness of 5.0-6.2 mm. Length: 100 mm. Please note, one Allen bolt and MK2 are required per module clamp, these are not included in the article. Material: Aluminium EN AW 6063-T66; EPDM
Surface
  • Aluminium mill •1002561
  • Black anodised •1005645
Module laminat End Clamp Click 6.8
Product number: 1000668
Module end clamp for fastening laminate modules, approved for modules from First Solar, Calyxo, MiaSolé and for modules with a glass thickness of 6.8 - 8.0 mm. Please note, one Allen bolt and MK2 are required per module clamp, these are not included in the article. Material: Aluminium press finished, EPDM
Module laminat Middle Clamp Click 6.8
Product number: 1000667
Module middle clamp for fastening laminate modules, approved for modules from First Solar, Calyxo, MiaSolé and for modules with a glass thickness of 6.8 - 8.0 mm. Please note, one Allen bolt and MK2 are required per module clamp, these are not included in the article. Material: Aluminium press finished, EPDM
SlideGuard
Product number: 1005828
Slide guard for additional use in vertical assembly of laminated modules with glass thickness of 6 - 9 mm. Material: stainless steel 1.4016, EPDM
XS Middle Clamp Coming soon
Product number: 2004609
Module frame height [mm]
  • 30 •2004609
  • 33-35 •2004610
Module centre clamps XS Set for fixing solar modules with frame heights of 30 mm. Not compatible with the K2 Dome 6 system. Material: Aluminium EN AW 6063 T66, stainless steel, TPE/PA
Module frame height [mm]
  • 30 •2004609
  • 33-35 •2004610
XS Middle Clamp, black anodized New
Product number: 2004619
Module frame height [mm]
  • 30 •2004619
  • 33-35 •2004620
Black anodised module centre clamps XS Set for fixing solar modules with frame heights of 30 mm. Not compatible with the K2 Dome 6 system. Material: Aluminium EN AW 6063 T66, stainless steel, TPE/PA. Anodising may show slight signs of scratching due to packaging and transport.
Module frame height [mm]
  • 30 •2004619
  • 33-35 •2004620
XS End Clamp Coming soon
Product number: 2004611
Module frame height [mm]
  • 30 •2004611
  • 33 •2004778
  • 35 •2004612
Module end clamp set for fixing solar modules with frame heights of 30 mm. Not compatible with the K2 Dome 6 system. Material: Aluminium EN AW 6063 T66, Stainless steel, TPE/PA.
Module frame height [mm]
  • 30 •2004611
  • 33 •2004778
  • 35 •2004612
XS End Clamp, black anodized Coming soon
Product number: 2004621
Module frame height [mm]
  • 30 •2004621
  • 33 •2004779
  • 35 •2004622
Black anodised module end clamp set for fixing solar modules with frame heights of 30 mm. Not compatible with the K2 Dome 6 system. Material: Aluminium EN AW 6063 T66, stainless steel, TPE/PA. Anodising may show slight signs of scratching due to packaging and transport.
Module frame height [mm]
  • 30 •2004621
  • 33 •2004779
  • 35 •2004622
End Clamp Phase out item
Product number: 1005345
Module frame height [mm]
  • 30-31 •1005345
  • 32-33 •1005344
  • 34-36 •1005169
  • 37-38 •1005290
Module end clamp set for fixing solar modules with frame heights 30-31 mm. Not compatible with the K2 Dome 6 System. Material: Aluminium EN AW-6063 T66, stainless steel A2, PA
Module frame height [mm]
  • 30-31 •1005345
  • 32-33 •1005344
  • 34-36 •1005169
  • 37-38 •1005290
K2 Clamp EC 30-40, Hybrid DISCONTINUED
Product number: 2003451
Surface
  • Aluminium mill •2003451
  • Black anodised •2003452
Alternativartikel: 2002514Universal Modulendklemme zum Fixieren von Solarmodulen mit Rahmenhöhen 30-40 mm. Nicht kompatibel mit dem K2 Dome 6 System. Material: Aluminium EN AW 6063 T66, Badamid B70, Edelstahl A2
Surface
  • Aluminium mill •2003451
  • Black anodised •2003452
End Clamp Set, black anodized Phase out item
Product number: 1005295
Module frame height [mm]
  • 30-31 •1005347
  • 32-33 •1005346
  • 34-36 •1005268
  • 42-44 •1005295
Black anodized module end clamp set for fixing solar modules with frame heights 42-44 mm. Not compatible with the K2 Dome 6 System. Material: Anodized aluminium EN AW-6063 T66, stainless steel A2, PA. Eloxal may show slight scratches as a result of packaging and transport.
Module frame height [mm]
  • 30-31 •1005347
  • 32-33 •1005346
  • 34-36 •1005268
  • 42-44 •1005295
Universal Middle Clamp OneMid 30-42 mm, black anodized DISCONTINUED
Product number: 2003072
Alternative article: 2004148Black anodized universal middle clamp with simple "click function" for fixing solar modules with frame heights of 30-42 mm. Not compatible with the K2 Dome 6 System and K2 FlatRail, SolidRail L/ LS /XL and CrossRail 62/ 90. Material: Anodized aluminium EN AW 6063 T66 / EN AW 6082 T6 / A2 / POM. Eloxal may show slight scratches as a result of packaging and transport.
XS Middle Clamp, black anodized Phase out item
Product number: 1005157
Module frame height [mm]
  • 30-33 •1005157
  • 34-38 •1005158
  • 39-44 •1005159
Black anodized module middle clamp XS set for fixing solar modules with frame heights 30-33 mm. Not compatible with the K2 Dome 6 System. Material: Anodized aluminium EN AW-6063 T66, stainless steel A2, PA.
Module frame height [mm]
  • 30-33 •1005157
  • 34-38 •1005158
  • 39-44 •1005159
Universal End Clamp OneEnd, black anodized Phase out item
Product number: 2002589
Alternative article: 2004545Black anodized universal module end clamp with simple "click function" for fixing solar modules with frame heights of 30-42 mm. Not compatible with the K2 Dome 6 System and K2 FlatRail, SolidRail L/ LS /XL and CrossRail 62/ 90. Material: Aluminium EN AW 6063 T66 / A2 / POM. Eloxal may show slight scratches as a result of packaging and transport.
Universal Middle Clamp OneMid 30-42 mm DISCONTINUED
Product number: 2003071
Alternative article: 2004146Universal module middle clamp with simple "click function" for fixing solar modules with frame heights of 30-42 mm. Not compatible with the K2 Dome 6 System and K2 FlatRail, SolidRail L/ LS /XL and CrossRail 62/ 90. Material: Aluminium EN AW 6063 T66 / EN AW 6082 T6 / A2 / POM
XS Middle Clamp Phase out item
Product number: 1005156
Module frame height [mm]
  • 30-33 •1005156
  • 34-38 •1003586
  • 39-44 •1004908
Module middle clamp XS set for fixing solar modules with frame heights 30-33 mm. Not compatible with the K2 Dome 6 system. Material: Aluminium EN AW-6063 T66, stainless steel A2, PA
Module frame height [mm]
  • 30-33 •1005156
  • 34-38 •1003586
  • 39-44 •1004908

Module Clamps

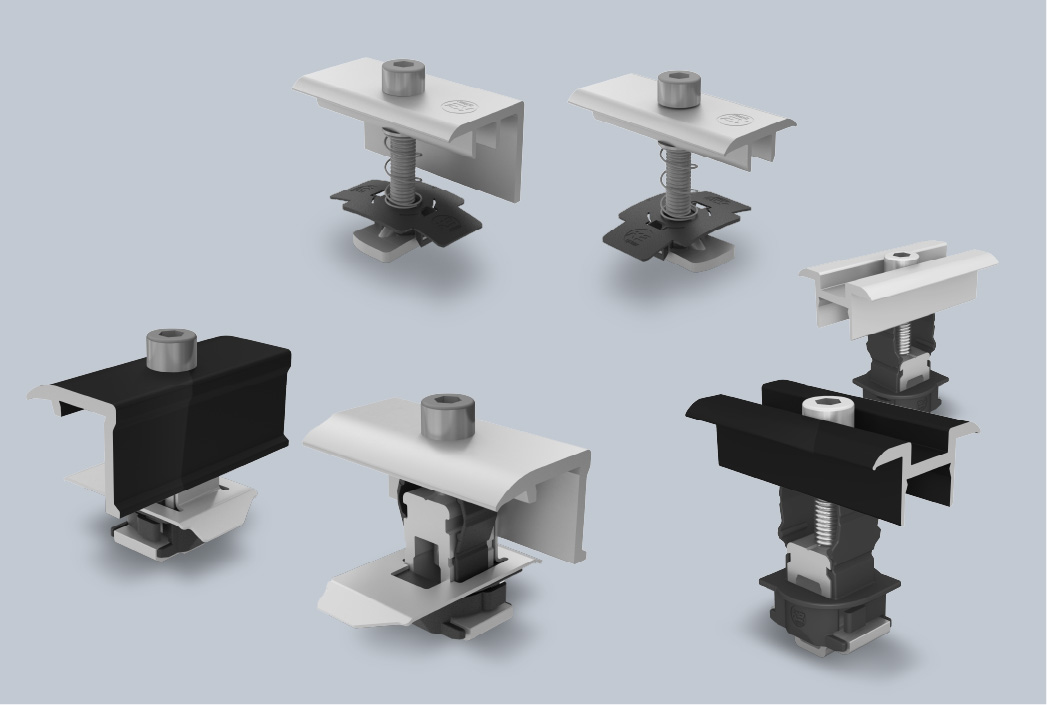

Module end clamps and module middle clamps as universal clamps, XS version or laminate clamps.
