K2 Dome 6 System
Pre-assembled basic rail set for the S-Dome 6.15 system for module widths of 1061-1170 mm. Includes
BasicRail
, Dome SD, EndPlate and Mat S. Material: Aluminium, EPDM, stainless steel
Pre-assembled basic rail set for the D-Dome 6.10 system for module widths of 1061-1170 mm. Includes
BasicRail
2.48 m, Dome SD, MidPlate and Mat S. Material: Aluminium, EPDM, stainless steel
Pre-assembled basic rail set for the S-Dome 6.10 system for module widths of 1061-1170 mm. Includes
BasicRail
1.50 m, Dome SD, EndPlate and Mat S. Material: Aluminium, EPDM, stainless steel
Quick mounting rail with static confirmation in K2 Base. For mounting with BasicClip on a trapezoidal sheet metal roof or as base rail for the K2 Dome System. Length: 5.95 m. Material: Aluminium EN AW-6063 T66
Mat S Support Pad. Flexible function to absorb tolerances and protect the roof cover. Suitable for K2
BasicRail. Material: EPDM
Rail connector set as connecting element between two K2 Dome 6 Base Set. Including accessories and equipotential bonding. Material: Aluminium, stainless steel
Rail connector set as connecting element between two K2
BasicRail
22 or FlatRail. screw included. Material: Aluminium EN AW-6063 T66, stainless steel A2.
Front module support element for the Dome 6.10 system. Material: aluminium
Front module support element for the Dome 6.15 system. Material: aluminium
Component for the module elevation of the Dome 6.10 system. The peak can either be clicked into the pre-assembled base plate or fixed directly to the
BasicRail
with a socket head bolt and MK2. Material: Aluminium EN AW-6063 T66
Bauteil für die Modul-Aufständerung des Dome 6.15 Systems. Material: Aluminium EN AW-6063 T66
Universal end clamp set for fastening solar modules on the K2 Dome 6 System. Material: Aluminium EN AW 6063 T66; EN AW 6082 T6, Stainless steel (1.4301)
Mounting accessories for DomeClamp Moduleclamp establishing equipotential bonding of the K2 Dome 6 mounting system or for earthing the module frames.
Black anodized universal middle clamp set for fastening solar modules on the K2 Dome 6 System incl. TerraGrif K2MI Duo. Material: Anodized aluminium EN AW 6063 T66; EN AW 6082 T6, Stainless steel (1.4301)
Universal middle clamp set for fastening solar modules on the K2 Dome 6 System. Material: Aluminium EN AW 6063 T66; EN AW 6082 T6, Stainless steel (1.4301)

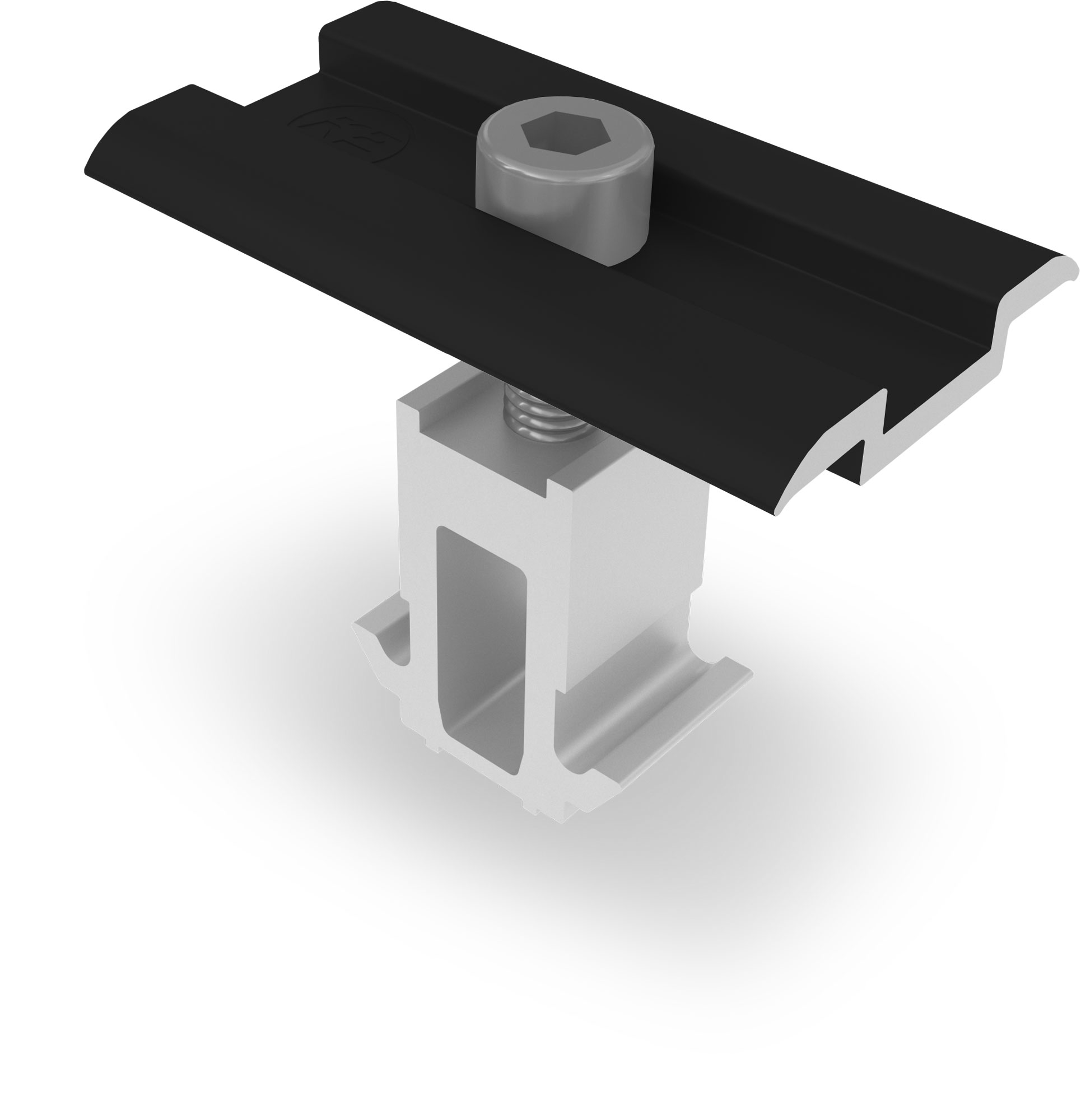

Black anodized universal middle clamp set for fastening solar modules on the K2 Dome 6 System. Material: Anodized aluminium EN AW 6063 T66; EN AW 6082 T6, Stainless steel (1.4301). Eloxal may show slight scratches as a result of packaging and transport.
Black anodized universal end clamp set for fastening solar modules on the K2 Dome 6 System. Material: Anodized aluminium EN AW 6063 T66; EN AW 6082 T6, Stainless steel (1.4301). Eloxal may show slight scratches as a result of packaging and transport.
K2 Windbreaker (deflector) for wind deflection on the reverse side of the K2 S-Dome 6.15 System. Suitable for module lengths 1799 mm - 2150 mm. Material: Steel with Magnelis ZM310 coating
K2 Windbreaker to deflect wind on the backs of the K2 S-Dome 6.15 Classic LS system. Suitable for module dimensions from 1562 - 2390 mm. Material: Magnelis 1.0242 (S250GD+ZM310)
K2 Windbreaker to deflect wind on the backs of the K2 S-Dome 6.10 Classic LS system. Suitable for module dimensions from 1562 - 2390 mm. Material: Magnelis 1.0242 (S250GD+ZM310)
K2 Windbreaker (deflector) for wind deflection on the reverse side of the K2 S-Dome 6.10 System. Suitable for module dimensions from 2045 mm - 2398 mm. Material: Steel with Magnelis ZM310 coating
Ballast tray for a fast and universal bearing of different ballasts slabs for the K2 Dome Zero System and K2 Dome 6 Classic LS System. The Porter can be used for module widths up to 1320 mm for the Dome Zero System and for module lengths from 1562 to 2390 mm for the Dome 6 Classic LS System. Total length Porter: 1365 mm; Maximum permissible ballast: 178 kg. Material: aluminum EN AW 6063 T66
Ballast tray for a fast and universal bearing of different ballasts slabs. Used for K2 Dome 6 systems. Suitable for module lengths from 2048– 2405 mm. Total length Porter: 2450 mm; Maximum permissible ballast: 148 kg. Material: Aluminium EN AW 6063 T66
For ballast mounting for the K2 Dome 6 Classic flat roof system. Place two SpeedPorters at a distance from each other, depending on the size of the bricks, on the
BasicRail and place ballast (up to approx. 40 kg) on them. Material: aluminium
The Fast-installation M K2 slot nut can be put into the K2 rail everywhere*. The slot nut will adjust itself in the the rail and can be readjusted to every place of the rail. Material: Aluminium, PA. * excluding MiniRail, MicroRail, Dome 6 and Dome V Peak
The Fast-installation MK2 insertion nut can be put into the K2 rail everywhere. The slot nut will adjust itself in the the rail and can be readjusted to every place of the rail. Material: stainless steel 1.4301, PA.
Hexagon socket head cap screw M8x20 with serration ISO 4762. Drive size: A/F 6. Material: Stainless steel A2
Thread-tapping screw 4.8x20 mm for S-Dome 6 Windbreaker mounting.
Solar Cable Manager with connecting possibility for outdoor-installation. LxW: 200x4.6 mm
The UV-resistant PVX Multimount provides a multifunctional cable management system for mesh tray and/or pipes on flat roofs and is made from 80% recycled plastic. Mesh tray and/or pipes are not included. Material: PE and ASA
Performa mesh tray for cable management on the flat roof. Compatible with the PVX Multimount (2003137). Dimensions (LxWxH): 3000 x 100 x 75 mm. Wire diameter: 3,9 mm. Material: steel (zinc+)
Performa mesh tray connector for article 2004054. Two connectors are required per mesh tray. Dimensions (LxWxH): 86 x 30 x 10 mm. Material: spring steel (zinc)
Fixing accessories for mounting the K2 Dome 6 system on roofs ≥ 3° on a mounting foot. Depending on the mounting foot, a climber M10 or M12 and an adapter plate are required separately. Suitable for module lengths 1617 - 2392 mm. Material: aluminium, stainless steel, PA
Fixing accessories for mounting the K2 Dome 6 system on roofs ≥ 3° on a mounting foot. Depending on the mounting foot, a climber M10 or M12 and an adapter plate are required separately. Suitable for module lengths 828 - 1325 mm. Material: aluminium, stainless steel, PA
Adapter plate for M10 hanger bolts in combination with the Climber M10 or as accessory part for the article Dome FixPro. Dimensions: 50x90. Material: aluminium
K2 Climber with slotted hole for fixing the K2 SingleRail or CrossRail mounting rail to the M12 hanger bolt or as a connecting element between the flat roof mounting foot and the Dome FixPro. Material: Aluminium EN AW-6063 T66
Distance tool for the K2 Dome system. Length: 2,50 m. Material: Aluminium, Acromide
Test weight for measuring the coefficient of friction on a roof.
K2 Polyethylene base plate, used as base for installation of K2 solar mounting systems on flatroofs with gravel. Dimensions: 600x800 mm. Material: Polyethylene
The K2 StairPlate is the perfect solution for installing Micro Inverters and Optimizers from Solar Edge, Huawei and Enphase. With the StairPlate, these devices can be easily hooked into almost all K2 mounting rails without having to screw them directly to the roof. The units are attached to the K2 StairPlate in advance with the appropriate screws and nuts. Please note the height of the modules and the units to be used. Can only be used to a limited extent when using AddOn. Material: Stainless steel
Lightning protection clamp for clamping Ø 8mm lightning protection cables. Including MK2 slot nut, Washer (8,4x20x1,2 mm) and stainless steel socket screw M8x30.
Two Lightning protection clamp for clamping Ø 8mm lightning protection cables for universal use as a T, cross, parallel and impact clamp. Including allen bolt M8x40, 2x Washer 8,4 x 20 x 1,2 mm and Locking nuts M8.
A cross connector for the K2 SingleRail 36 & 50 and the K2 CrossRail 36 & 48. Nuts and bolts included. Material: aluminium EN AW-6063 T66, stainless steel A2
Mounting rail with side-connection and static confirmation in K2 Base. Can be used variably for different roof connections. Length: 4.80 m. Material: Aluminium EN AW-6063 T66
Alternative item: 2004413Mounting rail with side-connection and static confirmation in K2 Base. Can be used variably for different roof connections. Length: 4,40 m. Material: Aluminium EN AW-6063 T66
Alternative item: 2004278Quick mounting rail with static confirmation in K2 Base. For mounting with BasicClip on a trapezoidal sheet metal roof or as base rail for the K2 Dome System. Length: 4.40 m. Material: Aluminium EN AW-6063 T66
Alternative item: 2004413Mounting rail with side-connection and static confirmation in K2 Base. Can be used variably for different roof connections. Length: 5,95 m. Material: Aluminium EN AW-6063 T66
K2 Dome 6 System
Solutions for all roof coverings. Clearly ballast-optimised system based on the latest wind tunnel standards.
- Flat roof all-rounder - solutions for all roof coverings
- Clearly ballast-optimised system based on the latest wind tunnel standards
- Secure anchoring with fixed connection for roofs < 10° and low load reserves
- Component-optimised system
K2 Dome 6 System
System variant
- 4 assembly steps for super-fast installation
- Time-saving alignment of the rails with the Dome Speed Spacer gauge
- Snap-in system for peaks and tool-free rail connectors
- Flexible row spacing
- Suitable for foil, bitumen, gravel and green roofs
- Suitable for additional elevation on trapezoidal sheeting
- For mounting on the long module side
- For module sizes up to 2390 × 1170 mm
- Based on Dome 6 Classic
K2 Dome 6 System
Technical data
| D-Dome 6.10 | S-Dome 6.10 | |
|---|---|---|
| Scope of application | Flat roofs < 10° with single ply membrane or bituminous roof covering, also on concrete, gravelled or green roofs | Flat roofs < 10° with single ply membrane or bituminous roof covering, also on concrete, gravelled or green roofs |
| Fastening type/roof fixture |
|
|
| Requirements |
|
|
| Technical specifications Base rail |
|
|
| Technical specifications Module row |
|
|
| Minimum distance to the edge of the roof | 600mm | 600mm |
| Inclination angle | 10° | 10° |
| Material |
|
|
Side views
K2 Dome 6 System
Downloads
K2 Dome 6 System
Videos
Webinar (DE 14.04.2020)
Erdung, Potentialausgleich und Blitzschutz für Photovoltaik-Anlagen einfach erklärt
K2 Dome 6 System
K2 Base: Easy, fast and safe planning
Quick and easy planning in five steps of K2 mounting systems for pitched and flat roofs. Our free planning tool K2 Base has a dashboard for efficient project management. Google Maps integration and graphic drawing tools support you in planning and make it easier.
