Dome SpeedPorter
Product number:
2002300
GTIN:
4251786208623
Product information

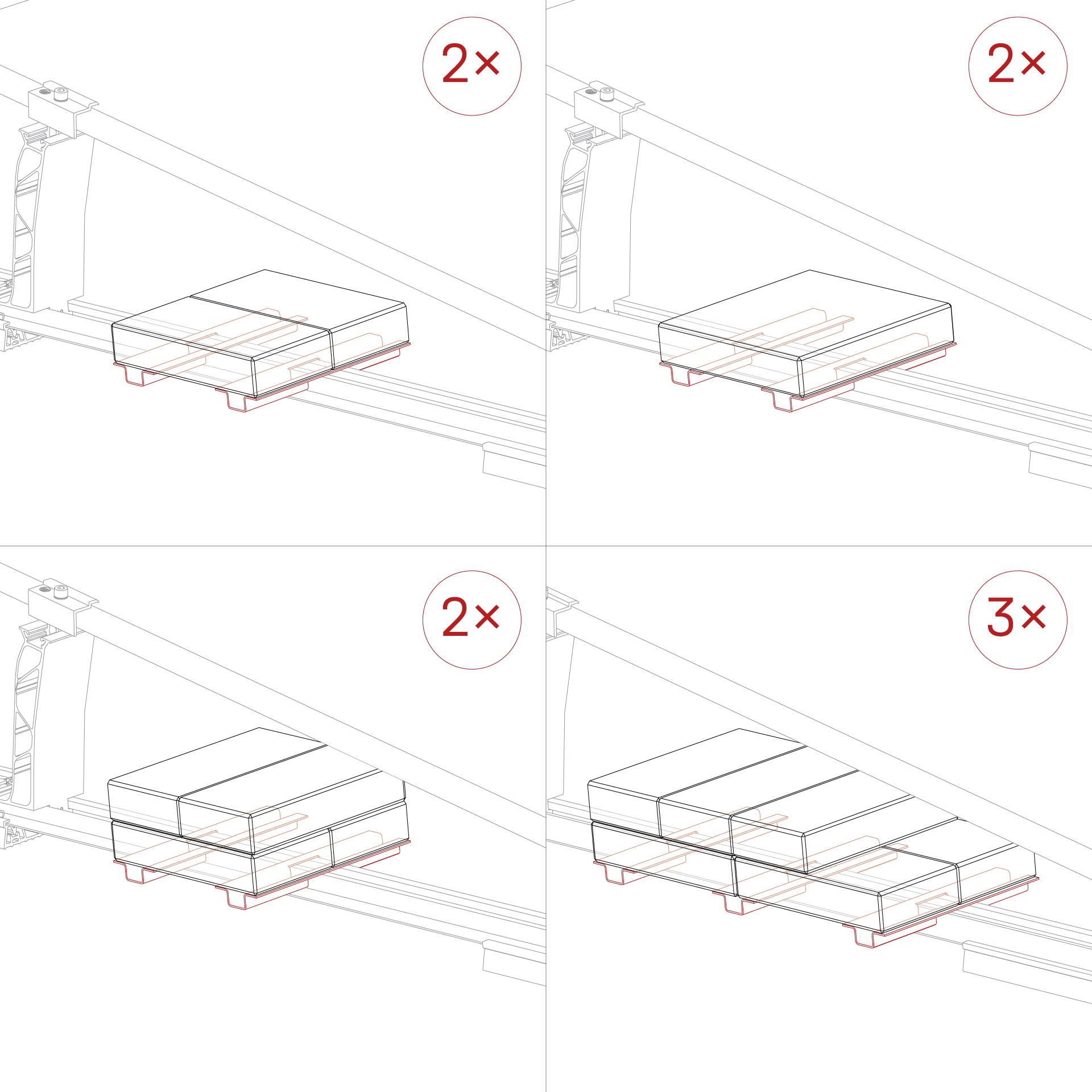

For ballast mounting for the K2 Dome 6 Classic flat roof system. Place two SpeedPorters at a distance from each other, depending on the size of the bricks, on the
BasicRail and place ballast (up to approx. 40 kg) on them. Material: aluminium
| Dimensions [mm]: | 200x80x15 |
|---|---|
| Maximum allowable ballast [kg]: | 40 |
| Module length [mm]: | Independent |
| Mounting systems: | K2 Dome 6 System, K2 Dome Zero System |
| Scope of application: | Flat roof |
| Component type: | Ballasting |
| Material: | Aluminium EN AW 5754 H111 |
| Sales unit: | 10 Piece |
| Packaging type: |
10 / Bag 250 / Box 4.000 / Pallet |
| Weight: | 0.058 Kg |
| Customs tariff number: | 76109090 |
Downloads
| Technical Datasheet : | Login to see details |
|---|---|
| Assembly instructions - D-Dome 6 Xpress + Classic: | CS DE EN ES FR HU IT JA NL PL RO SL |
| Assembly instructions - D-Dome 6 Classic LS: | DE EN JA 4 RO SL |
| Assembly instructions - S-Dome 6 Xpress: | DE EN ES FR HU IT PL RO SL |
| Assembly instructions - S-Dome 6 Classic: | DE EN ES FR HU PL RO SL |
| Assembly instructions - S-Dome 6 Classic LS: | DE EN ES FR HU IT JA PL RO SL |
| Assembly instructions - Dome Zero: | DE EN |
