K2 GreenRoof 2.0 System
SingleRail 36
Product number:
2004260
Mounting rail with side-connection and static confirmation in K2 Base. Can be used variably for different roof connections. Length: 5.95 m. Material: Aluminium EN AW-6063 T66
BasicRail 22
Product number:
2004279
Quick mounting rail with static confirmation in K2 Base. For mounting with BasicClip on a trapezoidal sheet metal roof or as base rail for the K2 Dome System. Length: 5.95 m. Material: Aluminium EN AW-6063 T66

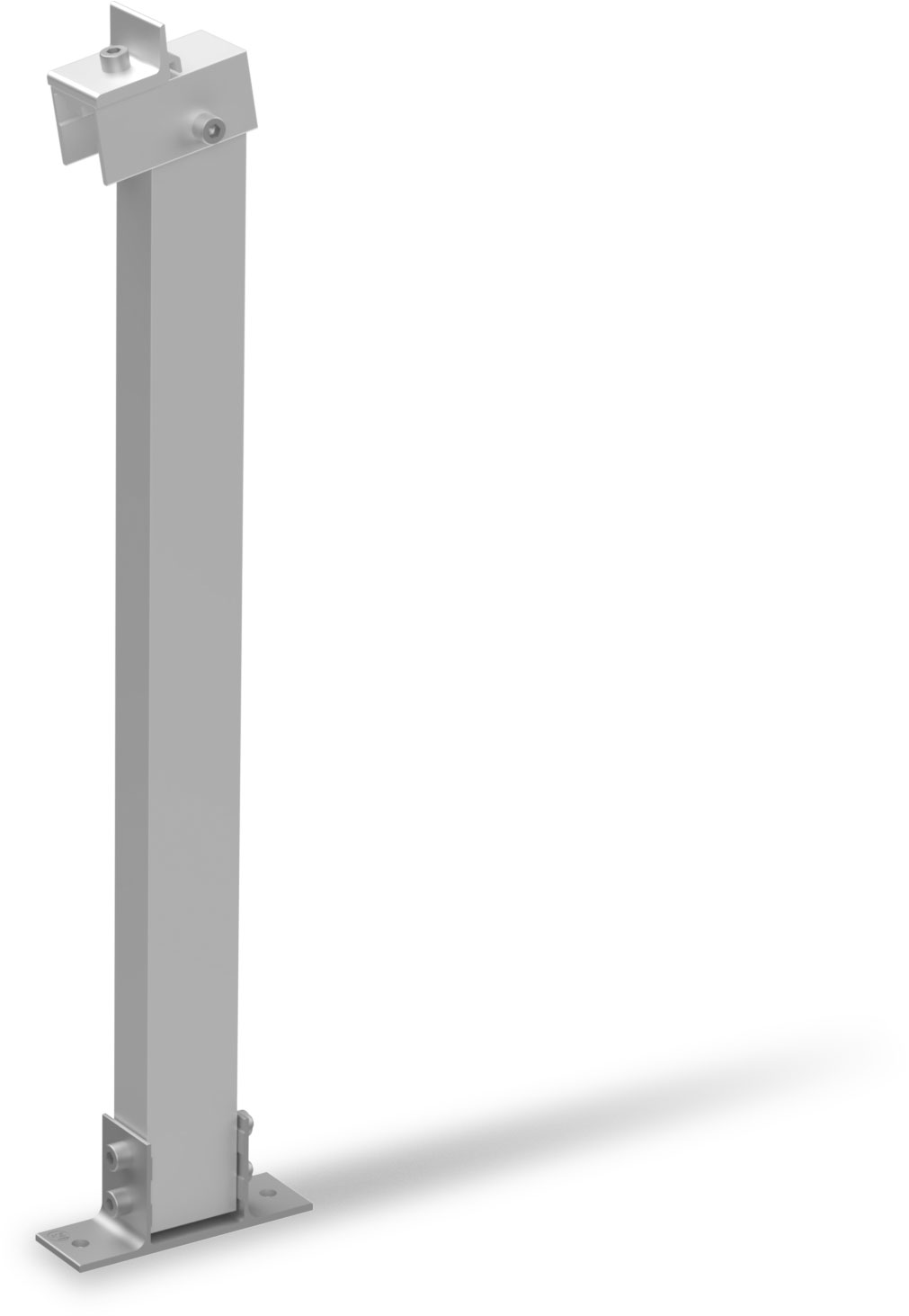

GreenRoof 2.0 Support 576
Product number:
2005170
Pre-assembled support bracket for the GreenRoof 2.0 with a 10° angle of inclination, suitable for all installation options. Includes Climber connection for the K2 SingleRails. Attaches to the K2 BasicRail (not included) using 2x MK2 and M8x20 cylinder head screws at the centre.

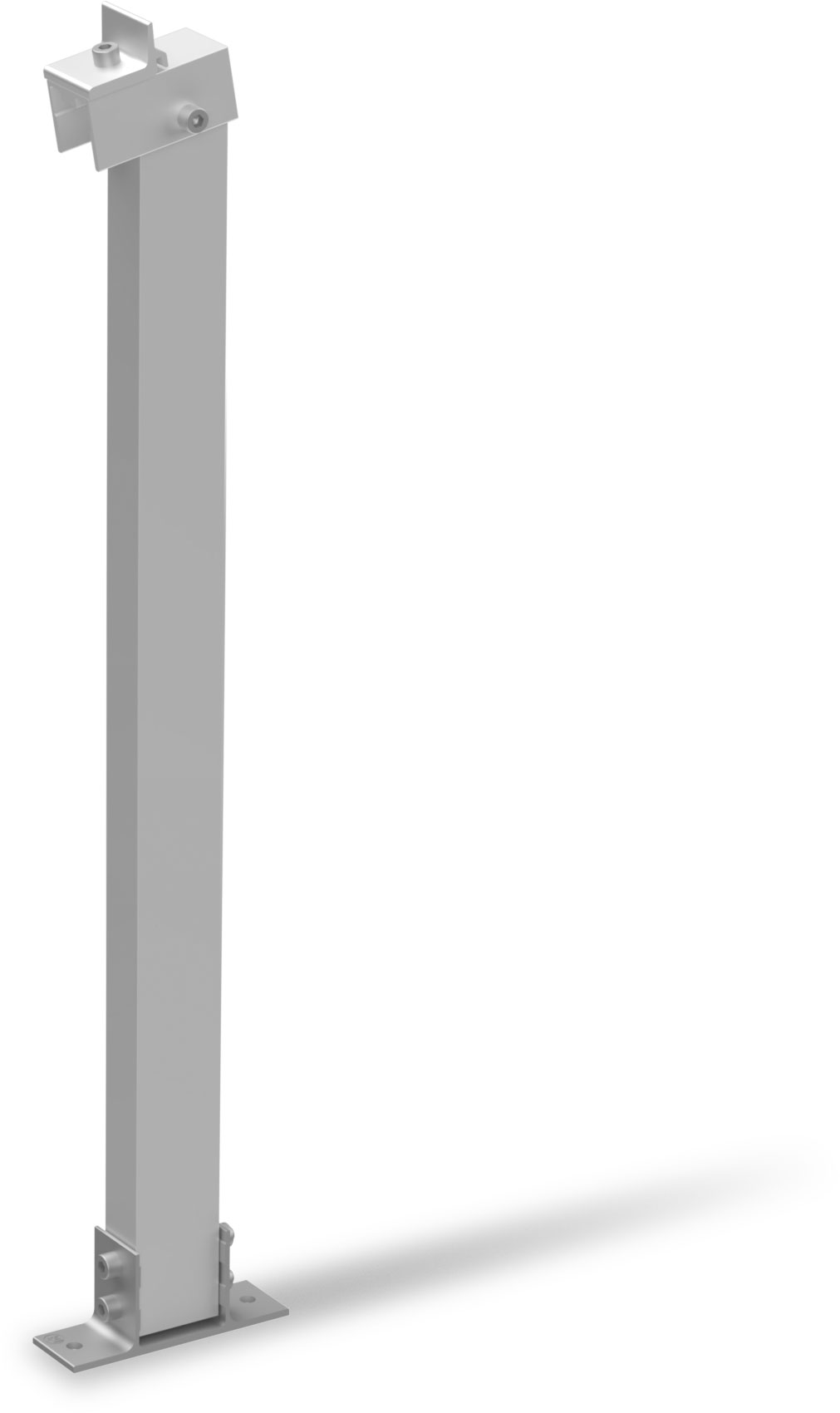

GreenRoof 2.0 Support 674
Product number:
2005171
Pre-assembled support bracket for the GreenRoof 2.0 with a 15° angle of inclination, suitable for all installation options. Includes Climber connection for the K2 SingleRails. Attaches via 2x MK2 and M8x20 cylinder head screws to the K2 BasicRail (not included).

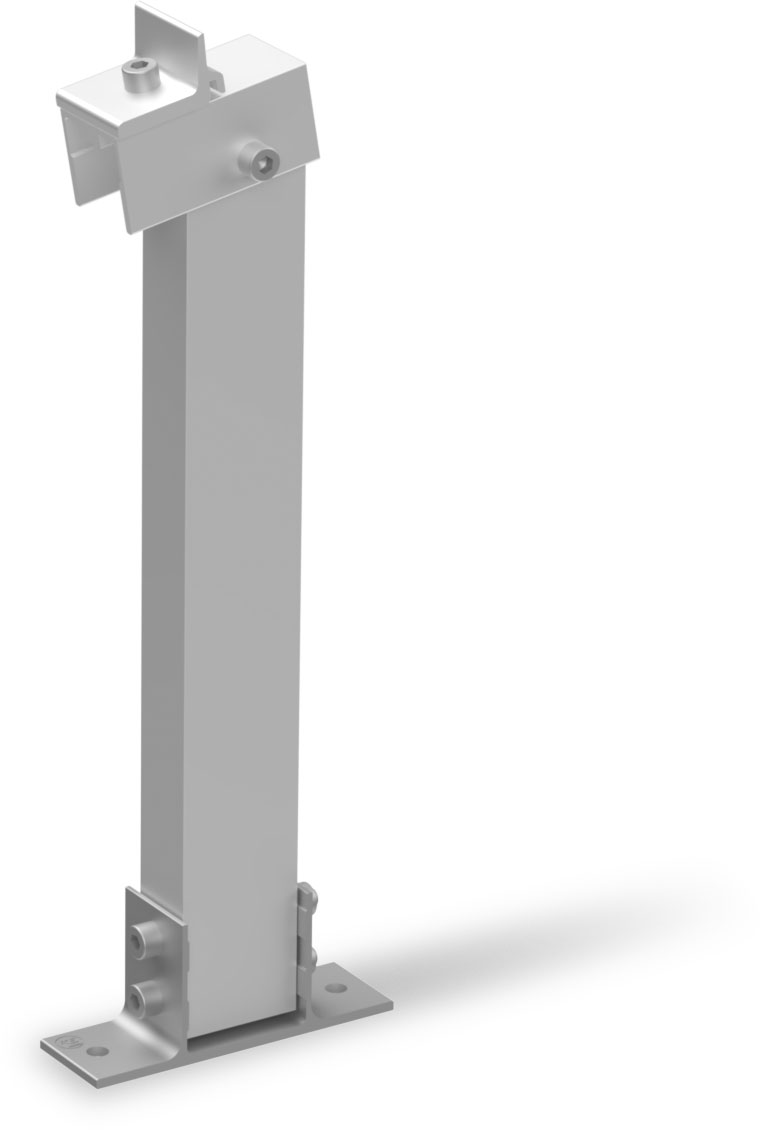

GreenRoof 2.0 Support 376
Product number:
2005169
Pre-assembled support bracket for the GreenRoof 2.0 system, available for angles of 10° and 15° and all mounting configurations. Includes Climber connection for the K2 SingleRails. Attaches to the K2 BasicRail (not included) using 2x MK2 and M8x20 cylinder head screws.
SingleRail 50; 4.80 m
Product number:
2004414
Mounting rail with side-connection and static confirmation in K2 Base. Can be used variably for different roof connections. Length: 4.80 m. Material: Aluminium EN AW-6063 T66
Dome FlatConnector Set
Product number:
1006039
Rail connector set as connecting element between two K2
BasicRail
22. Screws included. Material: Aluminium
EN AW 5754 H111, stainless steel A2.
K2 Clamp MC 25-40 mm
Product number:
2004146
Universal module middle clamp for fixing solar modules with frame heights of 25-40 mm. Not compatible with the K2 Dome 6 System.
K2 Clamp EC 25-40, black anodised
Product number:
2004545
Black anodized Universal module middle clamp for fixing solar modules with frame heights of 25-40 mm. Not compatible with the K2 Dome 6 System. Material: Aluminium EN AW 6063 T66, stainless steel, Thermoplastic. Anodising may show slight signs of scratching due to packaging and transport.
K2 Clamp EC 25-40
Product number:
2004543
Universal module end clamp for fixing solar modules with frame heights of 25-40 mm. Not compatible with the K2 Dome 6 System. Material: Aluminium EN AW 6063 T66, Stainless steel, Thermoplastic.
MK2 insertion nut with clip, Stainless steel
Product number:
1001643
The Fast-installation MK2 insertion nut can be put into the K2 rail everywhere. The slot nut will adjust itself in the the rail and can be readjusted to every place of the rail. Material: stainless steel 1.4301, TPC.
Hexagonal socket head cap screw M8x20
Product number:
2001729
Hexagon socket head cap screw M8x20 with serration ISO 4762. Drive size: A/F 6. Material: Stainless steel A2
PE Baseplate
Product number:
1001572
K2 Polyethylene base plate, used as base for installation of K2 solar mounting systems on flatroofs with gravel. Dimensions: 600x800 mm. Material: Polyethylene. Colour of the product may differ from the picture.
Self-tapping screw with sealing washer, 6x25
Product number:
1000212
Self-drilling hexagonal sheet metal screw with sealing washer (Ø16 mm) 6.0x25 mm. Approved for sheet steel from 0.5 mm and for aluminium from 0.8 mm. With ETA certification. Material: A2 stainless steel, EPDM
SingleRail 50 EndCap
Product number:
2004911
K2 EndCap for closing off the K2 SingleRail 50. Material: PA Type 6
EndCap for SingleRail 36
Product number:
1004767
K2 End Cap for K2 SingleRail 36, SingleRail 36 ight and CrossRail 36. Material: glass fibre reinforced PA or PA type 6
TerraGrif QL
Product number:
2004231
Mounting accessories for establishing equipotential bonding of the K2 mounting systems or for earthing the module frames. Compatible moduleclamp: K2 Clamp 25-40.

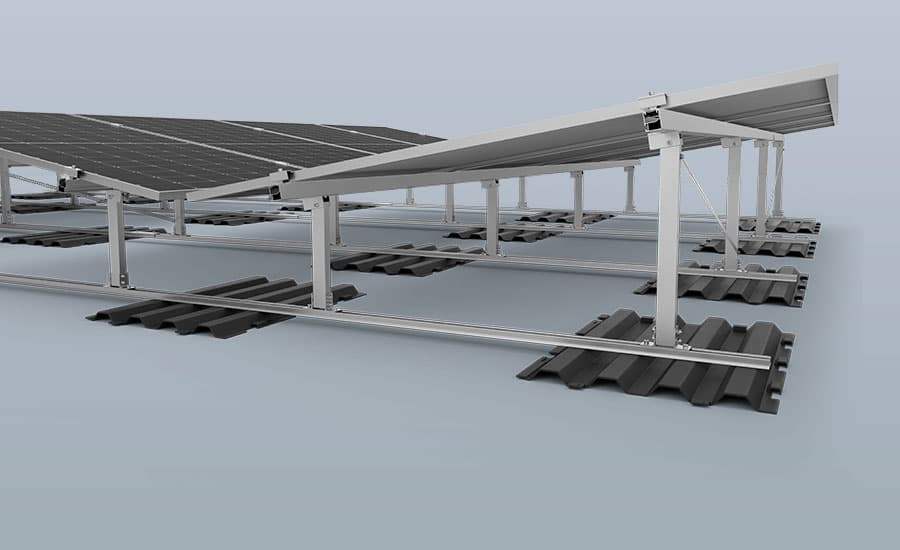

K2 GreenRoof 2.0 System
- System-optimised: reduced number of components, faster installation
- Flexible module arrangement and orientation: portrait/landscape, A-frame, V-frame or S-frame
- Module tilt angle 10°/15°
- Row spacing freely selectable
- Suitable for all standard modules
- LS clamping system for maximum safety
K2 GreenRoof 2.0 System
K2 GreenRoof 2.0 System
| GreenRoof 2.0 System | |
|---|---|
| Scope of application | Flat roofs with vegetation or gravel |
| Configurations | Modules in portrait or landscape elevated at 10° or 15° |
| Module dimensions (lxwxh) |
|
| Materials |
|
| Surface | Blank aluminium |
K2 GreenRoof 2.0 System
Downloads
K2 GreenRoof 2.0 System
Videos
K2 GreenRoof 2.0 System
K2 Base: Easy, fast and safe planning
Quick and easy planning in five steps of K2 mounting systems for pitched and flat roofs. Our free planning tool K2 Base has a dashboard for efficient project management. Google Maps integration and graphic drawing tools support you in planning and make it easier.
