Mounting Rails and Sets
SingleRail 36
Product number:
2004260
Mounting rail with side-connection and static confirmation in K2 Base. Can be used variably for different roof connections. Length: 5.95 m. Material: Aluminium EN AW-6063 T66
D-Dome 6.15 Base Set
Product number:
2004500
Pre-assembled base rail set for the D-Dome 6.15 system for module widths of 960-1170 mm. Including BasicRail 2.48 m, 2 x Dome 6.15 SD, 2 x Dome 6 EndPlate, 3 x Dome Mat S. Material: aluminium, EPDM, stainless steel
BasicRail 22
Product number:
2004279
Quick mounting rail with static confirmation in K2 Base. For mounting with BasicClip on a trapezoidal sheet metal roof or as base rail for the K2 Dome System. Length: 5.95 m. Material: Aluminium EN AW-6063 T66
D-Dome 6.10 Base Set
Product number:
2003620
Pre-assembled basic rail set for the D-Dome 6.10 system for module widths of 960-1170 mm. Including BasicRail 2.48 m, 2 x Dome 6.10 SD, 2 x Dome 6 EndPlate, 3 x Dome Mat S. Material: aluminium, EPDM, stainless steel
S-Dome 6.10 Base Set
Product number:
2003621
Pre-assembled base rail set for the S-Dome 6.10 system for module widths of 960-1170 mm. Including BasicRail 1.50 m, 1 x Dome 6.10 SD, 1 x Dome 6 EndPlate and 2 x Dome Mat S. Material: aluminium, EPDM, stainless steel
S-Dome 6.15 Base Set
Product number:
2004501
Pre-assembled base rail set for the S-Dome 6.15 system for module widths of 960-1170 mm. Including BasicRail 1.82 m, 1 x Dome 6.15 SD, 1 x Dome 6 EndPlate, 3 x Dome Mat S. Material: aluminium, EPDM, stainless steel
D-Dome 6.10 Base Set LS
Product number:
2004714
Pre-assembled base rail set for the D-Dome 6.10 LS system for module widths of 1134 mm. Including BasicRail 2.65 m, Dome 6.10 SD LS, Dome 6.10 MidPlate LS and Dome Mat S 380. Material: aluminium EN AW 6063 T66, EPDM Shore A 70, stainless steel
S-Dome 6.15 Base Set L
Product number:
2004176
Follow-up article: 2004501Pre-assembled basic rail set for the S-Dome 6.15 system for module widths of 1061-1170 mm. Includes
BasicRail
, Dome SD, EndPlate and Mat S. Material: Aluminium, EPDM, stainless steel
SingleRail 36; 4.80 m, black anodised
Product number:
2004396
Mounting rail with side-connection and static confirmation in K2 Base. Can be used variably for different roof connections. Length: 4.80 m. Material: aluminium EN AW-6063 T66, black anodized. Eloxal may show slight scratches as a result of packaging and transport.
SingleRail 50; 4.80 m
Product number:
2004414
Mounting rail with side-connection and static confirmation in K2 Base. Can be used variably for different roof connections. Length: 4.80 m. Material: Aluminium EN AW-6063 T66
Dome FlatConnector Set
Product number:
1006039
Rail connector set as connecting element between two K2
BasicRail
22. Screws included. Material: Aluminium
EN AW 5754 H111, stainless steel A2.
TiltUp Vento Beam
Product number:
2003261
Top beam for the TiltUp Vento system. Material: aluminium EN AW 6060 T66; length: 2.36 m
GreenRoof Beam
Product number:
2004194
Top beam for the GreenRoof Vento system. Length: 1.00 m. Material: aluminium EN AW 6060 T66
BasicRail 22
Product number:
2004276
Alternativ article: 2003460 Quick mounting rail with static confirmation in K2 Base. For mounting with BasicClip on a trapezoidal sheet metal roof or as base rail for the K2 Dome System. Length: 2.50 m. Material: Aluminium EN AW-6063 T66
SingleRail 36 Light; 5.95 m
Product number:
2004256
Alternative item: 2004413Mounting rail with side-connection and static confirmation in K2 Base. Can be used variably for different roof connections. Length: 5,95 m. Material: Aluminium EN AW-6063 T66
SingleRail 36
Product number:
2001865
Alternative item: 2004257Mounting rail with side-connection and static confirmation in K2 Base. Can be used variably for different roof connections. Length: 2,10 m. Material: Aluminium EN AW-6063 T66

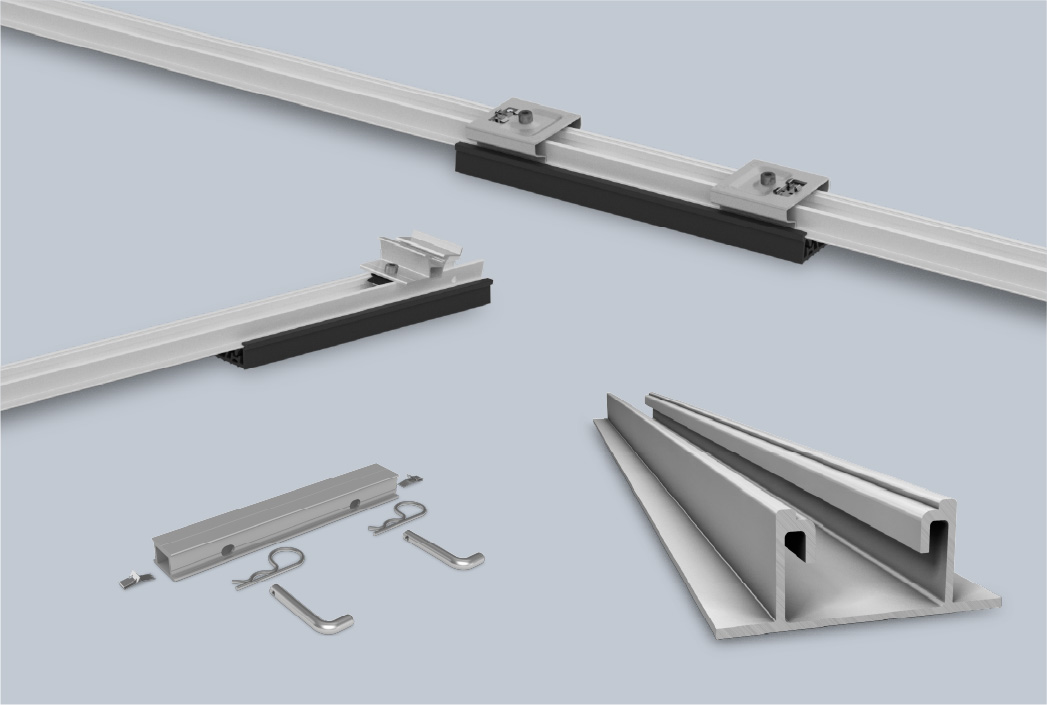

Mounting Rails and Sets
Pre-assembled Dome 6 Xpress Base Sets and all mounting rails for flat roof systems in various lengths.
