LoadSolver
Product number: 2004782
Turned Mat S in 200mm length and sheet metal adapter. Used to optimise load distribution on flat roofs. Suitable for K2 BasicRail 22. Compatible with K2 Dome 6 systems and K2 Dome Zero systems. Material Aluminium EN AW 5754 H111, EPDM.Note: Not plannable in base; please use our planning enquiry.
Dome Mat S 380
Product number: 2003126
Mat S Support Pad. Flexible function to absorb tolerances and protect the roof cover. Suitable for K2 BasicRail. Material: EPDM
Dome FixPro S
Product number: 2003384
Fixing accessories for attaching the K2 Dome 6 LS-systems and K2 Dome Zero to a mounting base for roofs ≥ 3°. Depending on the mounting base, a Climber M10 or M12 and an adapter plate are required separately. Suitable for module lengths: Classic LS 1562 - 2390 mm, Xpress LS 1562 - 2500 mm, Dome Zero 1640 - 2390 mm. Material: aluminium, stainless steel, TPC. Please check the correct position of the module's clamping points on site.
Dome FixPro L
Product number: 2004144
Fixing accessories for attaching the K2 Dome 6 (Classic and Xpress system) to a mounting base for roofs ≥ 3°. Depending on the mounting base, a Climber M10 or M12 and an adapter plate are required separately. Suitable for module lengths: 1448 - 2390 mm. Material: aluminium, stainless steel, PA
Climber 36/50 for roof fixture
Product number: 2003147
K2 Climber with slotted hole for fixing the K2 SingleRail or CrossRail mounting rail to the M12 hanger bolt/M12 roof anchor or as a connecting element between the flat roof mounting foot and the Dome FixPro. Material: Aluminium EN AW-6063 T66
Adapter plate M10 for roof fixture
Product number: 2002546
M10 adapter plate to atach the Dome 6 system to roof anchors M10 in combination with the Dome FixPro and the Climber M10 or in the InsertionRail 2.0 system for vertical attachment of the SingleRail to the SingleHook 3S & 4S. Dimensions: 50 x 90.
PE Baseplate
Product number: 1001572
K2 Polyethylene base plate, used as base for installation of K2 solar mounting systems on flatroofs with gravel. Dimensions: 600x800 mm. Material: Polyethylene. Colour of the product may differ from the picture.

Roof Support/Connection

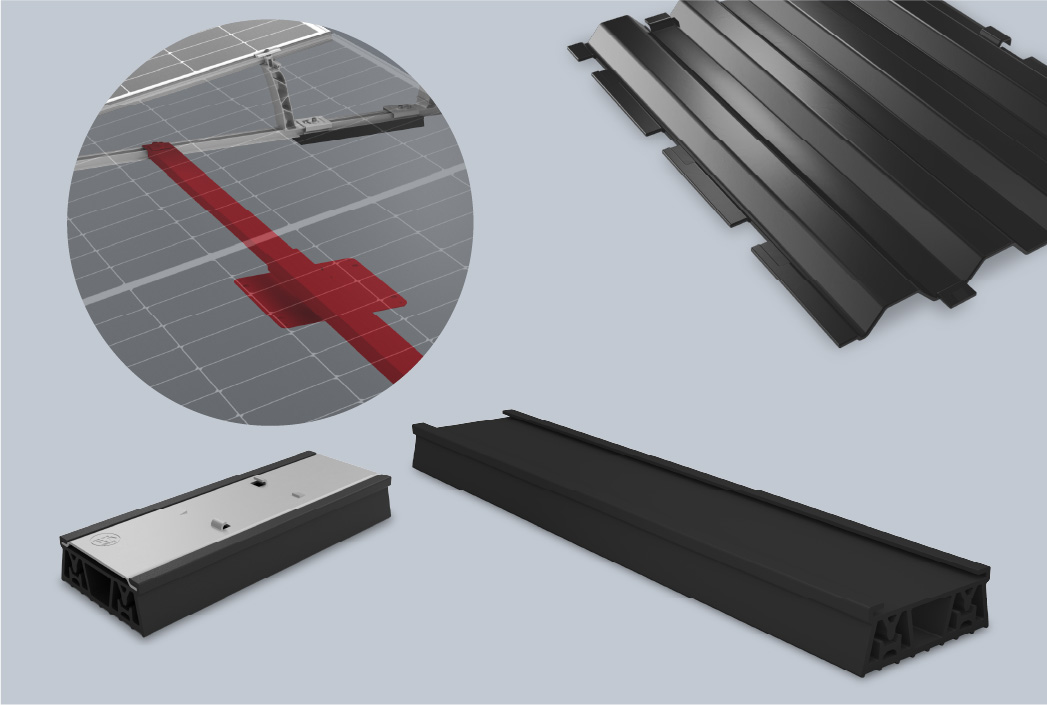

EPDM support pads for many flat roof coverings, adapters for roof anchors and PE sheets for green and gravel roofs.
