Cable Management
Solar Cable Manager
Product number:
2002870
Solar Cable Manager with connecting possibility for outdoor-installation. LxW: 200x4.6 mm
External cable clip OMEGA D for solar cables
Product number:
1005394
External cable clip of solar cables for cables extending beyond K2 rails. Fixation in the C-chamber of the Profilee. Material: Polypropylen with UV stabiliser, black
PVX Singlemount
Product number:
2004879
The PVX Singlemount serves as a support for cable trays (50-300 mm wide) on the flat roof. It offers a flexible, stable and user-friendly solution for your installations. Dimensions: L 168 x W 107 x H 75 mm. Material: PE and ASA. Mesh cable tray not included.
PVX Multistrap+
Product number:
2004880
The PVX Multistrap+ serves as a support for cable trays up to 300 m wide - the M8 screw for fastening is included. Furthermore, up to 2 cable conduits with a diameter of 16-31 mm can be fixed - cable ties are included. The Multistrap+ therefore offers a flexible, stable and user-friendly solution for your installations on flat roofs. Dimensions: L 168 x W 107 x H 75 mm. Material: PE and ASA. Cable duct/cable conduits not included.
PVX Minimount rail
Product number:
2003387
The UV-resistant PVX Minimount provides a multifunctional cable management system for mesh tray suitable for K2 Systems mounting rails. Compatible mesh tray: 2004054. Material: PE and ASA
PVX Minimount trapezoidal
Product number:
2003386
The UV-resistant PVX
Minimount
provides a multifunctional cable management system for mesh tray on trapezoidal roofs. Compatible mesh tray: 2004054. Material: Nylon PA6GF30, Halogen free, UV resistant
Cable routing Performa Mesh Tray 70x100x3000
Product number:
2004054
Performa mesh tray for cable management on the flat roof in combination with the PVX Multimount or on trapezoidal sheet metal in combination withe the PVX Minimount. Dimensions (LxWxH): 3000 x 100 x 75 mm. Wire diameter: 3,9 mm. Material: steel (zinc+)
Performa Mesh Tray Connector
Product number:
2004055
Performa mesh tray connector for article 2004054. Two connectors are required per mesh tray. Dimensions (LxWxH): 86 x 30 x 10 mm. Material: spring steel (zinc)
StairPlate Set
Product number:
2004057
The K2 StairPlate is the perfect solution for installing Micro Inverters and Optimizers from Solar Edge, Huawei and Enphase. With the StairPlate, these devices can be easily hooked into almost all K2 mounting rails without having to screw them directly to the roof. The units are attached to the K2 StairPlate in advance with the appropriate screws and nuts. Please note the height of the modules and the units to be used. Can only be used to a limited extent when using AddOn. Material: Stainless steel

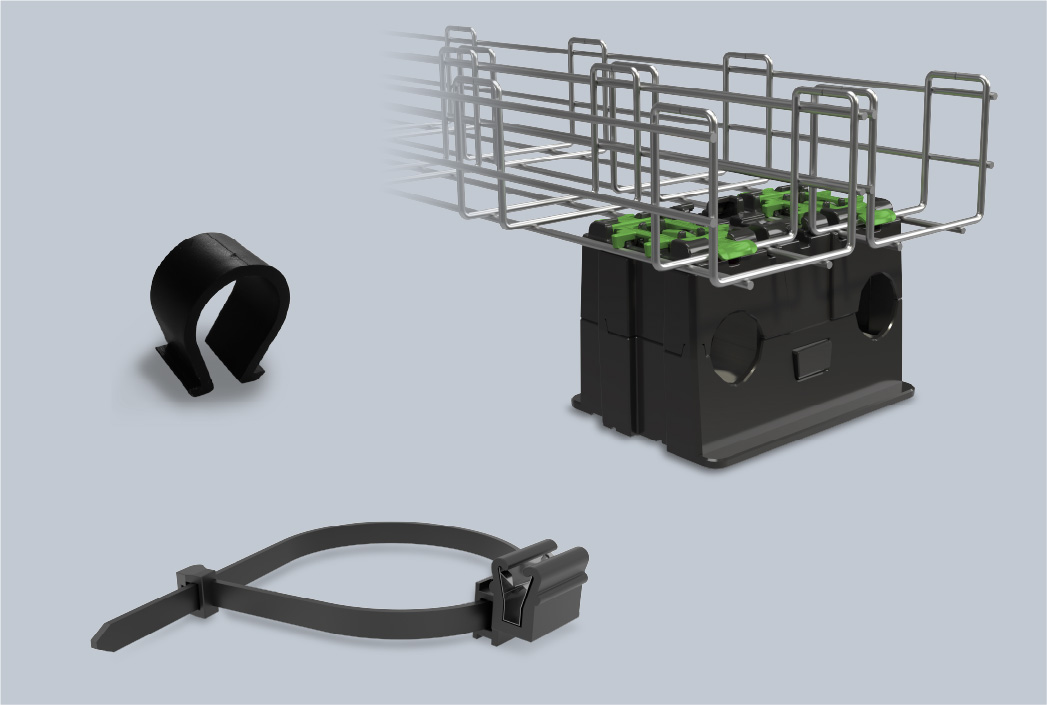

Cable Management
Cable ties, clips for module cables and holders for grid channels and micro inverters.
