K2 GreenRoof Vento System
SingleRail 36
Product number:
2004260
Mounting rail with side-connection and static confirmation in K2 Base. Can be used variably for different roof connections. Length: 5.95 m. Material: Aluminium EN AW-6063 T66
BasicRail 22
Product number:
2004279
Quick mounting rail with static confirmation in K2 Base. For mounting with BasicClip on a trapezoidal sheet metal roof or as base rail for the K2 Dome System. Length: 5.95 m. Material: Aluminium EN AW-6063 T66
GreenRoof Vento 10° Short Beam Set
Product number:
2004783
Set for GreenRoof Vento 10° Short Beam. Set consisting of GreenRoof Brace 332, GreenRoof Brace 480 , GreenRoof Brace 831,5, GreenRoof Beam 1000, Socket Head Bolt serrated M8x55, Self-locking hexagon nut serration M8. Material: Aluminium EN AW 6060 T6, aluminium EN AW 6063 T66, stainless steel A2-70.
GreenRoof Vento 10° Long Beam Set
Product number:
2004784
Set for GreenRoof Vento 10° long beams. Set consisting of GreenRoof Beam 1600, GreenRoof Brace 584, GreenRoof Brace 1384,5, GreenRoof Brace 332, Socket Head Bolt serrated M8x55, Self-locking hexagon nut serration M8. Material: Aluminium EN AW 6060 T6, aluminium EN AW 6063 T66, stainless steel A2-70.
InsertionRail 2.0 CrossConnector Solo
Product number:
2004351
The CrossConnector Solo is used for additional fastening of the BasicRail in the GreenRoof Vento with high wind loads or together with the MK2 and M8x25 for fastening the InsertionRail 2.0 to any K2 mounting rail. The screws are positioned outside the mounted InsertionRail, which offers the advantage that the rail, including the CrossConnector, can still be moved vertically on the rail after mounting. No accessories are included in this article. Material: Aluminium EN-AW 6063 T66
GreenRoof Brace
Product number:
2004185
Brace for the GreenRoof Vento system. Length: 332 mm. Material: Aluminium EN AW 6060 T6
TiltUp Vento Foot
Product number:
2003271
For the connection between the concrete foundation and the TiliUp Vento Brace. Material: Aluminium EN AW 6063 T66
GreenRoof Foot
Product number:
2004184
The GreenRoof Foot serves as a connecting element between the BasicRail and two GreenRoof Braces. Material: Aluminium EN AW 6063 T66
GreenRoof Beam
Product number:
2004194
Top beam for the GreenRoof Vento system. Length: 1.00 m. Material: aluminium EN AW 6060 T66
K2 Clamp MC 25-40 mm
Product number:
2004146
Universal module middle clamp for fixing solar modules with frame heights of 25-40 mm. Not compatible with the K2 Dome 6 System.
K2 Clamp EC 25-40, black anodised
Product number:
2004545
Black anodized Universal module middle clamp for fixing solar modules with frame heights of 25-40 mm. Not compatible with the K2 Dome 6 System. Material: Aluminium EN AW 6063 T66, stainless steel, Thermoplastic. Anodising may show slight signs of scratching due to packaging and transport.
Universal End Clamp OneEnd
Product number:
2002514
Universal module end clamp with simple "click function" for fixing solar modules with frame heights of 30-42 mm. Not compatible with the K2 Dome 6 System and K2 FlatRail, SolidRail L/ LS /XL and CrossRail 62/ 90. Material: Aluminium EN AW 6063 T66 / A2 / POM
MK2 insertion nut with clip, Stainless steel
Product number:
1001643
The Fast-installation MK2 insertion nut can be put into the K2 rail everywhere. The slot nut will adjust itself in the the rail and can be readjusted to every place of the rail. Material: stainless steel 1.4301, TPC.
MK2 Slot nut with clip, Aluminum
Product number:
2000034
The Fast-installation M K2 slot nut can be put into the K2 rail everywhere*. The slot nut will adjust itself in the the rail and can be readjusted to every place of the rail. Material:
Aluminium EN AW 6063 T66, Hytrel 8238-TPC.
Hexagonal socket head cap screw M8x20
Product number:
2001729
Hexagon socket head cap screw M8x20 with serration ISO 4762. Drive size: A/F 6. Material: Stainless steel A2
Hexagonal socket head cap screw M8x55
Product number:
2002184
Hexagon socket head cap screw M8x55 with serration ISO 4762. Drive size: A/F 6. Material: Stainless steel A2
Hexagonal socket head cap screw M8x35
Product number:
2001728
Hexagon socket head cap screw M8x35 with serration ISO 4762. Drive size: A/F 6. Material: Stainless steel A2
Hexagon Flange nut with serration M8
Product number:
1000043
Hexagon flange nuts with serration M8; DIN 6923 A2 M8. The Serration prevents accidental release. Material: A2 stainless steel; Drive size:A/F 13
Self-tapping screw with sealing washer, 6x25
Product number:
1000212
Self-tapping screw 6.0x25 with monuted sealing washer(Ø16 mm). Approved for sheet steel from 0.5 mm and for aluminium from 0.8 mm. With building approval and ETA certification. Material: stainless steel A2, EPDM
PE Baseplate
Product number:
1001572
K2 Polyethylene base plate, used as base for installation of K2 solar mounting systems on flatroofs with gravel. Dimensions: 600x800 mm. Material: Polyethylene. Colour of the product may differ from the picture.
AddOn XS
Product number:
2004629
The K2 AddOn XS mounting adapter enables grid or insert mounting without additional rails or clamps for module frame heights of 30–35 mm. Suitable for SolidRail, SingleRail, MultiRail, MiniRail, BasicRail. Exceptions: SolidRail Alpin, SolidRail Medium, SolidRail Light. Material: Aluminium EN AW 6063 T66
Climber 36/50 Set
Product number:
2003145
A cross connector for the K2 SingleRail 36 & 50 and the K2 CrossRail 36 & 48. Nuts and bolts included. Material: aluminium EN AW-6063 T66, stainless steel A2
XS Middle Clamp
Product number:
2004609
Module centre clamps XS Set for fixing solar modules with frame heights of 30 mm. Not compatible with the K2 Dome 6 system. Material: Aluminium EN AW 6063 T66, stainless steel, TPE/PA
XS Middle Clamp, black anodized
Product number:
2004619
Black anodised module centre clamps XS Set for fixing solar modules with frame heights of 30 mm. Not compatible with the K2 Dome 6 system. Material: Aluminium EN AW 6063 T66, stainless steel, TPE/PA. Anodising may show slight signs of scratching due to packaging and transport.
XS End Clamp
Product number:
2004611
Module end clamp set for fixing solar modules with frame heights of 30 mm. Not compatible with the K2 Dome 6 system. Material: Aluminium EN AW 6063 T66, Stainless steel, TPE/PA.
XS End Clamp, black anodized
Product number:
2004621
Black anodised module end clamp set for fixing solar modules with frame heights of 30 mm. Not compatible with the K2 Dome 6 system. Material: Aluminium EN AW 6063 T66, stainless steel, TPE/PA. Anodising may show slight signs of scratching due to packaging and transport.
K2 Clamp EC 30-40, Hybrid
Product number:
2003451
Alternativartikel: 2002514Universal Modulendklemme zum Fixieren von Solarmodulen mit Rahmenhöhen 30-40 mm. Nicht kompatibel mit dem K2 Dome 6 System. Material: Aluminium EN AW 6063 T66, Badamid B70, Edelstahl A2
Universal Middle Clamp OneMid 30-42 mm, black anodized
Product number:
2003072
Alternative article: 2004148Black anodized universal middle clamp with simple "click function" for fixing solar modules with frame heights of 30-42 mm. Not compatible with the K2 Dome 6 System and K2 FlatRail, SolidRail L/ LS /XL and CrossRail 62/ 90. Material: Anodized aluminium EN AW 6063 T66 / EN AW 6082 T6 / A2 / POM. Eloxal may show slight scratches as a result of packaging and transport.
Universal End Clamp OneEnd, black anodized
Product number:
2002589
Alternative article: 2004545Black anodized universal module end clamp with simple "click function" for fixing solar modules with frame heights of 30-42 mm. Not compatible with the K2 Dome 6 System and K2 FlatRail, SolidRail L/ LS /XL and CrossRail 62/ 90. Material: Aluminium EN AW 6063 T66 / A2 / POM. Eloxal may show slight scratches as a result of packaging and transport.
Universal Middle Clamp OneMid 30-42 mm
Product number:
2003071
Alternative article: 2004146Universal module middle clamp with simple "click function" for fixing solar modules with frame heights of 30-42 mm. Not compatible with the K2 Dome 6 System and K2 FlatRail, SolidRail L/ LS /XL and CrossRail 62/ 90. Material: Aluminium EN AW 6063 T66 / EN AW 6082 T6 / A2 / POM
Metal perforated tie 20x0,8
Product number:
2002735
Perforated tape as wind bracing. One roll of perforated tape is 10 metres long. Material: Stainless steel A2 (1.4301)

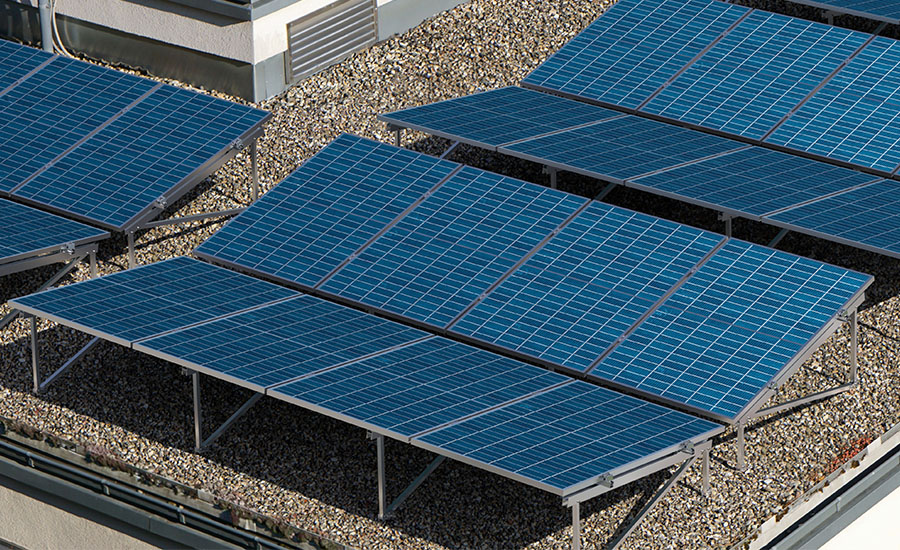

K2 GreenRoof Vento System
The clever solution for photovoltaic systems for green roofs.
- Flexibility in terms of module orientation, inclination angle and system geometry
- Good integration into green roofs
- K2 modular concept using existing components of the K2 TiltUp Vento system
K2 GreenRoof Vento System
System-Highlights
The module orientation can be in portrait or landscape.
High Flexibility: Elevations at angles of 10° or 15%, and up to a module size of 2,400mm x 1,350mm.

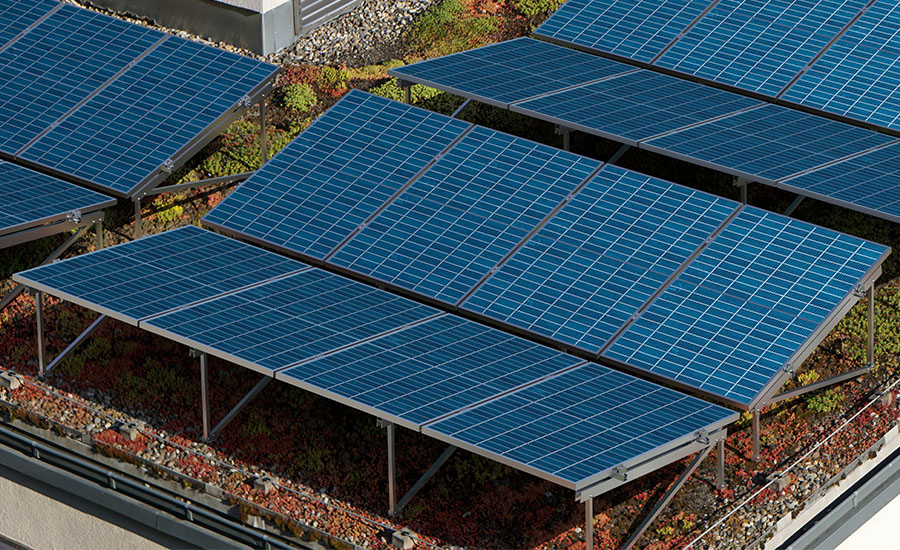

By maintaining large distances from the roof to the module, optimal conditions for the plants are created.
The development of the GreenRoof Vento System aims to disturb the greening as minimally as possible. Thus, the support feet provide a solid foundation but are designed small enough to allow mosses and succulents to continue receiving light and water to contribute their valuable role.
Installation is easy since the systems uses existing K2 components.
The GreenRoof Vento is derived from the existing TiltUp Vento system and therefore utilises existing K2 components – in line with our K2 modular principle!
K2 GreenRoof Vento System
| GreenRoof Vento System | |
|---|---|
| Scope of application | Flachdächer mit Begrünung oder Kies
|
| Configurations | Modules in portrait or landscape elevated at 10° or 15° |
| Module dimensions (lxwxh) | 1400-2400 mm x 950-1350 mm x 30-50 mm |
| Materials |
|
| Surface | Blank aluminium |
K2 GreenRoof Vento System
