FacadeRail; 4.00 m
New
Product number:
2004310
Product information

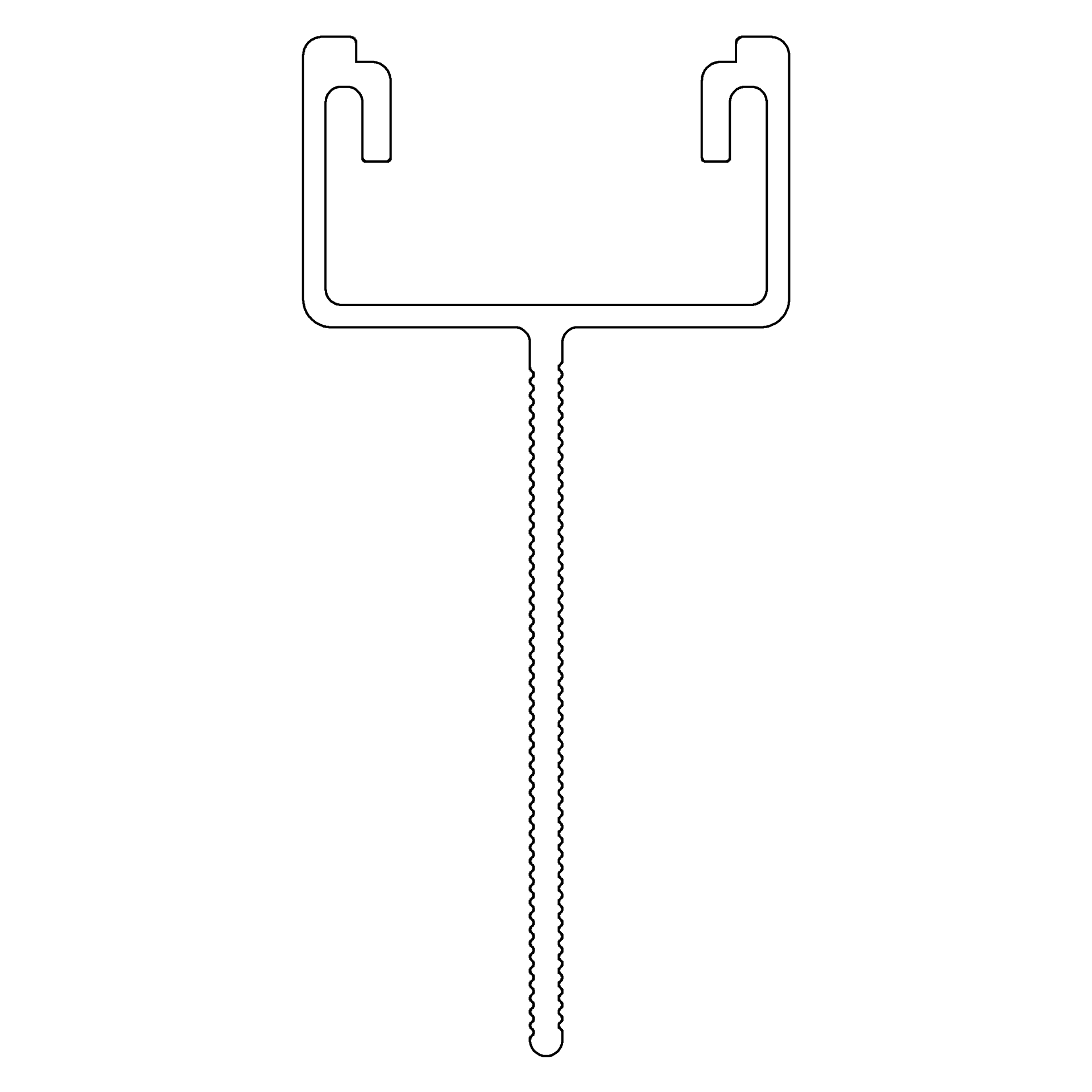

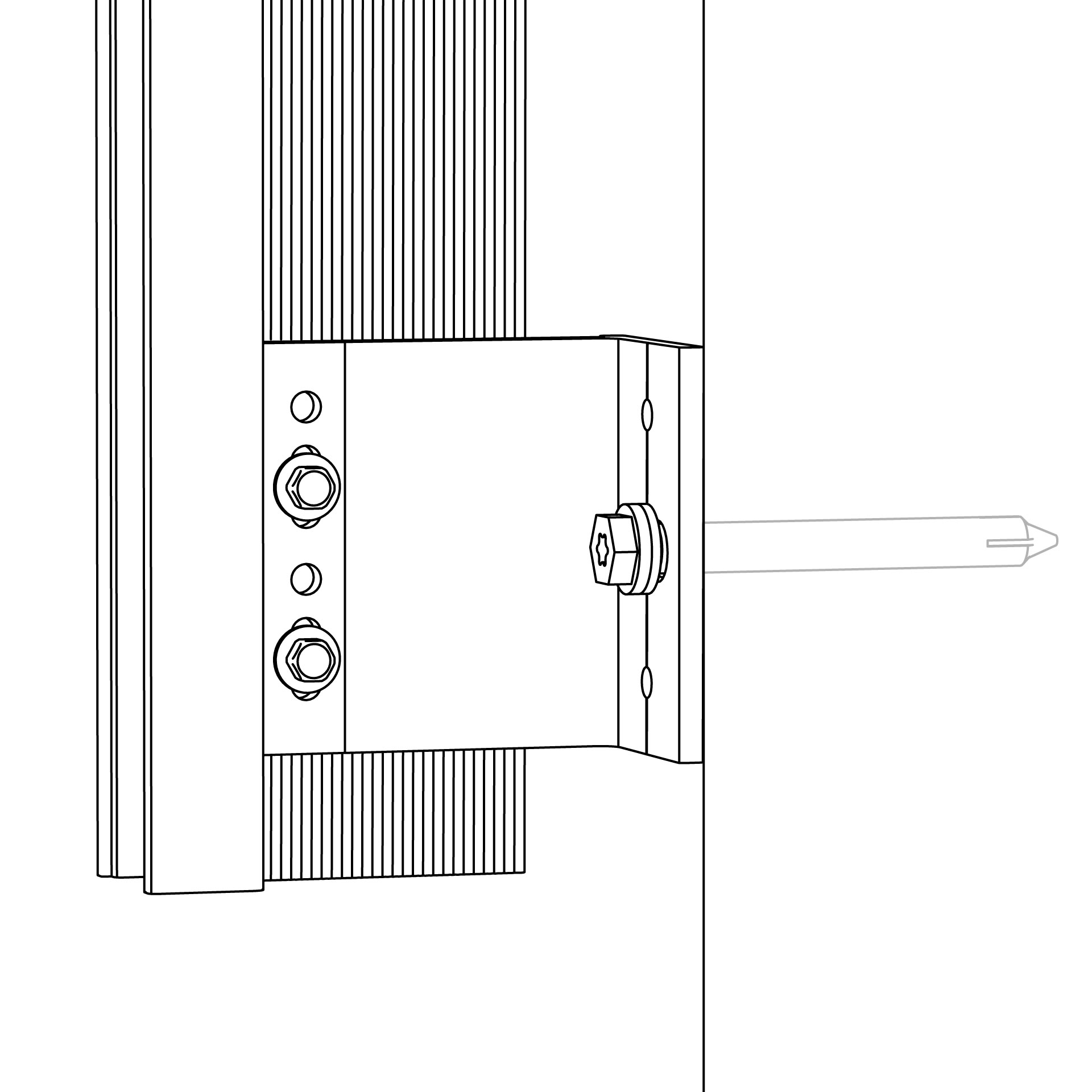

The K2 FacadeRail is securely fixed to a solid masonry or concrete facade in conjunction with the special Facade Console. Manufactured from EN AW 6063 T66 aluminium for maximum durability and reliability. Length: 4.00 metres.
| Height [mm]: | 81.8 |
|---|---|
| Length [m]: | 4,00 |
| Mounting Rails: | Mounting rails |
| Mounting systems: | K2 InsertionRail System, K2 WallPV |
| Scope of application: | Facade |
| Width [mm]: | 39 |
| Component type: | Mounting rail |
| Material: | Aluminium EN AW 6063 T66 |
| Sales unit: | 20 Piece |
| Packaging type: |
100 / Bundle |
| Weight: | 3.656 Kg |
| Customs tariff number: | 76042990 |
Downloads
| Technical Datasheet : | Login to see details |
|---|---|
| Assembly instructions - FacadeRail: | DE EN |
Compatible Items
Accessories
Wall bracket MFT-FOX VI 80 S 11
Product number:
2003607
The Facade bracket is a versatile wall bracket which, in combination with the K2 FacadeRail, provides a secure substructure for the PV system on the building facade. The bracket is suitable for both insulated and non-insulated facades with a concrete or masonry anchoring base. Product dimensions (lxwxh): 80x53x55 mm. Material: Aluminium EN AW 6063 T66 and polypropylene. Manufacturer: Hilti
Wall bracket MFT-FOX VI 80 M 6.5/11
Product number:
2003611
The Facade bracket is a versatile wall bracket which, in combination with the K2 FacadeRail, provides a secure substructure for the PV system on the building facade. The bracket is suitable for both insulated and non-insulated facades with a concrete or masonry anchoring base. Product dimensions (lxwxh): 80x53x80 mm. Material: Aluminium EN AW 6063 T66 and polypropylene. Manufacturer: Hilti
Wall bracket MFT-FOX VI 80 L 6.5/11
Product number:
2003615
The Facade bracket is a versatile wall bracket which, in combination with the K2 FacadeRail, provides a secure substructure for the PV system on the building facade. The bracket is suitable for both insulated and non-insulated facades with a concrete or masonry anchoring base. Product dimensions (lxwxh): 80x53x155 mm. Material: Aluminium EN AW 6063 T66 and polypropylene. Manufacturer: Hilti
InsertionRail 2.0 - 30; 5.70 m
Product number:
2004339
The InsertionRail 2.0 is ideal for mounting solar modules with a frame height of 30 mm and is suitable for both pitched roof mounting and façade mounting. With the uncomplicated use of the CrossConnector 2.0, it can be easily mounted on any K2 mounting rail. It also enables direct integration into the BasicClip, similar to the functionality of the BasicRail. This versatile insertion rail makes installation even more efficient and customisable. Material: Aluminium EN AW 6063 T66
InsertionRail 2.0 Cover; 2.85 m, black anodised
Product number:
2004665
The InsertionRail 2.0 Cover 30 acts as a horizontal cover for the InsertionRail 2.0 for 30 mm frame heights and is clicked onto the mounting rail at both the top and bottom end of the module block. This rail cover prevents the accumulation of dirt or water in the insertion rails and at the same time contributes to an aesthetically pleasing overall appearance. Material: Aluminium EN AW-6063 T66, black anodised. Anodised finish may show slight signs of scratching due to packaging and transport.
InsertionRail 2.0 Cover 30; 2.85 m
Product number:
2004680
The InsertionRail 2.0 Cover 30 acts as a horizontal cover for the InsertionRail 2.0 for 30 mm frame heights and is clicked onto the mounting rail at both the top and bottom end of the module block. This rail cover prevents the accumulation of dirt or water in the insertion rails and at the same time contributes to an aesthetically pleasing overall appearance. Material: Aluminium EN AW 6063 T66
InsertionRail 2.0 CrossConnector, black anodised
Product number:
2004375
The CrossConnector 2.0 set makes it easy to attach the InsertionRail 2.0 to any K2 mounting rail. The screws are located outside the mounted InsertionRail, which offers the advantage that the rail including the CrossConnector can still be moved vertically on the rail after mounting. All accessories required for installation are included in this set. Material: Aluminium EN-AW 6060 T66 black anodised; stainless steel 1.4301; A2-70. Anodising may show slight signs of scratching due to packaging and transport.
InsertionRail 2.0 CrossConnector
Product number:
2004374
The CrossConnector 2.0 set makes it easy to attach the InsertionRail 2.0 to any K2 mounting rail. The screws are located outside the mounted InsertionRail, which offers the advantage that the rail, including the CrossConnector, can still be moved vertically on the rail after mounting. All accessories required for installation are included in this set. Material: Aluminium EN-AW 6060 T66; stainless steel 1.4301; A2-70
InsertionRail 2.0 RailConnector, black anodised
Product number:
2004322
The InsertionRail 2.0 RailConnector enables two K2 InsertionRails 2.0 to be connected quickly and easily. The connector is simply pushed into two InsertionRails 2.0 without additional accessories to create a stable connection between the two mounting rails. Material: Aluminium EN AW-6063 T66, black anodised. The anodised finish may show slight signs of scratching due to packaging and transport.
InsertionRail 2.0 RailConnector
Product number:
2004355
The InsertionRail 2.0 RailConnector enables two K2 InsertionRails 2.0 to be connected quickly and easily. The connector is simply pushed into two InsertionRails 2.0 without additional accessories to create a stable connection between the two mounting rails. Material: Aluminium EN AW-6063 T66
InsertionRail 2.0 EndStop
Product number:
2004372
The EndStop 2.0 is an end bracket for the K2 InsertionRail 2.0, which is supplied with a pre-assembled M8x8 hexagon socket set screw. The end bracket not only provides an aesthetic finish to the rail, but also acts as a lateral safety device for the inserted modules to prevent them from slipping. Material: Aluminium EN AW-6063 T66, stainless steel
InsertionRail 2.0 FixStop
Product number:
2004370
The FixStop 2.0 ensures that the InsertionRail 2.0 is reliably fixed to the CrossConnector 2.0 to prevent it from being pushed out. The FixStop 2.0 is supplied pre-assembled with an M8x8 hexagon socket grub screw for quick and easy installation. Material: Aluminium EN AW-6063 T66, stainless steel
Rail AntiSlip Clip
Product number:
2004289
The WallPV FallProtection, compatible with the K2 MultiRail and FacadeRail, provides additional safety for the WallPV system. The Rail FallProtection is attached below the lower CrossConnector or the lower clamp to prevent slipping. It is attached using a 5.5x19 screw (2004432). Material: Aluminium EN AW 6063 T66
Self-tapping metal screw 5.5x19
Product number:
2004432
The 5.5 x19 self-tapping screw is specially designed for aluminium façade fastenings (up to 4 mm) and ensures a reliable fastening solution. This screw is used to fix the articles 2004288 - CarrierRail AntiSlip Plate and 2004289 - Rail AntiSlip Clip. Material: A4 stainless steel. Manufacturer: Hilti.
ModuleSafety
Product number:
2004290
The K2 ModuleSafety is specially designed for use with the K2 InsertionRail in combination with the WallPV system. It acts as a spacer between two modules and ensures that the required distance between them is maintained. Material: EPDM Shore A 70
TerraGrif PL
Product number:
2004102
The TerraGrif PL can be used for potential equalisation of the K2 MiniFive components in the K2 MiniRail MK2 system. It can also be used for potential equalisation in the InsertionRail 2.0. Material: Stainless steel (301 TA)
Solar Cable Manager
Product number:
2002870
Solar Cable Manager with connecting possibility for outdoor-installation. LxW: 200x4.6 mm
TerraGrif K2U17 Portrait
Product number:
2000056
The mounting accessory enables potential equalisation of the K2 mounting systems or earthing of the module frames. The TerraGrif K217 can be easily attached to the underside of the module frame and is compatible with almost every module type. The material is 301 TA stainless steel and can be placed in the area of the adjacent elevation or mounting system components.
InsertionRail 2.0 - 40; 5.70 m, black anodised
Product number:
2004335
The InsertionRail 2.0 is ideal for mounting solar modules with a frame height of 40 mm and is suitable for both pitched roof and façade mounting. With the uncomplicated use of the CrossConnector 2.0, it can be easily mounted on any K2 mounting rail. It also enables direct integration into the BasicClip, similar to the functionality of the BasicRail. This versatile insertion rail makes installation even more efficient and customisable. Material: Aluminium EN AW 6063 T66, black anodised. Eloxal may show slight signs of scratching due to packaging and transport.
InsertionRail 2.0 - 30, black anodised
Product number:
2004316
The InsertionRail 2.0 is ideal for mounting solar modules with a frame height of 30 mm and is suitable for both pitched roof mounting and façade mounting. With the uncomplicated use of the CrossConnector 2.0, it can be easily mounted on any K2 mounting rail. It also enables direct integration into the BasicClip, similar to the functionality of the BasicRail. This versatile insertion rail makes installation even more efficient and customisable. Material: Aluminium EN AW 6063 T66, black anodised. Eloxal may show slight signs of scratching due to packaging and transport.
InsertionRail 2.0 EndStop S, black
Product number:
2004692
The EndStop 2.0 is an end bracket for the K2 InsertionRail 2.0. The end bracket prevents the inserted modules from slipping, as it acts as a lateral aesthetic safeguard. Material: 1.4301 (X5CrNi18-10), Colour black
InsertionRail 2.0 EndStop S
Product number:
2004693
The EndStop 2.0 is an end bracket for the K2 InsertionRail 2.0. The end bracket prevents the inserted modules from slipping, as it acts as a lateral aesthetic safeguard. Material: 1.4301 (X5CrNi18-10)
