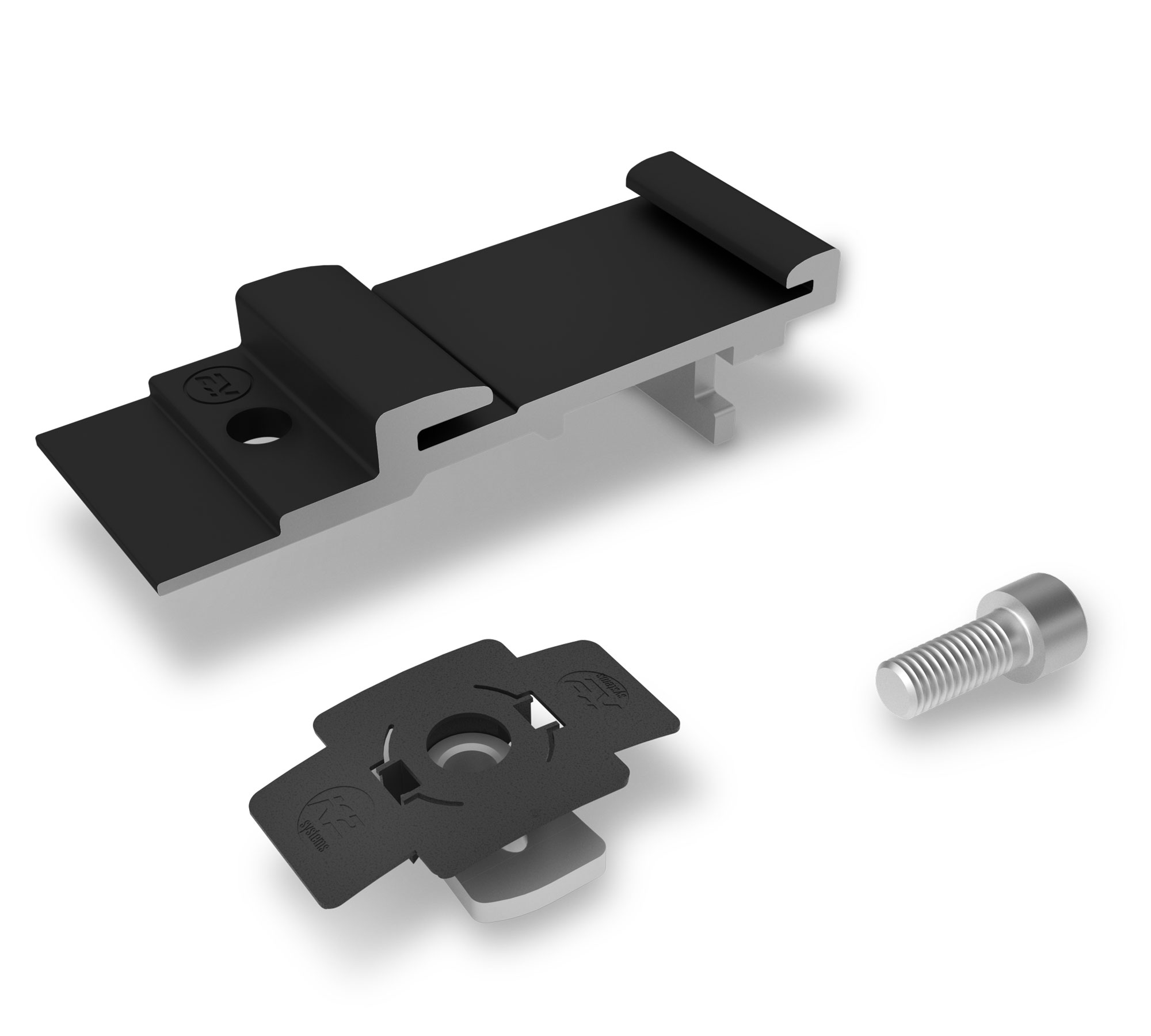

InsertionRail 2.0 CrossConnector-T Set, black anodised
New
Product number:
2004813
GTIN:
4251786217359
Product information
The CrossConnector 2.0 T-Set makes it easy to attach the InsertionRail 2.0 to any K2 mounting rail. The screws are located outside the mounted InsertionRail, which offers the advantage that the rail, including the CrossConnector, can still be moved vertically on the rail after mounting. All accessories required for installation are included in this set. Material: Aluminium EN-AW 6060 T66 black anodised; stainless steel 1.4301; A2-70, TPC. Anodising may show slight signs of scratching due to packaging and transport.
| Mounting systems: | K2 InsertionRail 2.0 System |
|---|---|
| Scope of application: | Facade, Pitched Roof |
| Surface: | Black anodised |
| Component type: | Accessories |
| Material: | Aluminium EN-AW 6060 T66 black anodised; stainless steel 1.4301; A2-70, TPC |
| Sales unit: | 20 Piece |
| Packaging type: |
20 / Bag 100 / Box 2400 / Pallett |
| Weight: | 0.105 Kg |
| Customs tariff number: | 76109090 |
Downloads
| Technical Datasheet: | Login to see details |
|---|---|
| Assembly instructions - CarrierRail (CrossConnector T): | DE EN |
| Assembly instructions - FacadeRail (CrossConnector T): | DE EN |
| Assembly instructions - MultiRail InsertionRail 2.0 (CrossConnector T): | DE EN |
| Assembly instructions - PerfoRail M (CrossConnector T): | DE EN |
