Wall bracket MFT-FOX VI 180 S 11
New
Product number:
2003608
Product information
The Facade bracket is a versatile wall bracket which, in combination with the K2 FacadeRail, provides a secure substructure for the PV system on the building facade. The bracket is suitable for both insulated and non-insulated façades with concrete and masonry as the anchoring base. Product dimensions (180x53x55 mm). Material: Aluminium EN AW 6063 T66 and polypropylene. Manufacturer: Hilti
| Mounting systems: | K2 WallPV |
|---|---|
| Scope of application: | Facade |
| Component type: | Accessories, Bracket |
| Material: | Aluminium, Polypropylen |
| Sales unit: | 50 Piece |
| Packaging type: |
50 / Box 3200 / Pallet |
| Weight: | 0.124 Kg |
| Customs tariff number: | 7308909590 |
Compatible Items
Mounting rails

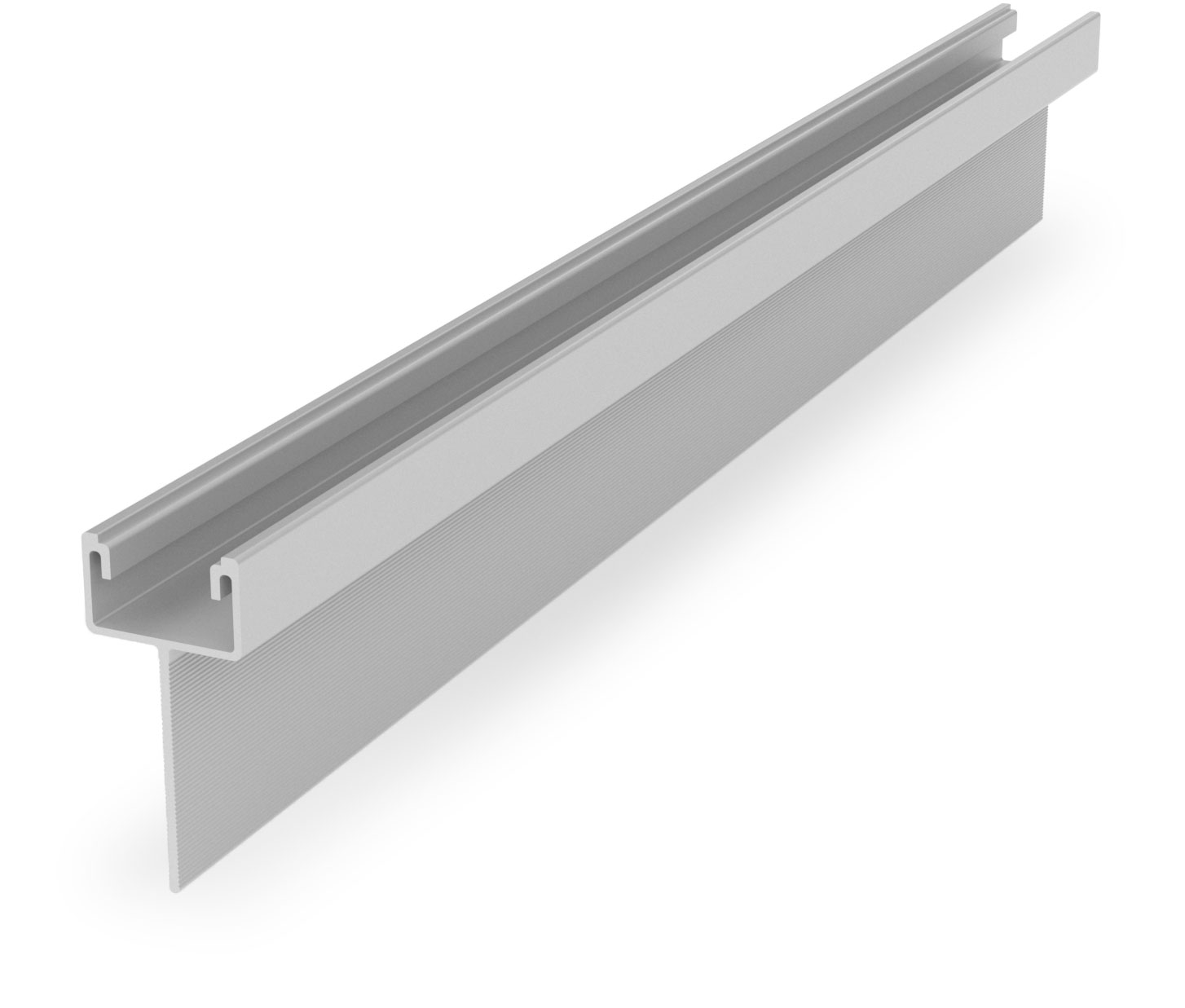

FacadeRail; 4.00 m
Product number:
2004310
The K2 FacadeRail is securely fixed to a solid masonry or concrete facade in conjunction with the special Facade Console. Manufactured from EN AW 6063 T66 aluminium for maximum durability and reliability. Length: 4.00 metres.
Accessories
Hilti Plastic screw anchor HRD-H 10x80 mm
Product number:
2004533
The pre-assembled plastic plug with HRD-H screw from Hilti is designed for quick and cost-effective fastening in concrete and masonry and serves as a solid base for mounting the bracket on the wall. The anchor is made of plastic and the screw is made of galvanised steel. It is approved for fire protection (fire resistance) and ETA. Flexible anchoring depth (approved for 50 mm and 70 mm) Material: galvanised steel, plastic
Self-tapping metal screw 5.5x19
Product number:
2004432
The 5.5 x19 self-tapping screw is specially designed for aluminium façade fastenings (up to 4 mm) and ensures a reliable fastening solution. This screw is used to fix the articles 2004288 - CarrierRail AntiSlip Plate and 2004289 - Rail AntiSlip Clip. Material: A4 stainless steel. Manufacturer: Hilti.
