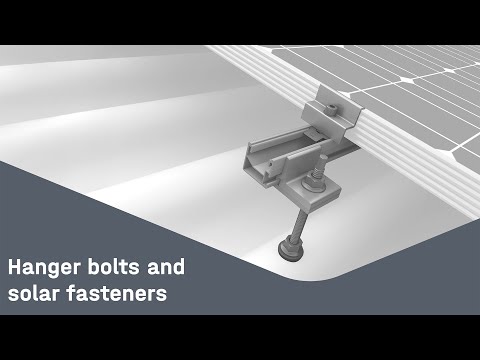

Solarfastener M10x50 with calotte for wood substructure
Product number:
1000807
GTIN:
4251786200696
Product information
Solar fastener 8x150 / M10x50 for fastening the K2 Systems components in the wooden substructure. With sealing washer E16 and ORKAN calotte. Suitable for trapezoidal and corrugated metal profiles and sandwich elements. With European Technical Assessment (ETA). Material: stainless steel A2. Article is procured on the basis of order - return excluded. The following technical data must be submitted with enquiries/orders: A - Top chord width [mm], B - Profile height [mm], C - Clear width at bottom chord [mm], D - Roof colour [RAL].
For support please complete the below document 'Selection and parameters for solar fastener with calotte' and send it with your order.
| Mounting systems: | K2 InsertionRail System, K2 SolidRail System |
|---|---|
| Roof substructure: | Wood |
| Scope of application: | Pitched Roof |
| Screw length [mm]: | 150 |
| Screw thread: | M10x50 |
| Component type: | Solar fastener |
| Material: | Stainless Steel, EPDM |
| Sales unit: | 25 Piece |
| Packaging type: |
25 / Box 4.725 / Pallet |
| Weight: | 0.191 Kg |
| Customs tariff number: | 73181210 |
Compatible Items
Adapter plate aluminium, M10
Product number:
2002544
Adapter plate for Hanger Bolt and Solar Fastener M10. 40x90 mm. Material: Aluminium
Hexagon Flange nut with serration M10
Product number:
1000042
Hexagon flange nuts with serration M10; DIN 6923 A2 M 10. The Serration prevents accidental release. Material: A2 stainless steel; Drive size:A/F 15.
SolidRail Light
Product number:
2004271
Mounting rail with static confirmation in K2 Base. Can be used variably for different roof connections. Length 5.95 m. Material: aluminium EN AW-6063 T66
SolidRail Light; 4.80 m, black anodised
Product number:
2004397
Mounting rail with static confirmation in K2 Base. Can be used variably for different roof connections. Length 4.80 m. Material: aluminium EN AW-6063 T66, black anodized. Eloxal may show slight scratches as a result of packaging and transport.
SolidRail Medium; 4.80 m
Product number:
2004415
Mounting rail with static confirmation in K2 Base. Can be used variably for different roof connections. Length: 4.80 m. Material: aluminium EN AW-6063 T66
SolidRail UltraLight
Product number:
2004266
Mounting rail with static confirmation in K2 Base. Can be used variably for different roof connections. Length: 5.95 m. Material: aluminium EN AW-6063 T66
T-Bolt 28/15 M10
Product number:
1000571
T-Bolt M10x25 for insertion into the bottom chamber of K2 SolidRail. It can be inserted at any position and can be moved later if necessary. Head form: 28/15. Head dimensions: 22.5x10.5x4 mm. Thread of screw: M10x25. Material: stainlesteel A2 (1.4301)
