K2 Clamp EC 30-40 Black, Hybrid
DISCONTINUED
Product number:
2003452
GTIN:
4251786215201
Product information
Alternative article: 2004545

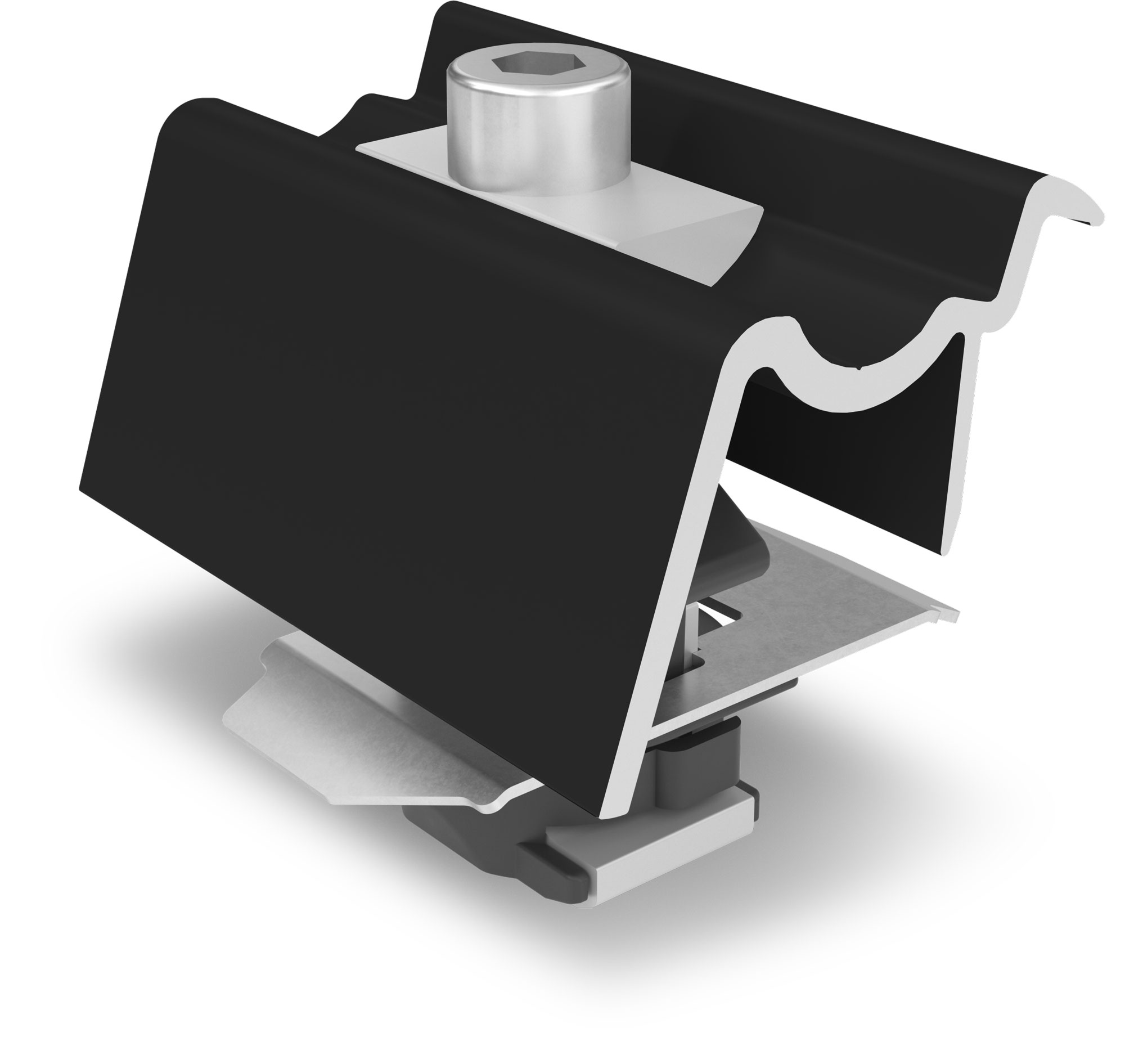

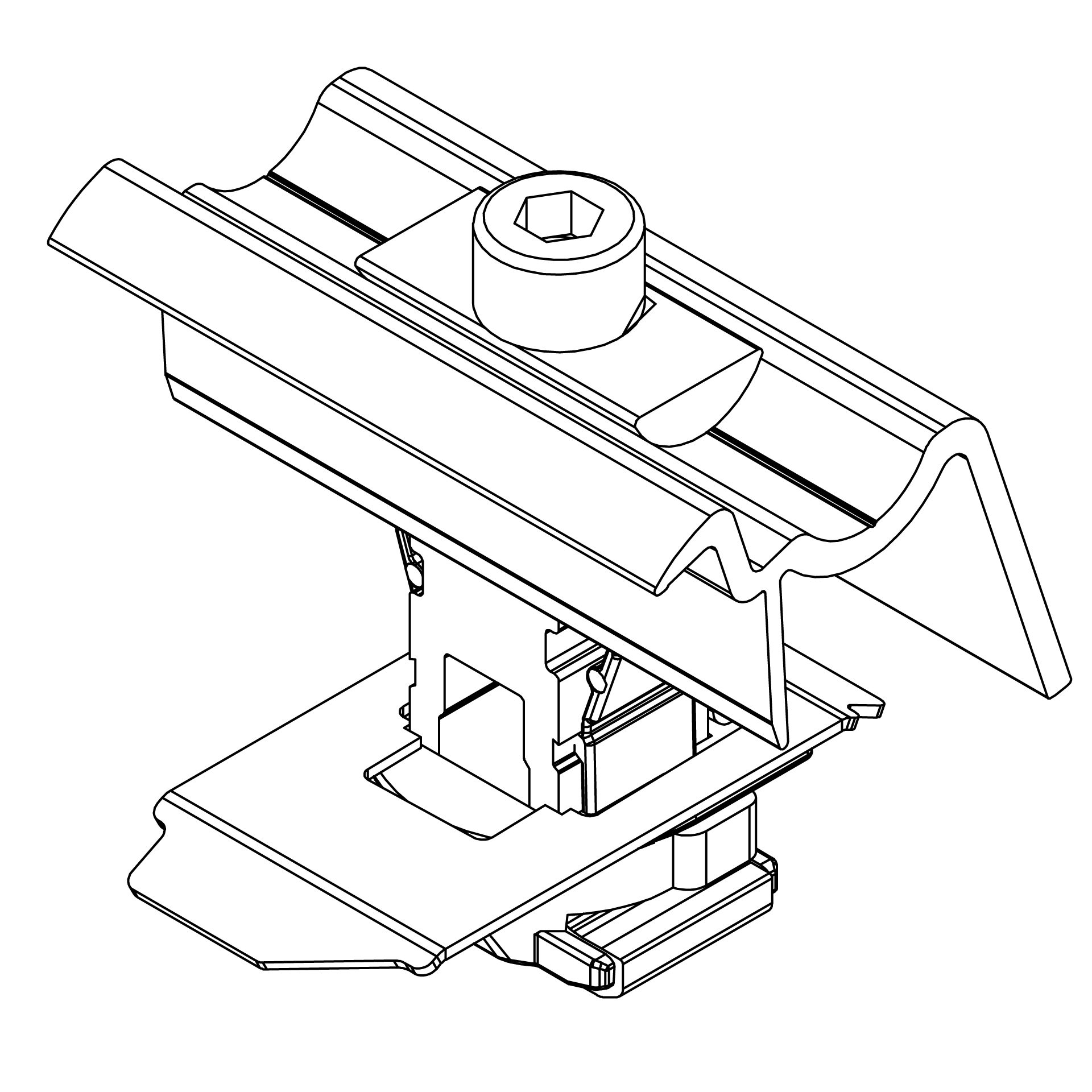

Black anodized universal module end clamp for fixing solar modules with frame heights of 30-40 mm. Not compatible with the K2 Dome 6 System. Material: Anodized aluminium EN AW 6063 T66, Badamid B70, stainless steel A2
| Mounting systems: | K2 BasicRail System, K2 GreenRoof Vento, K2 InsertionRail System, K2 MiniRail MK2 System, K2 MultiAngle System, K2 MultiRail System, K2 SingleRail System, K2 SolidRail System, K2 TiltUp Vento System, K2 Universal KL-Clamp System, K2 WallPV |
|---|---|
| Scope of application: | Facade, Flat roof, Pitched Roof |
| Surface: | Black anodised |
| Component type: | Module clamp |
| Material: | Anodized aluminium EN AW 6063 T66, Badamid B70, stainless steel A2 |
| Sales unit: | 20 Piece |
| Packaging type: |
20 / Bag 120 / Box 2.880 / Pallet |
| Weight: | 0.093 Kg |
| Customs tariff number: | 76109090 |
Downloads
| Technical Datasheet: | Login to see details |
|---|---|
| Assembly instruction - SingleHook: | DE EN RO |
| Assembly instructions - SingleHook flat tile: | DE EN |
| Assembly instructions - Hanger bolt CR: | DE EN FR IT |
| Assembly instructions - SpliceFoot: | DE EN HU SL |
| Assembly instructions - Seam Clamps: | DE EN FR |
| Assembly instruction - SolidHook: | CS DE EN FR HU IT PL |
| Assembly instructions - Plain tile roof hooks: | DE EN |
| Assembly instructions - Solar fasteners: | DE EN FR IT |
| Assembly instructions - Hanger bolts: | DE EN FR IT |
| Assembly instructions - MultiRail / MultiRail CSM: | DE EN ES FR IT PL RO SL |
| Assembly instructions - MiniRail MK2: | BG CS DE EN ES FR HU IT LV PL RO RU |
| Assembly instructions - BasicRail: | BG DE EN ES FR HU IT JA LV PL RO RU |
| Assembly instructions - Universal KL-Clamp System: | DE EN |
| Assembly instructions - MultiAngle: | DE EN FR |
| Assembly instructions - TiltUp Vento: | DE EN ES FR IT PT |
