K2 BasicRail System
Quick mounting rail with static confirmation in K2 Base. For mounting with BasicClip on a trapezoidal sheet metal roof or as base rail for the K2 Dome System. Length: 5.95 m. Material: Aluminium EN AW-6063 T66
BasicClip for direct mounting the K2 BasicRail on trapezoidal sheet metal. General technical approval. Note: for each BasicClip you need 2x thread-forming screws 6x38. Material: UV-resistant glass-fibre reinforced polyamide
Rail connector set for connecting 2 K2 BasicRails. With 3 drill holes for flexible mounting. Inklusive screws (bit T25). Material: Aluminum, Stainless steel A2
Rail connector set as connecting element between two K2
BasicRail
22 or FlatRail. screw included. Material: Aluminium EN AW-6063 T66, stainless steel A2.
Mounting security for fusing the K2 BasicRail 22 in case of thermal expansion. Including screws and nuts. Material: Aluminum, stainless steel and PA.
Front module support element for the Dome 6.10 system. Material: aluminium
Component for the module elevation of the Dome 6.10 system. The peak can either be clicked into the pre-assembled base plate or fixed directly to the
BasicRail
with a socket head bolt and MK2. Material: Aluminium EN AW-6063 T66
Universal module end clamp for fixing solar modules with frame heights of 25-37mm. Not compatible with the K2 Dome 6 System.
Universal module middle clamp for fixing solar modules with frame heights of 25-40 mm. Not compatible with the K2 Dome 6 System.
Universal module middle clamp with simple "click function" for fixing solar modules with frame heights of 30-42 mm. Not compatible with the K2 Dome 6 System and K2 FlatRail, SolidRail L/ LS /XL and CrossRail 62/ 90. Material: Aluminium EN AW 6063 T66 / EN AW 6082 T6 / A2 / POM
Universal module end clamp with simple "click function" for fixing solar modules with frame heights of 30-42 mm. Not compatible with the K2 Dome 6 System and K2 FlatRail, SolidRail L/ LS /XL and CrossRail 62/ 90. Material: Aluminium EN AW 6063 T66 / EN AW 6082 T6 / A2 / POM
Universal module end clamp for fixing solar modules with frame heights of 30-40 mm. Not compatible with the K2 Dome 6 System. Material: Aluminium EN AW 6063 T66, Badamid B70, stainless steel A2
Black anodized universal middle clamp with simple "click function" for fixing solar modules with frame heights of 30-42 mm. Not compatible with the K2 Dome 6 System and K2 FlatRail, SolidRail L/ LS /XL and CrossRail 62/ 90. Material: Anodized aluminium EN AW 6063 T66 / EN AW 6082 T6 / A2 / POM. Eloxal may show slight scratches as a result of packaging and transport.
Black anodized universal module end clamp with simple "click function" for fixing solar modules with frame heights of 30-42 mm. Not compatible with the K2 Dome 6 System and K2 FlatRail, SolidRail L/ LS /XL and CrossRail 62/ 90. Material: Aluminium EN AW 6063 T66 / EN AW 6082 T6 / A2 / POM. Eloxal may show slight scratches as a result of packaging and transport.
Module middle clamp for fastening laminate modules, approved for modules from First Solar, Calyxo, MiaSolé and for modules with a glass thickness of 6.8 - 8.0 mm. Please note, one Allen bolt and MK2 are required per module clamp, these are not included in the article. Material: Aluminium press finished, EPDM
Module end clamp for fastening laminate modules, approved for modules from First Solar, Calyxo, MiaSolé and for modules with a glass thickness of 6.8 - 8.0 mm. Please note, one Allen bolt and MK2 are required per module clamp, these are not included in the article. Material: Aluminium press finished, EPDM
Laminate middle clamp Click 5.0 approved for modules from SoliTek/ViaSolis, S-Energy, Sonnenstromfabrik / CS Wismar and for modules with a glass thickness of 5.0-6.2 mm. Length: 100 mm. Please note, one Allen bolt and MK2 are required per module clamp, these are not included in the article. Material: Aluminium EN AW 6063-T66; EPDM
Laminate end clamp Click 5.0 approved for modules from SoliTek/ViaSolis, S-Energy, Sonnenstromfabrik / CS Wismar and for modules with a glass thickness of 5.0-6.2 mm. Length: 100 mm. Please note, one Allen bolt and MK2 are required per module clamp, these are not included in the article. Material: Aluminium EN AW 6063-T66; EPDM
Slide guard for additional use in vertical assembly of laminated modules with glass thickness of 6 - 9 mm. Material: stainless steel 1.4016, EPDM
K2 Windbreaker to deflect wind on the backs of the K2 S-Dome 6.10 Classic LS system. Suitable for module dimensions from 1562 - 2390 mm. Material: Magnelis 1.0242 (S250GD+ZM310)
The Fast-installation M K2 slot nut can be put into the K2 rail everywhere*. The slot nut will adjust itself in the the rail and can be readjusted to every place of the rail. Material: Aluminium, PA. * excluding MiniRail, MicroRail, Dome 6 and Dome V Peak
The Fast-installation MK2 insertion nut can be put into the K2 rail everywhere. The slot nut will adjust itself in the the rail and can be readjusted to every place of the rail. Material: stainless steel 1.4301, PA.
Hexagon socket head cap screw M8x20 with serration ISO 4762. Drive size: A/F 6. Material: Stainless steel A2
Self-drilling hexagonal sheet metal screw 6x35 - with sealing washer. Approved for sheet thicknesses (steel and aluminium) from 0.4 mm.
Thread-tapping screw 6x38 mm for non-cutting processing, approved for sheet thicknesses (steel and aluminium) from 0.4 mm to 1.25 mm. With General approval. Certification: abZ (de), abZ (de)
BasicClip
, ETA (eu), MCS (gb). Material: stainless steel A2, EPDM
Solar Cable Manager with connecting possibility for outdoor-installation. LxW: 200x4.6 mm
The UV-resistant PVX
Minimount
provides a multifunctional cable management system for mesh tray on trapezoidal roofs. Compatible mesh tray: 2004054. Material: Nylon PA6GF30, Halogen free, UV resistant
The UV-resistant PVX Minimount provides a multifunctional cable management system for mesh tray suitable for K2 Systems mounting rails. Compatible mesh tray: 2004054. Material: PE and ASA
The K2 AddOn 30 mounting adapter enables grid or shared-rail installation without additional rails or clamps for module frame heights of 30-34 mm. Fits most K2 SolidRails, CrossRails, SingleRails and
BasicRail
. Not suitable for CrossRail 62 & 90 and SolidRail Alpin & XL. Material: glass fibre reinforced polyamide
The K2 AddOn 22 mounting adapter enables grid or shared-rail installation without additional rails or clamps for module frame heights of 35-50 mm. Fits all K2 SolidRails, CrossRails, SingleRails and BasicRails. Material: glass fibre reinforced polyamide
The K2 StairPlate is the perfect solution for installing Micro Inverters and Optimizers from Solar Edge, Huawei and Enphase. With the StairPlate, these devices can be easily hooked into almost all K2 mounting rails without having to screw them directly to the roof. The units are attached to the K2 StairPlate in advance with the appropriate screws and nuts. Please note the height of the modules and the units to be used. Can only be used to a limited extent when using AddOn. Material: Stainless steel
Optional addition for the K2

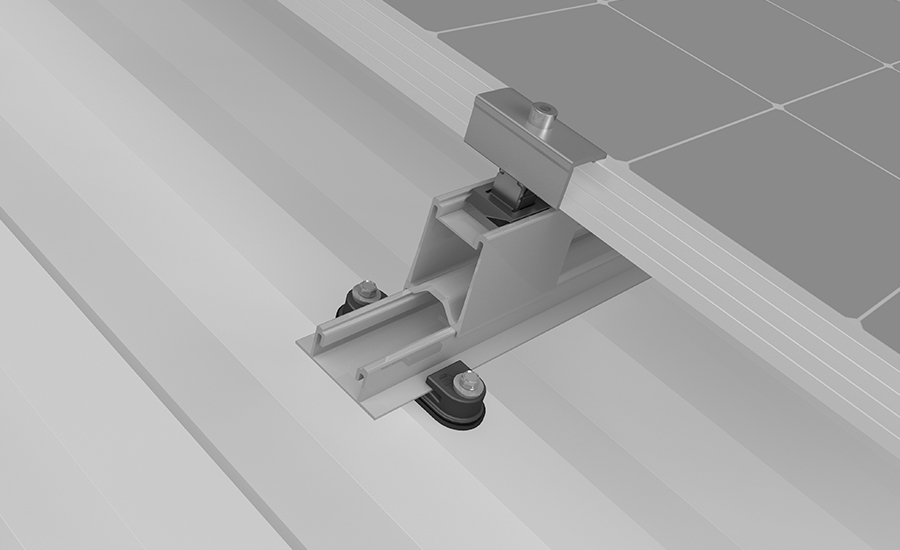

BasicRail and MultiRail system. The RailUp Set allows the modules to be raised using a minimum of material and to optimise module ventilation on the trapezoidal sheet metal roofs. Furthermore the installation of power optimizers and microinverters becomes easier. The set includes all screws and nuts necessary for the installation. The RailUp set is mounted under each module clamp and is compatible with the universal K2 clamps OneMid/OneEnd as well as the K2 standard module clamps. It is not compatible with the K2 AddOn. Material: aluminium, stainless steel and TPC
Mounting accessories for establishing equipotential bonding of the K2 mounting systems or for earthing the module frames. Compatible moduleclamp: K2 Clamp 25-40.
Mounting accessories for establishing equipotential bonding of the
BasicRail
mounting system or for earthing the module frames. Only suitable for landscape mounting. Material: stainless steel 301 TA
Mounting accessories for establishing equipotential bonding of the K2 mounting systems or for earthing the module frames. Incompatible systems:
BasicRail
(landscape mounting). Material: stainless steel 301 TA
The mounting accessory enables potential equalisation of the K2 mounting systems or earthing of the module frames. The TerraGrif K217 can be easily attached to the underside of the module frame and is compatible with almost every module type. The material is 301 TA stainless steel and can be placed in the area of the adjacent elevation or mounting system components.
Two Lightning protection clamp for clamping Ø 8mm lightning protection cables for universal use as a T, cross, parallel and impact clamp. Including allen bolt M8x40, 2x Washer 8,4 x 20 x 1,2 mm and Locking nuts M8.
Lightning protection clamp for clamping Ø 8mm lightning protection cables. Including MK2 slot nut, Washer (8,4x20x1,2 mm) and stainless steel socket screw M8x30.
A cross connector for the K2 SingleRail 36 & 50 and the K2 CrossRail 36 & 48. Nuts and bolts included. Material: aluminium EN AW-6063 T66, stainless steel A2
Alternative item: 2004278Quick mounting rail with static confirmation in K2 Base. For mounting with BasicClip on a trapezoidal sheet metal roof or as base rail for the K2 Dome System. Length: 4.40 m. Material: Aluminium EN AW-6063 T66
Module middle clamp XS set for fixing solar modules with frame heights 30-33 mm. Not compatible with the K2 Dome 6 system. Material: Aluminium EN AW-6063 T66, stainless steel A2, PA
Black anodized module end clamp set for fixing solar modules with frame heights 30-31 mm. Not compatible with the K2 Dome 6 System. Material: Anodized aluminium EN AW-6063 T66, stainless steel A2, PA. Eloxal may show slight scratches as a result of packaging and transport.
Module end clamp set for fixing solar modules with frame heights 30-31 mm. Not compatible with the K2 Dome 6 System. Material: Aluminium EN AW-6063 T66, stainless steel A2, PA
Black anodized module middle clamp XS set for fixing solar modules with frame heights 30-33 mm. Not compatible with the K2 Dome 6 System. Material: Anodized aluminium EN AW-6063 T66, stainless steel A2, PA.

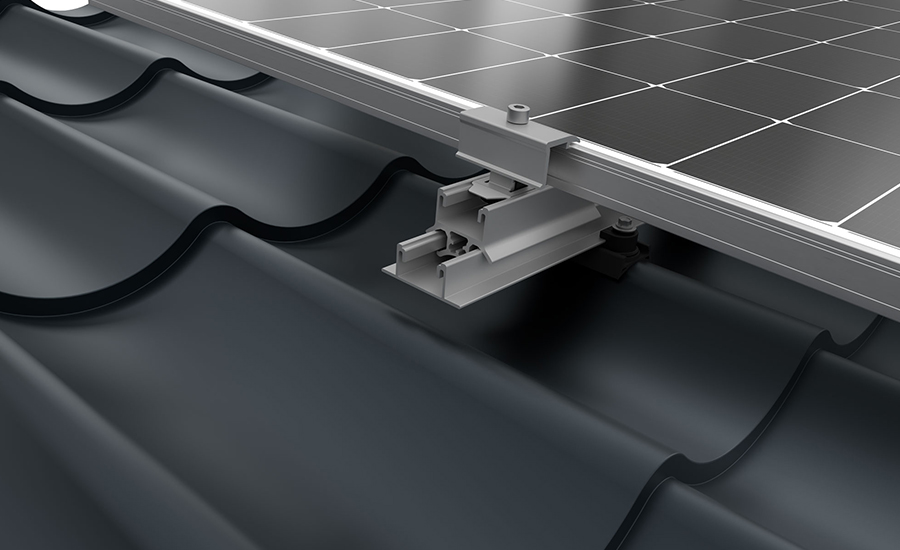

K2 BasicRail System
All-rounder with only 4 installation steps. Floating with controlled thermal linear expansion.
The BasicRail mounting system (former SpeedRail) for photovoltaic systems has been specially developed for trapezoidal sheet metal roofs. In Germany, the system has an abZ certification.
- The proven long rail system for trapezoidal sheet metal applications as well as floating with controlled thermal linear expansion.
- Our best-selling system - over 2 GW installed worldwide
- All-rounder with only 4 installation steps - also suitable for high load
K2 BasicRail System
System variant
BasicRail systems can now be planned with an elevation. This improves the rear ventilation of the modules and helps with the installation of micro-inverters and power optimisation.
We recommend using this component in very warm regions or to optimise module performance.
RailUp is supplied as a set and does not require any additional material for installation.
BasicRail on FischerTHERM sandwich panels with abZ

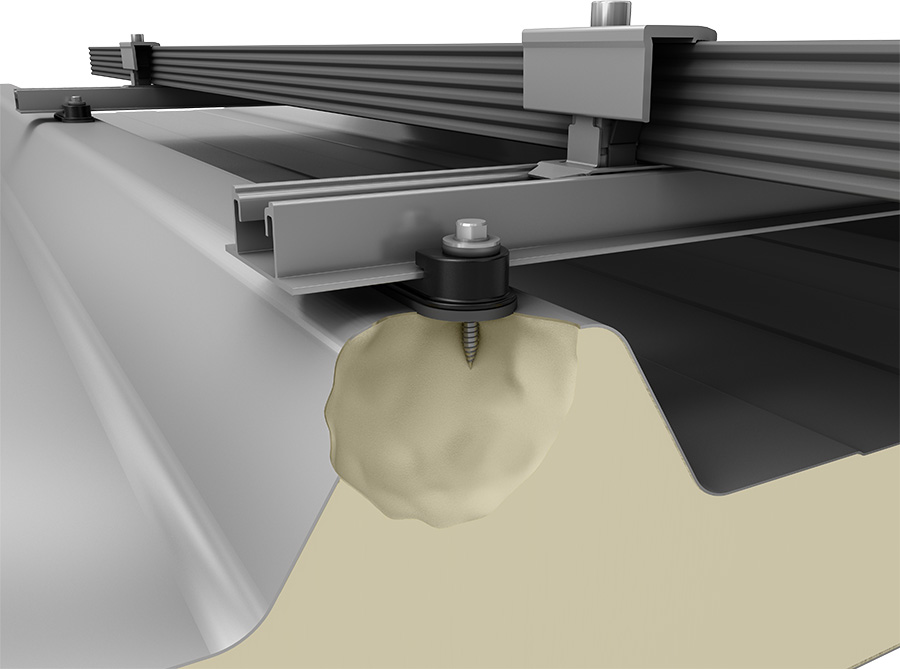

The direct connection of BasicRail with BasicClips and thread-forming screws on FischerTHERM sandwich panels has a general building authority approval (abZ) from the DIbT. This type of installation with a building authority approval (Z-10.4-901) is unique in Germany. A low time requirement results from the high installation speed of the BasicRail system and the direct fastening of the system in the sandwich panels.
K2 BasicRail System
Technical Data
| BasicRail System | |
|---|---|
| Scope of application | Trapezoidal sheet roof |
| Fastening type / roof fixture | Insertion mounting into BasicClips and screws in the roofing |
| Requirements |
|
| Material |
|
| BasicRail dimensions |
(W×H) 63 mm × 22,5 mm |
| BasicClip dimensions | See drawing |
| Second rail layer | SingleRail |

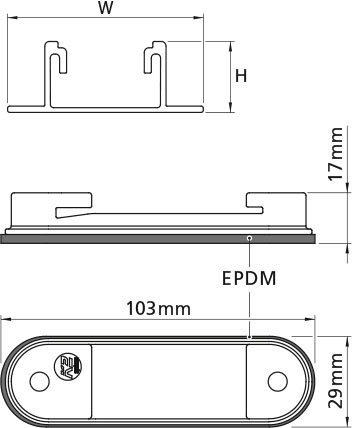

Dimensioning scheme BasicRail/BasicClip
w = width / H = height / L = lengths
K2 BasicRail System
Downloads
MCS-Zertifikat - IK0182 03
abZ - BasicRail / BasicClip General approval ((Z-14.4-603))
abZ/aBG - FischerTHERM Fischer Profil Z-10.4-901
abZ/aBG - Sandwich roof element "DP" Brucha (Z-10.4-620)
K2 BasicRail System
Videos
K2 BasicRail System
K2 Base: Easy, fast and safe planning
Quick and easy planning in five steps of K2 mounting systems for pitched and flat roofs. Our free planning tool K2 Base has a dashboard for efficient project management. Google Maps integration and graphic drawing tools support you in planning and make it easier.
