TiltUp Vento Beam
Product number:
2003262
GTIN:
4251786214136
Product information

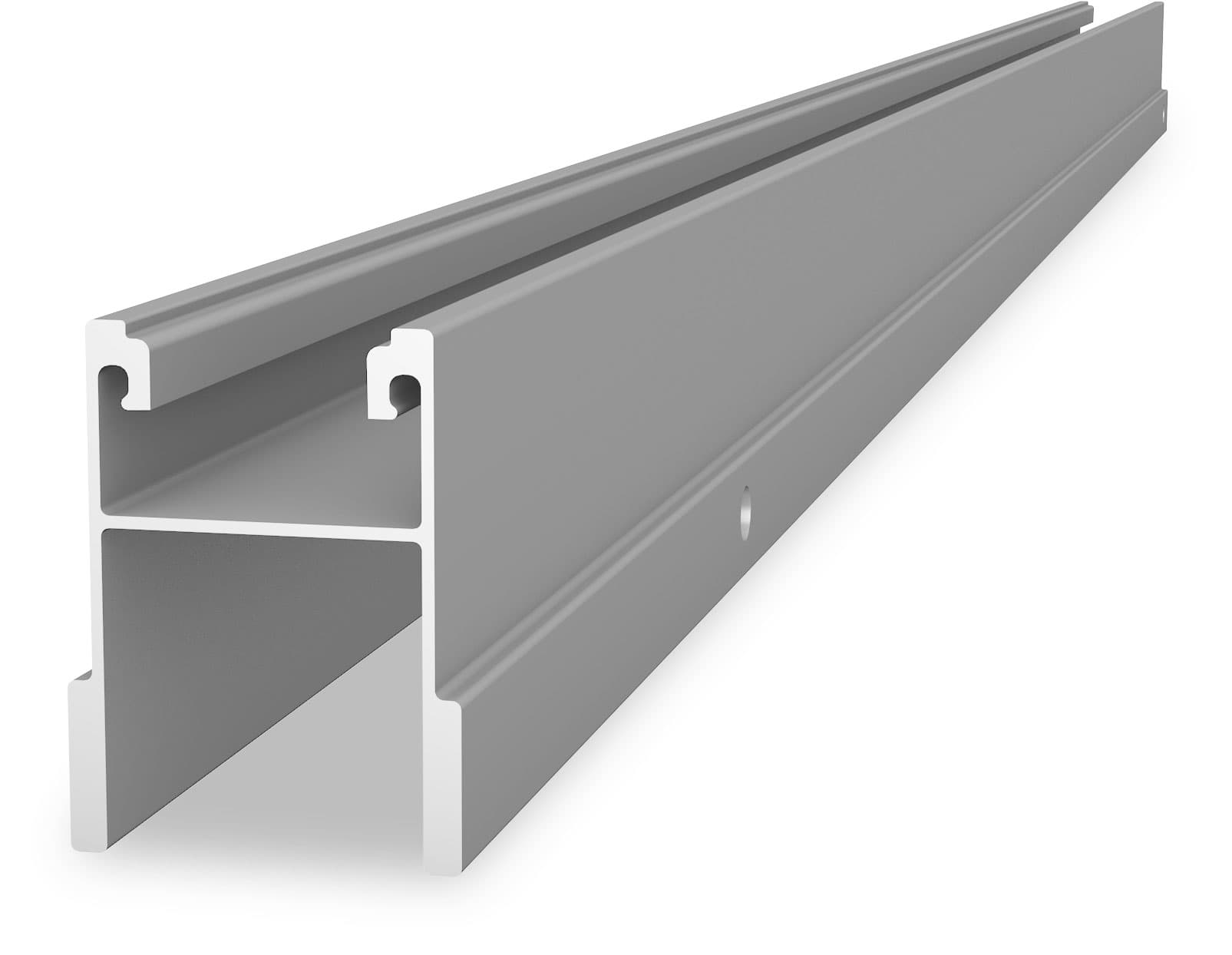

Top beam for the TiltUp Vento system. Material: aluminium EN AW 6060 T66; length: 1.60 m
| Length [m]: | 1.60 |
|---|---|
| Mounting systems: | K2 TiltUp Vento System |
| Scope of application: | Flat roof |
| Component type: | Elevation |
| Material: | Aluminium EN AW 6063 T66 |
| Sales unit: | 1 Piece |
| Packaging type: |
75 / Bundle |
| Weight: | 1.815 Kg |
| Customs tariff number: | 76109090 |
Compatible Items
TiltUp Vento Foot
Product number:
2003271
For the connection between the concrete foundation and the TiliUp Vento Brace. Material: Aluminium EN AW 6063 T66
TiltUp Vento Brace
Product number:
2003268
Back brace for the TiltUp Vento system. Material: aluminium EN AW 6060 T6; length: 558 mm
TiltUp Vento Pin
Product number:
2004241
Pin for connecting the TiltUp Vento profiles. Material: 1.4301 (X5CrNi18-10) TS520
Climber 36/50 Set
Product number:
2003145
A cross connector for the K2 SingleRail 36 & 50 and the K2 CrossRail 36 & 48. Nuts and bolts included. Material: aluminium EN AW-6063 T66, stainless steel A2
