RidgeConnector Set
New
Product number:
2004844
GTIN:
4251786217137
Product information

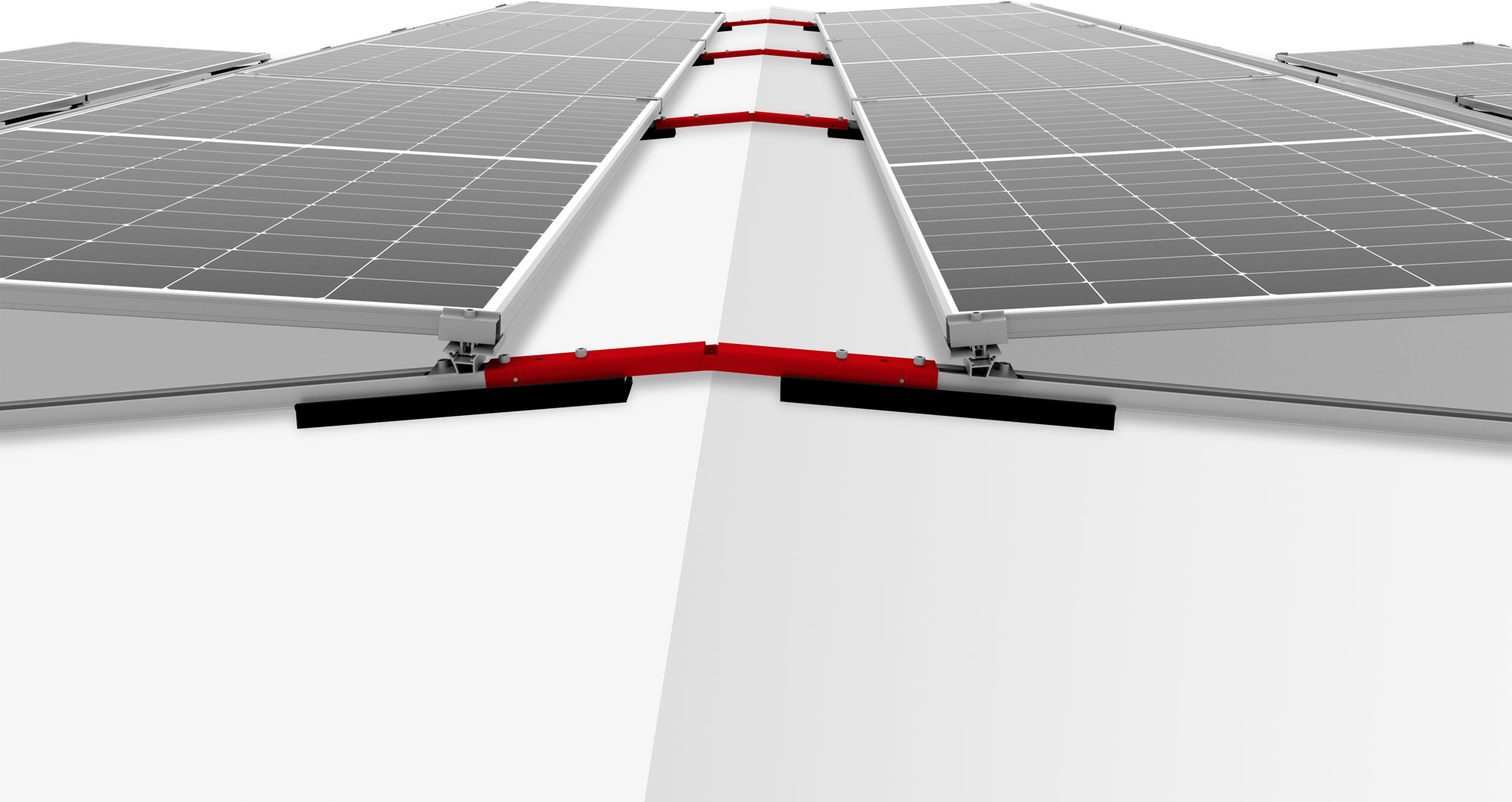

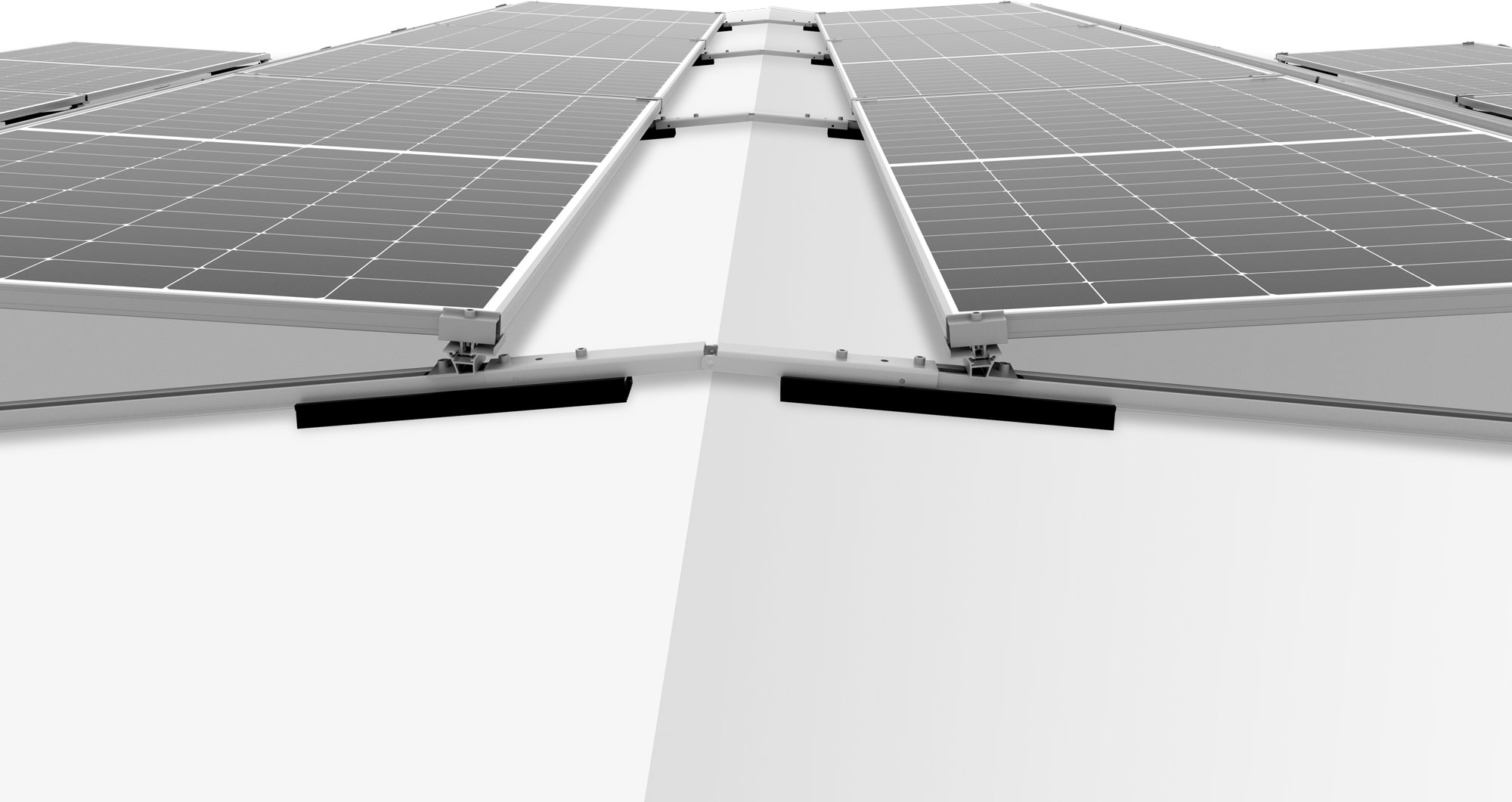

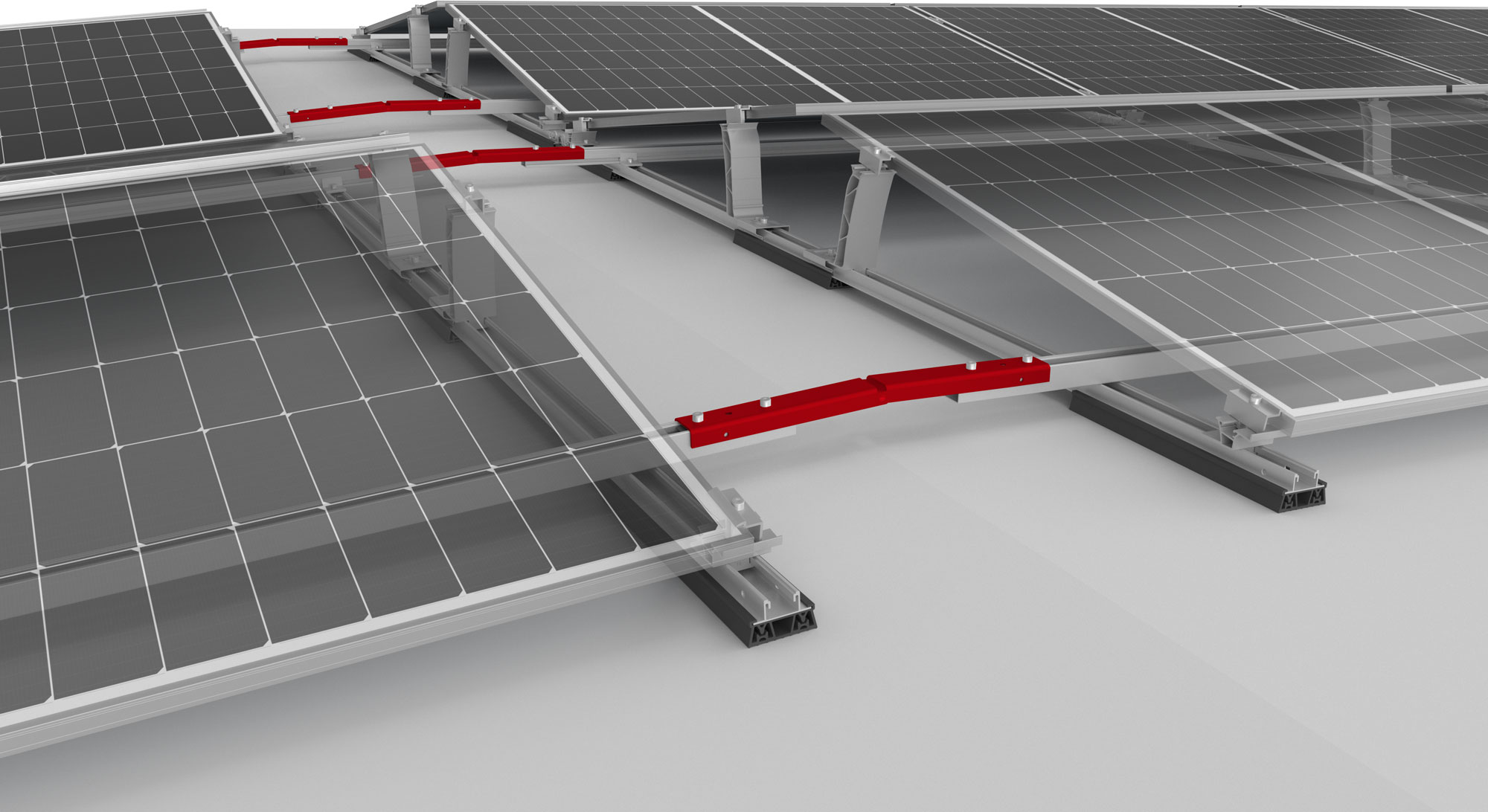

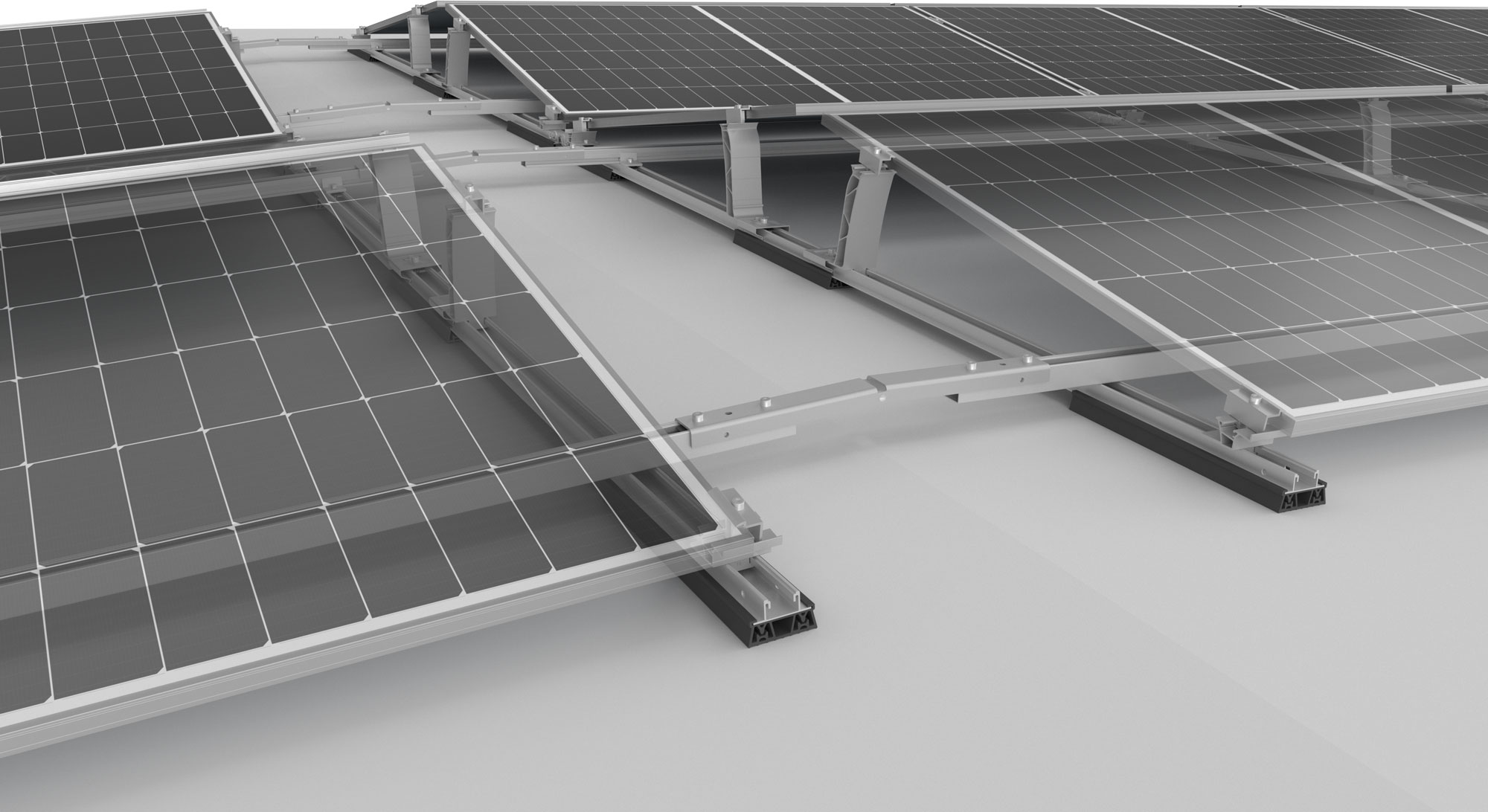

The K2 RidgeConnector is a ridge connector set that connects two Dome 6 module blocks across a roof ridge. The connection can be made either via the BasicRail support rails of the module groups or with an additional SingleRail as a strut at right angles across the BasicRail support rails. The set thus offers a solution for all conceivable orientations of the module field of your PV project, ensuring optimum use of solar power.
The RidgeConnector is compatible with all Dome 6 variants – D-Dome and S-Dome 6.
You can enquire about the design of module fields with the RidgeConnector directly from us.
| Mounting systems: | K2 Dome 6 System |
|---|---|
| Scope of application: | Flat roof |
| Component type: | Accessories |
| Material: | Stainless steel, Steel, TPC |
| Sales unit: | 15 Piece |
| Packaging type: |
15 / Box 600 / Pallet |
| Weight: | 1.115 Kg |
| Customs tariff number: | 73089098 |
Downloads
| Technical Datasheet: | Login to see details |
|---|---|
| Assembly instruction - RidgeConnector: | DE EN |
