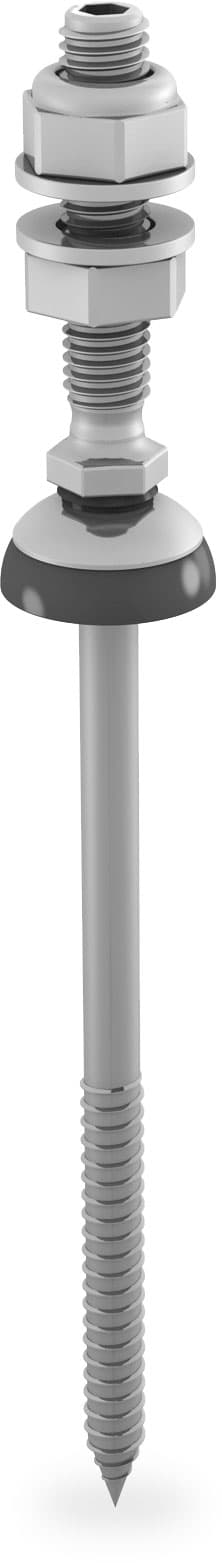

Solarfastener M10x50 with fibre-cement seal for wood substructure
Product number:
1003029
GTIN:
4251786201525
Product information
Solar fastener 8x100 / M10x50 with fiber cement seal for fixing the K2 Systems components in the timber substructure, suitable for corrugated fibre cement roofing. Material: stainless steel A2. Article is procured on the basis of order - return excluded.
| Mounting systems: | K2 InsertionRail System, K2 SolidRail System |
|---|---|
| Roof substructure: | Wood |
| Scope of application: | Pitched Roof |
| Screw length [mm]: | 100 |
| Screw thread: | M10x50 |
| Component type: | Solar fastener |
| Material: | Stainless Steel A2, EPDM |
| Sales unit: | 25 Piece |
| Packaging type: |
25 / Box 4.725 / Pallet |
| Weight: | 0.085 Kg |
| Customs tariff number: | 73181210 |
Compatible Items
Adapter plate aluminium, M10
Product number:
2002544
Adapter plate for Hanger Bolt and Solar Fastener M10. 40x90 mm. Material: Aluminium
Hexagon Flange nut with serration M10
Product number:
1000042
Hexagon flange nuts with serration M10; DIN 6923 A2 M 10. The Serration prevents accidental release. Material: A2 stainless steel; Drive size:A/F 15.
SolidRail Light
Product number:
2004271
Mounting rail with static confirmation in K2 Base. Can be used variably for different roof connections. Length 5.95 m. Material: aluminium EN AW-6063 T66
SolidRail Light; 4.80 m, black anodised
Product number:
2004397
Mounting rail with static confirmation in K2 Base. Can be used variably for different roof connections. Length 4.80 m. Material: aluminium EN AW-6063 T66, black anodized. Eloxal may show slight scratches as a result of packaging and transport.
SolidRail Medium; 4.80 m
Product number:
2004415
Mounting rail with static confirmation in K2 Base. Can be used variably for different roof connections. Length: 4.80 m. Material: aluminium EN AW-6063 T66
SolidRail UltraLight
Product number:
2004266
Mounting rail with static confirmation in K2 Base. Can be used variably for different roof connections. Length: 5.95 m. Material: aluminium EN AW-6063 T66
T-Bolt 28/15 M10
Product number:
1000571
T-Bolt M10x25 for insertion into the bottom chamber of K2 SolidRail. It can be inserted at any position and can be moved later if necessary. Head form: 28/15. Head dimensions: 22.5x10.5x4 mm. Thread of screw: M10x25. Material: stainlesteel A2 (1.4301)
