K2 GreenRoof Vento System
SingleRail 36
Product number:
2004258
MCS Certified Mounting rail with side-connection and static confirmation in K2 Base. Can be used variably for different roof connections. Length: 3.65 m. Material: Aluminium EN AW-6063 T66
K2 Clamp MC 25-40
Product number:
2004537
MCS Certified
K2 Clamp - Universal clamp for fixing solar modules with frame heights of 25-40 mm. Not compatible with the K2 Dome 6 system. Material: Aluminium EN AW 6063 T66, Thermoplastic, stainless steel A2
GreenRoof Brace
Product number:
2004185
Brace for the GreenRoof Vento system. Length: 332 mm. Material: Aluminium EN AW 6060 T6
TiltUp Vento Foot
Product number:
2003271
For the connection between the concrete foundation and the TiliUp Vento Brace. Material: Aluminium EN AW 6063 T66
GreenRoof Foot
Product number:
2004184
The GreenRoof Foot serves as a connecting element between the BasicRail and two GreenRoof Braces. Material: Aluminium EN AW 6063 T66
GreenRoof Beam
Product number:
2004194
Top beam for the GreenRoof Vento system. Length: 1.00 m. Material: aluminium EN AW 6060 T66
K2 Clamp EC 25-40
Product number:
2004543
MCS Certified
Universal module end clamp for fixing solar modules with frame heights of 25-40 mm. Not compatible with the K2 Dome 6 System. Material: Aluminium EN AW 6063 T66, Stainless steel, Thermoplastic.
MK2 insertion nut with clip, Stainless steel
Product number:
1001643
The Fast-installation MK2 insertion nut can be put into the K2 rail everywhere. The slot nut will adjust itself in the the rail and can be readjusted to every place of the rail. Material: stainless steel 1.4301, TPC.
Hexagonal socket head cap screw M8x20
Product number:
2001729
Hexagon socket head cap screw M8x20 with serration ISO 4762. Drive size: A/F 6. Material: Stainless steel A2
Hexagon Flange nut with serration M8
Product number:
1000043
Hexagon flange nuts with serration M8; DIN 6923 A2 M8. The Serration prevents accidental release. Material: A2 stainless steel; Drive size:A/F 13
PE Baseplate
Product number:
1001572
K2 Polyethylene base plate, used as base for installation of K2 solar mounting systems on flatroofs with gravel. Dimensions: 600x800 mm. Material: Polyethylene. Colour of the product may differ from the picture.
Self-tapping screw with sealing washer, 6x25
Product number:
1000212
Self-drilling hexagonal sheet metal screw with sealing washer (Ø16 mm) 6.0x25 mm. Approved for sheet steel from 0.5 mm and for aluminium from 0.8 mm. With ETA certification. Material: A2 stainless steel, EPDM
Climber 36/50 Set
Product number:
2003145
A cross connector for the K2 SingleRail 36 & 50 and the K2 CrossRail 36 & 48. Nuts and bolts included. Material: aluminium EN AW-6063 T66, stainless steel A2
Metal perforated tie 20x0,8
Product number:
2002735
Perforated tape as wind bracing. One roll of perforated tape is 10 metres long. Material: Stainless steel A2 (1.4301)
Universal End Clamp OneEnd
Product number:
2002514
Alternative article: 2004543Universal module end clamp with simple "click function" for fixing solar modules with frame heights of 30-42 mm. Not compatible with the K2 Dome 6 System and K2 FlatRail, SolidRail L/ LS /XL and CrossRail 62/ 90. Material: Aluminium EN AW 6063 T66 / A2 / POM
Universal Middle Clamp OneMid 30-42 mm
Product number:
2003071
Alternative article: 2004537Universal module middle clamp with simple "click function" for fixing solar modules with frame heights of 30-42 mm. Not compatible with the K2 Dome 6 System and K2 FlatRail, SolidRail L/ LS /XL and CrossRail 62/ 90. Material: Aluminium EN AW 6063 T66 / EN AW 6082 T6 / A2 / POM

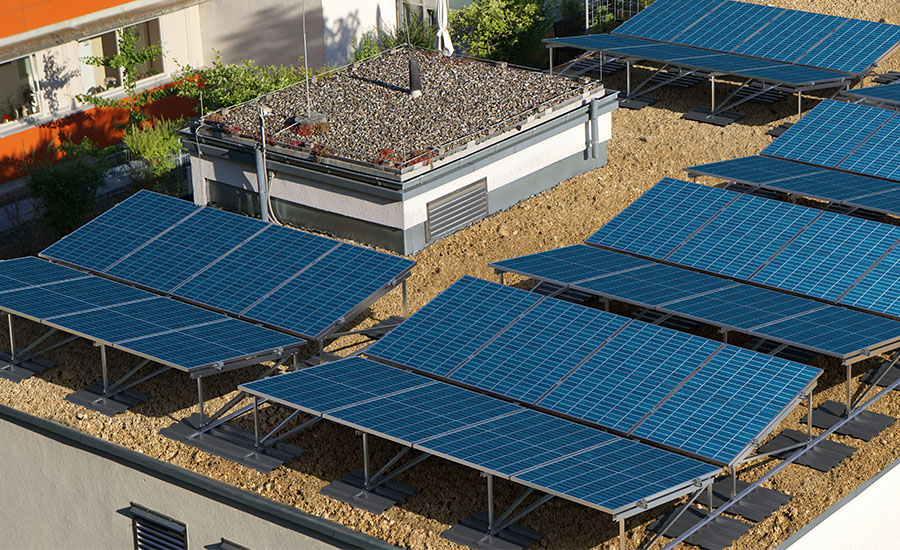

K2 GreenRoof Vento System
The clever solution for photovoltaic systems for green roofs.
Solution with a firm footing on green areas Sufficient distance between the module and the roof surface reduces the maintenance requirements of the green roof Greenery is protected from heat through the covering.
K2 GreenRoof Vento System
System Highlights
The module orientation can be in portrait or landscape.
High Flexibility: Elevations at angles of 10° or 15°, and up to a module size of 2,400mm x 1,350mm.
By maintaining large distances from the roof to the module, optimal conditions for the plants are created.
The development of the GreenRoof Vento System aims to disturb the greening as minimally as possible. Thus, the support feet provide a solid foundation but are designed small enough to allow mosses and succulents to continue receiving light and water to contribute their valuable role.
K2 GreenRoof Vento System
| GreenRoof Vento System | |
|---|---|
| Area of application | Flat roofs with Greenery or Gravel |
| Configurations | Modules in portrait or landscape elevated at 10° or 15° |
| Module dimensions (lxwxh) | 1400-2400 mm x 950-1350 mm x 30-50 mm |
| Materials |
|
| Surface | Blank aluminium |
K2 GreenRoof Vento System
Downloads
Product brochure
Checklist - Flat roof systems
GreenRoof Vento 10° - A-Form Landscape
GreenRoof Vento 10° - A-Form Portrait
GreenRoof Vento 10° - S-Form Landscape
GreenRoof Vento 10° - S-Form Portrait
GreenRoof Vento 10° - V-Form Landscape
GreenRoof Vento 10° - V-Form Portrait
GreenRoof Vento 15° - A-Form Landscape
GreenRoof Vento 15° - A-Form Portrait
GreenRoof Vento 15° - S-Form Landscape
GreenRoof Vento 15° - S-Form Portrait
GreenRoof Vento 15° - V-Form Landscape
GreenRoof Vento 15° - V-Form Portrait
K2 GreenRoof Vento System
Videos
K2 GreenRoof Vento System
K2 Base: Easy, fast and safe planning
Quick and easy planning in five steps of K2 mounting systems for pitched and flat roofs. Our free planning tool K2 Base has a dashboard for efficient project management. Google Maps integration and graphic drawing tools support you in planning and make it easier.
