K2 Clamp MC 25-40
Product number:
2004537
GTIN:
4251786216314
Product information

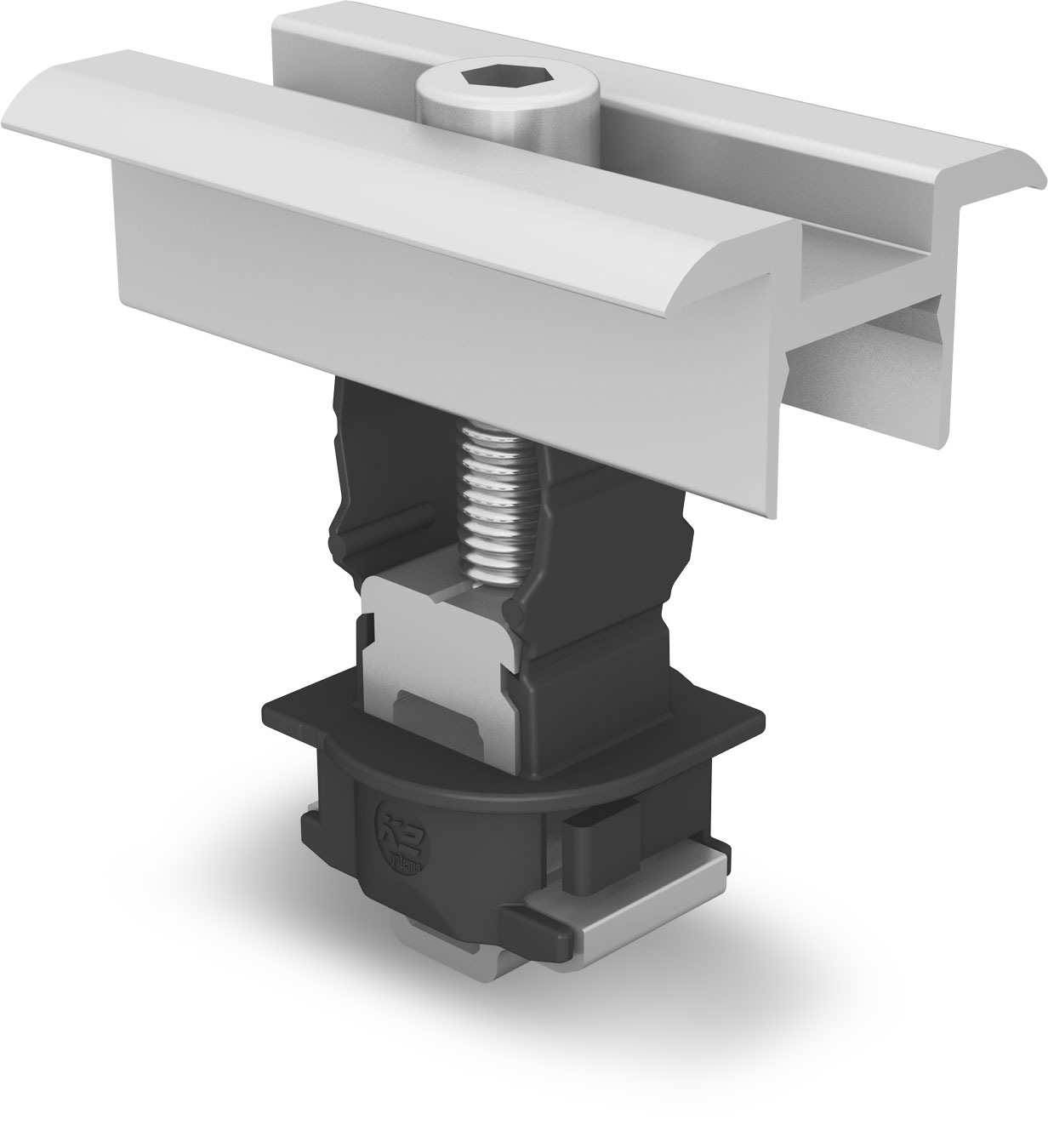

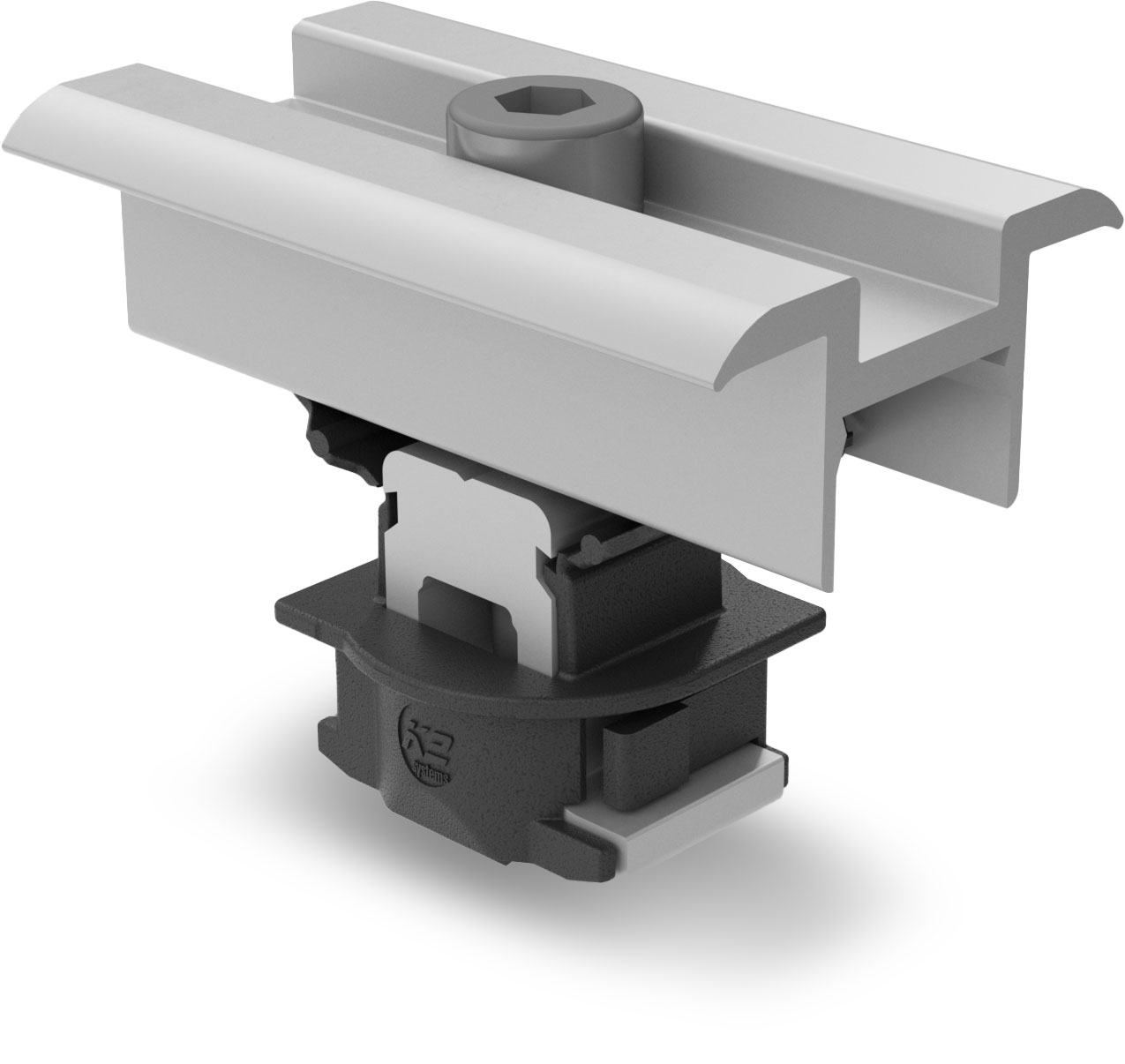

K2 Clamp - Universal clamp for fixing solar modules with frame heights of 25-40 mm. Not compatible with the K2 Dome 6 system. Material: Aluminium EN AW 6063 T66, Thermoplastic, stainless steel A2
| EU Kategorien - Klemmentyp: | MC |
|---|---|
| Module Clamps: | Middle Clamps |
| Mounting systems: | K2 BasicRail System, K2 GreenRoof Vento, K2 MiniRail MK2 System, K2 MultiAngle System, K2 MultiRail System, K2 SingleRail System, K2 SolidRail System, K2 TiltUp Vento System, K2 Universal KL-Clamp System |
| Scope of application: | Pitched Roof |
| Component type: | Module clamp |
| Weight: | 0.072 Kg |
Downloads
| Technical Datasheet: | Login to see details |
|---|---|
Compatible Items
Compatible items
MiniRail MK2 Set
Product number:
2004211
Short rail for mounting solar modules on trapezoidal sheet metal roofs. Including thread-forming screws with sealing washer (diameter 6 mm). Material: Aluminium EN AW-6063 T66, EPDM, stainless steel A2
MultiRail 10
Product number:
2001300
Short rail with static confirmation in K2 Base. For direct mounting in landscape orientation on sheet metal roofing. Length: 100 mm. Material: Aluminium EN AW-6063 T66, EPDM
MultiRail 10 CSM
Product number:
2004209
Short rail with static confirmation in K2 Base. For direct mounting in landscape orientation on corrugated sheet metal covering with a radius of 22-45 mm. Length: 100 mm. Material: Aluminium EN AW-6063 T66, EPDM
MultiRail 25
Product number:
2002793
Short rail with static confirmation in K2 Base. For direct mounting in landscape orientation on sheet metal roofing. Length: 250 mm. Material: Aluminium EN AW-6063 T66, EPDM
MultiRail 25 CSM
Product number:
2004210
Short rail with static confirmation in K2 Base. For direct mounting in landscape orientation on corrugated sheet metal covering with a radius of 22-45 mm. Length: 250 mm. Material: Aluminium EN AW-6063 T66, EPDM
SingleRail 36; 4.80 m, black anodised
Product number:
2004396
Mounting rail with side-connection and static confirmation in K2 Base. Can be used variably for different roof connections. Length: 4.80 m. Material: aluminium EN AW-6063 T66, black anodized. Eloxal may show slight scratches as a result of packaging and transport.
SolidRail Alpin; 5.95 m
Product number:
2004275
Mounting rail with static confirmation in K2 Base. Can be used variably for different roof connections. For high span width. Length 5.95 m. Material: aluminium EN AW-6063 T66
SolidRail Light; 4.80 m, black anodised
Product number:
2004397
Mounting rail with static confirmation in K2 Base. Can be used variably for different roof connections. Length 4.80 m. Material: aluminium EN AW-6063 T66, black anodized. Eloxal may show slight scratches as a result of packaging and transport.
SolidRail Medium; 4.80 m
Product number:
2004415
Mounting rail with static confirmation in K2 Base. Can be used variably for different roof connections. Length: 4.80 m. Material: aluminium EN AW-6063 T66
TerraGrif QL
Product number:
2004231
Mounting accessories for establishing equipotential bonding of the K2 mounting systems or for earthing the module frames. Compatible moduleclamp: K2 Clamp 25-40.
