K2 Dome 6 System
BasicRail 22
Product number:
2004277
MCS Certified K2 Clamp - Universal clamp for fixing solar modules with frame heights of 25-40 mm. Not compatible with the K2 Dome 6 system. Material: Aluminium EN AW 6063 T66, Thermoplastic, stainless steel A2
D-Dome 6.15 Base Set
Product number:
2004500
Pre-assembled base rail set for the D-Dome 6.15 system for module widths of 960-1170 mm. Including BasicRail 2.48 m, 2 x Dome 6.15 SD, 2 x Dome 6 EndPlate, 3 x Dome Mat S. Material: aluminium, EPDM, stainless steel
D-Dome 6.10 Base Set
Product number:
2003620
Pre-assembled basic rail set for the D-Dome 6.10 system for module widths of 960-1170 mm. Including BasicRail 2.48 m, 2 x Dome 6.10 SD, 2 x Dome 6 EndPlate, 3 x Dome Mat S. Material: aluminium, EPDM, stainless steel
S-Dome 6.10 Base Set
Product number:
2003621
Pre-assembled base rail set for the S-Dome 6.10 system for module widths of 960-1170 mm. Including BasicRail 1.50 m, 1 x Dome 6.10 SD, 1 x Dome 6 EndPlate and 2 x Dome Mat S. Material: aluminium, EPDM, stainless steel
D-Dome 6.10 Base Set LS
Product number:
2004714
Pre-assembled base rail set for the D-Dome 6.10 LS system for module widths of 1134 mm. Including BasicRail 2.65 m, Dome 6.10 SD LS, Dome 6.10 MidPlate LS and Dome Mat S 380. Material: aluminium EN AW 6063 T66, EPDM Shore A 70, stainless steel
Dome Mat S 380
Product number:
2003126
Mat S Support Pad. Flexible function to absorb tolerances and protect the roof cover. Suitable for K2
BasicRail. Material: EPDM
Dome 6 Connector Set
Product number:
2004123
Rail connector set as connecting element between two K2 Dome 6 Base Set. Including accessories and equipotential bonding. Material: Aluminium, stainless steel
Dome FlatConnector Set
Product number:
1006039
Rail connector set as connecting element between two K2
BasicRail
22. Screws included. Material: Aluminium
EN AW 5754 H111, stainless steel A2.
Dome 6.10 Peak LS
Product number:
2004711
Peak for elevating the modules for the Dome 6.10 Base Set LS. The peak is clicked into the pre-assembled MidPlate LS. Material: Aluminium EN AW-6063 T66
Dome 6.15 Peak
Product number:
2004174
Component for the module elevation of the Dome 6.15 system. The peak can either be clicked into the pre-assembled base plate or fixed directly to the BasicRail with a socket head bolt and MK2. Material: Aluminium EN AW-6063 T66
Dome Zero Peak
Product number:
2003123
Component for the roof-parallel module elevation of the Dome Zero system. The peak is fixed to the
BasicRail
with a socket head screw and MK2. Material: Aluminium EN AW-6063 T66
Dome 6.10 SD
Product number:
2003243
Front module support element for the Dome 6.10 system. Material: aluminium
Dome 6.10 Peak
Product number:
2004125
Component for the module elevation of the Dome 6.10 system. The peak can either be clicked into the pre-assembled base plate or fixed directly to the
BasicRail
with a socket head bolt and MK2. Material: Aluminium EN AW-6063 T66
Dome 6.15 SD
Product number:
2004175
Front module support element for the Dome 6.15 system. Material: aluminium
K2 TerraGrif K2MI Duo 18
Product number:
2003542
Mounting accessories for DomeClamp Moduleclamp establishing equipotential bonding of the K2 Dome 6 mounting system or for earthing the module frames.
DomeClamp Middle Clamp 30-50 mm
Product number:
2002558
Universal middle clamp set for fastening solar modules on the K2 Dome 6 System. Material: Aluminium EN AW 6063 T66; EN AW 6082 T6, Stainless steel (1.4301)
DomeClamp Middle Clamp 30-50 mm, black anodized
Product number:
2002609
Black anodized universal middle clamp set for fastening solar modules on the K2 Dome 6 System. Material: Anodized aluminium EN AW 6063 T66; EN AW 6082 T6, Stainless steel (1.4301). Eloxal may show slight scratches as a result of packaging and transport.
S-Dome 6.10 Windbreaker LS
Product number:
2004167
K2 Windbreaker to deflect wind on the backs of the K2 S-Dome 6.10 Classic LS system. Suitable for module dimensions from 1562 - 2390 mm. Material: Magnelis 1.0242 (S250GD+ZM310)
S-Dome 6.15 Windbreaker
Product number:
2004180
K2 Windbreaker (deflector) for wind deflection on the reverse side of the K2 S-Dome 6.15 System. Suitable for module lengths 1799 mm - 2150 mm. Material: Steel with Magnelis ZM310 coating
S-Dome 6.15 Windbreaker LS
Product number:
2004183
K2 Windbreaker to deflect wind on the backs of the K2 S-Dome 6.15 Classic LS system. Suitable for module dimensions from 1562 - 2390 mm. Material: Magnelis 1.0242 (S250GD+ZM310)
S-Dome 6.10 Windbreaker
Product number:
2004103
K2 Windbreaker (deflector) for wind deflection on the reverse side of the K2 S-Dome 6.10 System. Suitable for module dimensions from 2045 mm - 2398 mm. Material: Steel with Magnelis ZM310 coating
Dome Porter X-tra long
Product number:
2004098
For quick and universal mounting of different ballasting for K2 Dome 6 systems. Dimensions: 2450x40x60 mm. Maximum permissible ballast: 148 kg (distributed over 2 mounted dome porters). Suitable for module lengths 1998-2405 mm. Material: Aluminium EN AW 6063 T66
Dome SpeedPorter
Product number:
2002300
For ballast mounting for the K2 Dome 6 Classic flat roof system. Place two SpeedPorters at a distance from each other, depending on the size of the bricks, on the
BasicRail and place ballast (up to approx. 40 kg) on them. Material: aluminium
Dome Porter Flex
Product number:
2004157
For quick and universal mounting of different ballast systems for the K2 Dome Zero System and K2 Dome 6 LS System. Dimensions: 1365x40x40 mm. Maximum permissible ballast: 178 kg (distributed over 2 mounted Dome Porters). The Porter can be used with the Dome Zero System for module widths of up to 1320 mm and with the Dome 6 Classic LS System for module lengths of 1562-2390 mm. Please check the correct position of the module clamping points on site. Material: Aluminium EN AW 6063 T66
MK2 insertion nut with clip, Stainless steel
Product number:
1001643
The Fast-installation MK2 insertion nut can be put into the K2 rail everywhere. The slot nut will adjust itself in the the rail and can be readjusted to every place of the rail. Material: stainless steel 1.4301, TPC.
Hexagonal socket head cap screw M8x20
Product number:
2001729
Hexagon socket head cap screw M8x20 with serration ISO 4762. Drive size: A/F 6. Material: Stainless steel A2
Multi Monti - fastner 7.5x40/5
Product number:
2002570
Concrete screw anchor MULTI-MONTI-plus MS 7,5x40 with flange head is driven directly into a pre-drilled hole, where it is immediately loadable. Its reinforced toothed concrete thread cuts an internal thread into the building material. Material: carbon steel bright zinc plated, A2K
Solar Cable Manager
Product number:
2002870
Solar Cable Manager with connecting possibility for outdoor-installation. LxW: 200x4.6 mm
Cable routing Performa Mesh Tray 70x100x3000
Product number:
2004054
Performa mesh tray for cable management on the flat roof in combination with the PVX Multimount or on trapezoidal sheet metal in combination withe the PVX Minimount. Dimensions (LxWxH): 3000 x 100 x 75 mm. Wire diameter: 3,9 mm. Material: steel (zinc+)
Dome FixPro S
Product number:
2003384
Fixing accessories for attaching the K2 Dome 6 LS-systems and K2 Dome Zero to a mounting base for roofs ≥ 3°. Depending on the mounting base, a Climber M10 or M12 and an adapter plate are required separately. Suitable for module lengths: Classic LS 1562 - 2390 mm, Xpress LS 1562 - 2500 mm, Dome Zero 1640 - 2390 mm. Material: aluminium, stainless steel, TPC.
Please check the correct position of the module's clamping points on site.
Dome FixPro L
Product number:
2004144
Fixing accessories for attaching the K2 Dome 6 (Classic and Xpress system) to a mounting base for roofs ≥ 3°. Depending on the mounting base, a Climber M10 or M12 and an adapter plate are required separately. Suitable for module lengths: 1448 - 2390 mm. Material: aluminium, stainless steel, PA
Climber 36/50 for roof fixture
Product number:
2003147
K2 Climber with slotted hole for fixing the K2 SingleRail or CrossRail mounting rail to the M12 hanger bolt/M12 roof anchor or as a connecting element between the flat roof mounting foot and the Dome FixPro. Material: Aluminium EN AW-6063 T66
Adapter plate M10 for roof fixture
Product number:
2002546
Adapter plate for M10 hanger bolts and roof anchors M10 in combination with the Climber M10 or as accessory part for the article Dome FixPro. Dimensions: 50x90. Material: aluminium
Dome Speed Spacer Large
Product number:
2004129
Distance tool for the K2 Dome system. Length: 2,50 m. Material: Aluminium, Acromide
Test weight for measuring the coefficient of friction
Product number:
2002620
Test weight for measuring the coefficient of friction on a roof.
PE Baseplate
Product number:
1001572
K2 Polyethylene base plate, used as base for installation of K2 solar mounting systems on flatroofs with gravel. Dimensions: 600x800 mm. Material: Polyethylene. Colour of the product may differ from the picture.
Self-tapping screw with sealing washer, 6x25
Product number:
1000212
Self-drilling hexagonal sheet metal screw with sealing washer (Ø16 mm) 6.0x25 mm. Approved for sheet steel from 0.5 mm and for aluminium from 0.8 mm. With ETA certification. Material: A2 stainless steel, EPDM
StairPlate Set
Product number:
2004057
The K2 StairPlate is the perfect solution for installing Micro Inverters and Optimizers from Solar Edge, Huawei and Enphase. With the StairPlate, these devices can be easily hooked into almost all K2 mounting rails without having to screw them directly to the roof. The units are attached to the K2 StairPlate in advance with the appropriate screws and nuts. Please note the height of the modules and the units to be used. Can only be used to a limited extent when using AddOn. Material: Stainless steel
Lightning protection clamp 8mm Set
Product number:
2004922
Lightning protection clamp for clamping lightning protection cables with a diameter of 8 mm. Includes MK2 insert nut with mounting clip and M8x25 pan head screw.
Climber 36/50 Set
Product number:
2003145
A cross connector for the K2 SingleRail 36 & 50 and the K2 CrossRail 36 & 48. Nuts and bolts included. Material: aluminium EN AW-6063 T66, stainless steel A2
PVX Multimount
Product number:
2003137
Alternative articles: 2004879 and 2004880The UV-resistant PVX Multimount provides a multifunctional cable management system for mesh tray and/or pipes on flat roofs and is made from 80% recycled plastic. Mesh tray and/or pipes are not included. Material: PE and ASA
DomeClamp End Clamp 30-50 mm
Product number:
2002559
Alternative article: 2004561Universal end clamp set for fastening solar modules on the K2 Dome 6 System. Material: Aluminium EN AW 6063 T66; EN AW 6082 T6, Stainless steel (1.4301)
DomeClamp End Clamp 30-50 mm, black anodized
Product number:
2002610
Alternative article: 2004564Black anodized universal end clamp set for fastening solar modules on the K2 Dome 6 System. Material: Anodized aluminium EN AW 6063 T66; EN AW 6082 T6, Stainless steel (1.4301). Eloxal may show slight scratches as a result of packaging and transport.
Self-tapping screw 4.8x20
Product number:
2003427
Alternative article: 2002937Thread-tapping screw 4.8x20 mm for S-Dome 6 Windbreaker mounting.
Lightning protection clamp Alu 8mm - Set
Product number:
2002473
Alternative article: 2004922Lightning protection clamp for clamping Ø 8mm lightning protection cables. Including MK2 slot nut, Washer (8,4x20x1,2 mm) and stainless steel socket screw M8x30.
K2 Dome 6 System
Flat roof solution for all roof coverings.
- Aerodynamic and ballast-optimised system based on the latest wind tunnel standards
- Secure anchoring with fixed connection for roofs < 10° and low load reserves
- Component-optimised system
K2 Dome 6 System
System variant
- 4 assembly steps for super-fast installation
- Time-saving alignment of the rails with the Dome Speed Spacer gauge
- Snap-in system for peaks and tool-free rail connectors
- Flexible row spacing
- Suitable for foil, bitumen, gravel and green roofs
- Suitable for additional elevation on trapezoidal sheeting
- For mounting on the long module side
- For module sizes up to 2390 × 1170 mm
- Based on Dome 6 Classic
K2 Dome 6 System
Technical data
| D-Dome 6.10 | S-Dome 6.10 | |
|---|---|---|
| Area of application | Flat roofs < 10° with single ply membrane or bituminous roof covering, also on concrete, gravelled or green roofs | Flat roofs < 10° with single ply membrane or bituminous roof covering, also on concrete, gravelled or green roofs |
| Fastening type/roof fixture |
|
|
| Requirements |
|
|
| Technical specifications Base rail |
|
|
| Technical specifications Module row |
|
|
| Minimum distance to the edge of the roof | 600 mm | 600 mm |
| Inclination angle | 10° | 10° |
| Material |
|
|

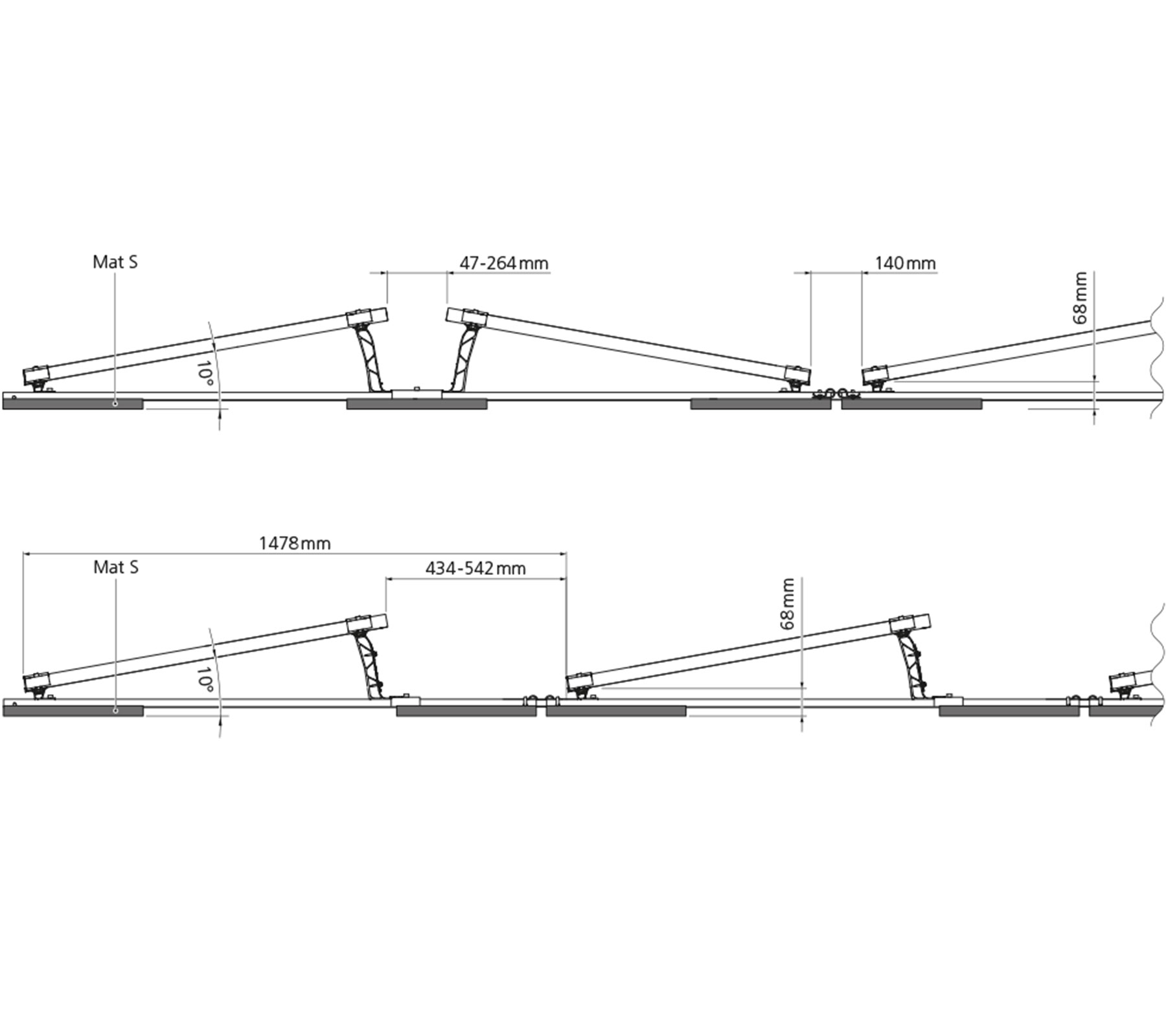

Side views
K2 Dome 6 System
Downloads
Product brochure
General Assembly and Maintenance Instructions
Assembly instructions - D-Dome 6 Xpress
Assembly instructions - D-Dome 6 Classic
Assembly instructions - D-Dome 6 Xpress LS
Assembly instructions - D-Dome 6 Classic LS
Assembly instructions - D-Dome 6 on trapezoidal sheet metal with BasicRail System
Assembly instructions - D-Dome 6 Lifted LS · roof anchors (without ballast)
Assembly instructions - S-Dome 6 on trapezoidal sheet metal with BasicRail System
Assembly instructions - S-Dome 6 Xpress
Assembly instructions - S-Dome 6 Classic
Assembly instructions - S-Dome 6 Classic LS
Assembly instructions - MultiRail with S-Dome 6 elevation
Assembly instructions - PE plates and walkway slabs
Installation instructions - Dome FixPro for SikaRoof® Anchor
Assembly instruction - RidgeConnector
Elevation with RailUp for Dome 6 Systems Classic / Classic LS
Recommendations-Load Distribution
Checklist - Flat roof
Module approval flat roof systems: Dome 6
