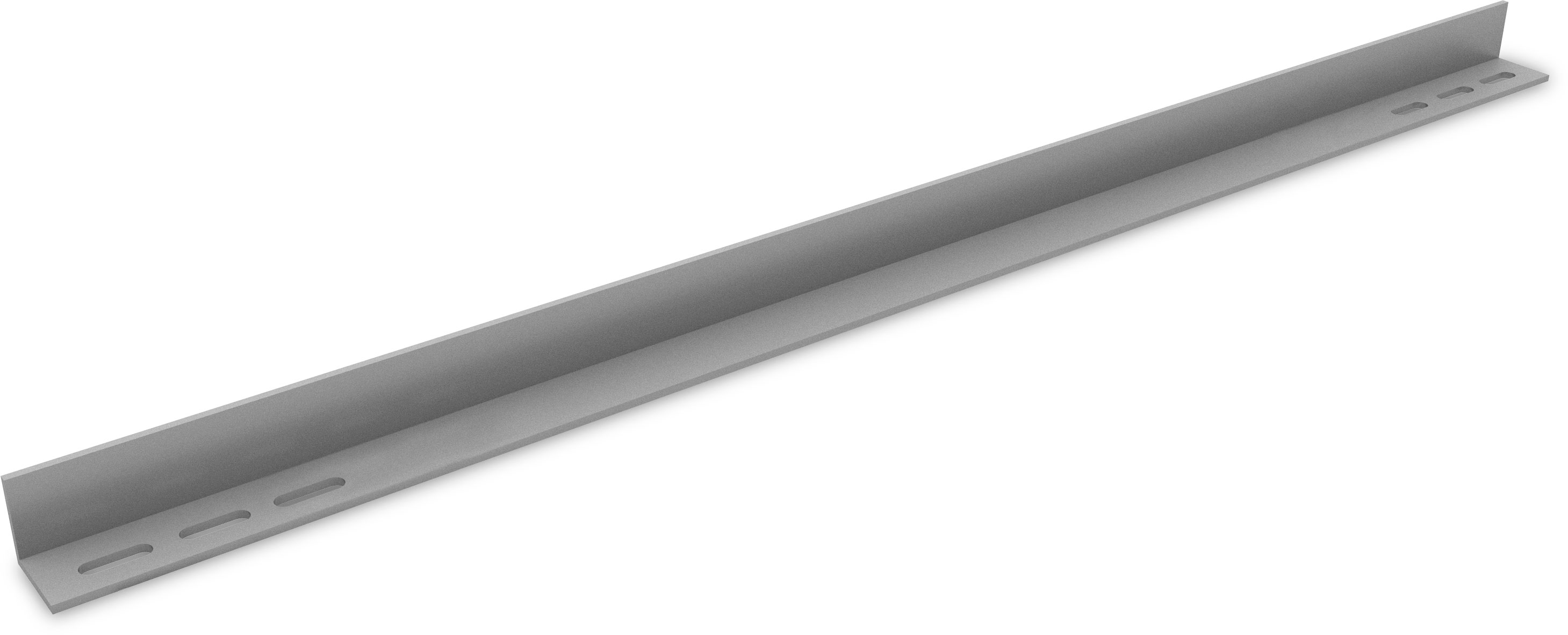

Dome Porter long
New
Product number:
2005283
GTIN:
4251786217670
Accessories
Product information
For the quick and universal mounting of various ballast weights beneath the modules – for K2 Dome 6 systems. Suitable for module lengths of 1743–2150 mm. Fastened using 2x MK2 and an M8x20 screw each. Maximum permissible ballast: 108 kg (distributed across 2 mounted Dome Porters). Dimensions: 2207 × 40 × 40 mm. Material: Galvanised steel 1.0529 (S350+ZM310).
| Dimensions [mm]: | 2207x40x40 |
|---|---|
| Maximum allowable ballast [kg]: | 108 |
| Module length [mm]: | 1392-1799 |
| Mounting systems: | K2 Dome 6 System |
| Scope of application: | Flat roof |
| Component type: | Ballasting |
| Material: | Galvanised steel 1.0529 (S350+ZM310) |
| Sales unit: | 10 Piece |
| Packaging type: |
/ Special pallet |
| Weight: | 3.849 Kg |
| Customs tariff number: | 73089098 |
