Dome FixPro L
Product number:
2004144
GTIN:
4251786204458
Product information

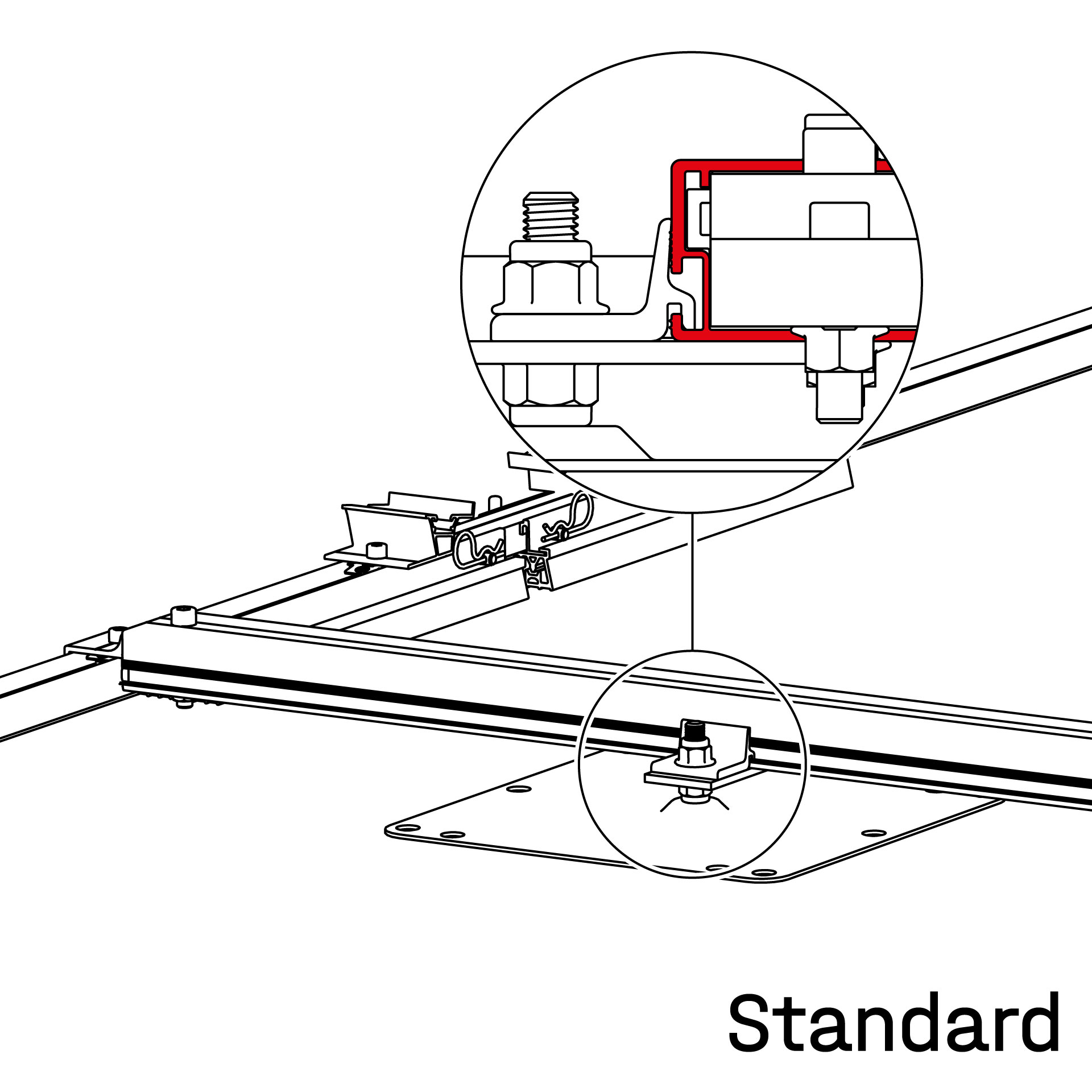

Fixing accessories for attaching the K2 Dome 6 (Classic and Xpress system) to a mounting base for roofs ≥ 3°. Depending on the mounting base, a Climber M10 or M12 and an adapter plate are required separately. Suitable for module lengths: 1448 - 2390 mm. Material: aluminium, stainless steel, PA
| Module length [mm]: | 1448-2390 |
|---|---|
| Mounting systems: | K2 Dome 6 System |
| Scope of application: | Flat roof |
| Component type: | Roof fixture |
| Material: | Aluminium EN AW 6063 T66, Stainless Steel 1.4301, Stainless Steel A2-70, TPC |
| Sales unit: | 1 Piece |
| Packaging type: |
60 / Pallet |
| Weight: | 4.016 Kg |
| Customs tariff number: | 76109090 |
Downloads
| Technical Datasheet : | Login to see details |
|---|---|
| Assembly instructions - D-Dome 6 Xpress + Classic: | CS DE EN ES FR HU IT JA NL PL RO SL |
| Assembly instructions - S-Dome 6 Xpress: | DE EN ES FR HU IT PL RO SL |
| Assembly instructions - S-Dome 6 Classic: | DE EN ES FR HU IT PL RO SL |

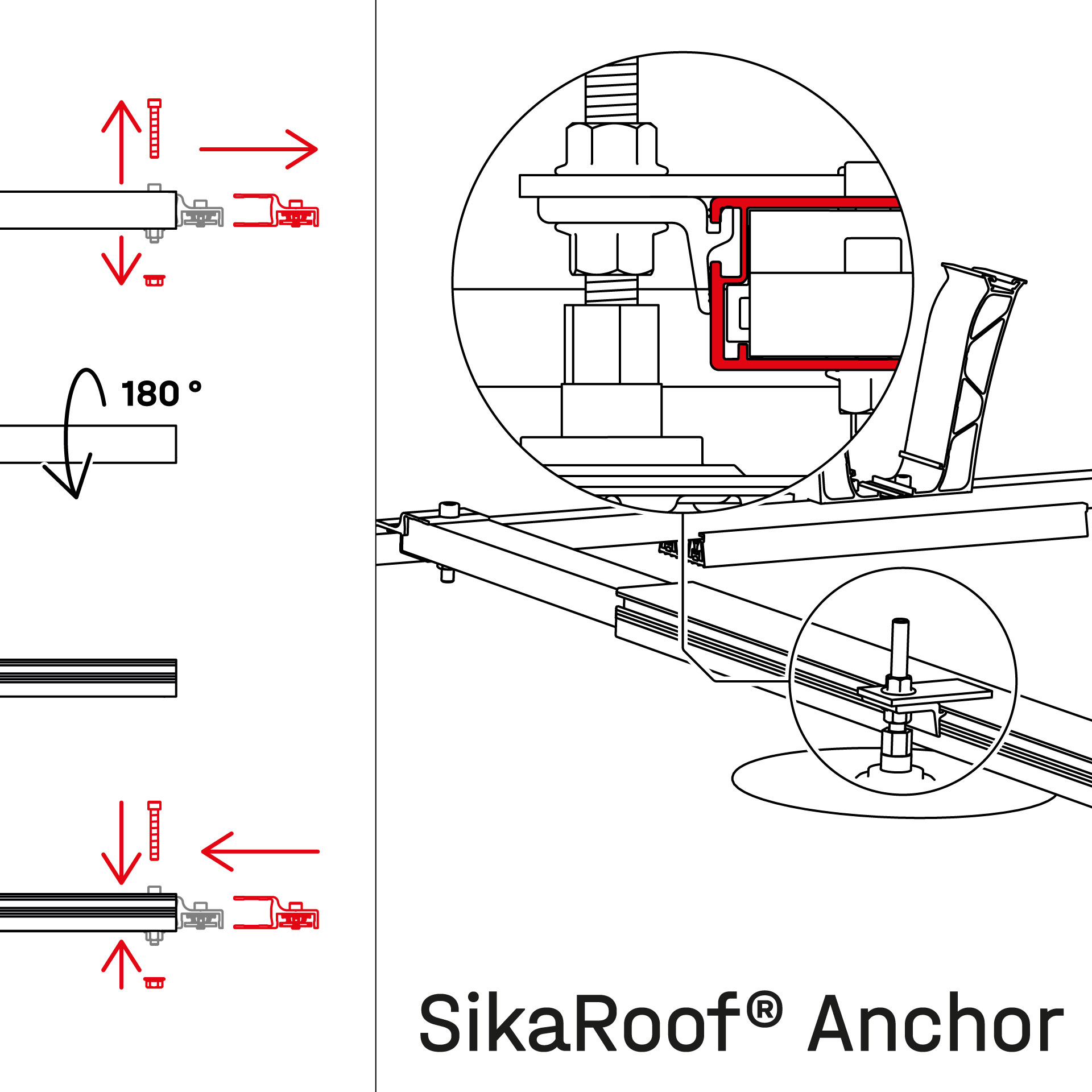

| Installation instructions - Dome FixPro for SikaRoof® Anchor: | DE EN |
Compatible Items
BasicRail 22
Product number:
2004279
Quick mounting rail with static confirmation in K2 Base. For mounting with BasicClip on a trapezoidal sheet metal roof or as base rail for the K2 Dome System. Length: 5.95 m. Material: Aluminium EN AW-6063 T66
S-Dome 6.10 Base Set
Product number:
2003621
Pre-assembled base rail set for the S-Dome 6.10 system for module widths of 960-1170 mm. Including BasicRail 1.50 m, 1 x Dome 6.10 SD, 1 x Dome 6 EndPlate and 2 x Dome Mat S. Material: aluminium, EPDM, stainless steel
S-Dome 6.15 Base Set L
Product number:
2004176
Follow-up article: 2004501Pre-assembled basic rail set for the S-Dome 6.15 system for module widths of 1061-1170 mm. Includes
BasicRail
, Dome SD, EndPlate and Mat S. Material: Aluminium, EPDM, stainless steel
D-Dome 6.10 Base Set
Product number:
2003620
Pre-assembled basic rail set for the D-Dome 6.10 system for module widths of 960-1170 mm. Including BasicRail 2.48 m, 2 x Dome 6.10 SD, 2 x Dome 6 EndPlate, 3 x Dome Mat S. Material: aluminium, EPDM, stainless steel
Climber 36/50 for roof fixture
Product number:
2003146
K2 Climber with slotted hole for fixing the K2 SingleRail or CrossRail mounting rail to the M10 hanger bolt/M10 roof anchor or as a connecting element between the flat roof mounting foot and the Dome FixPro. Material: Aluminium EN AW-6063 T66
Adapter plate M10 for roof fixture
Product number:
2002546
Adapter plate for M10 hanger bolts and roof anchors M10 in combination with the Climber M10 or as accessory part for the article Dome FixPro. Dimensions: 50x90. Material: aluminium
