PerfoRail M; 4.20 m
New
Product number:
2004698
GTIN:
4251786216857
Product information

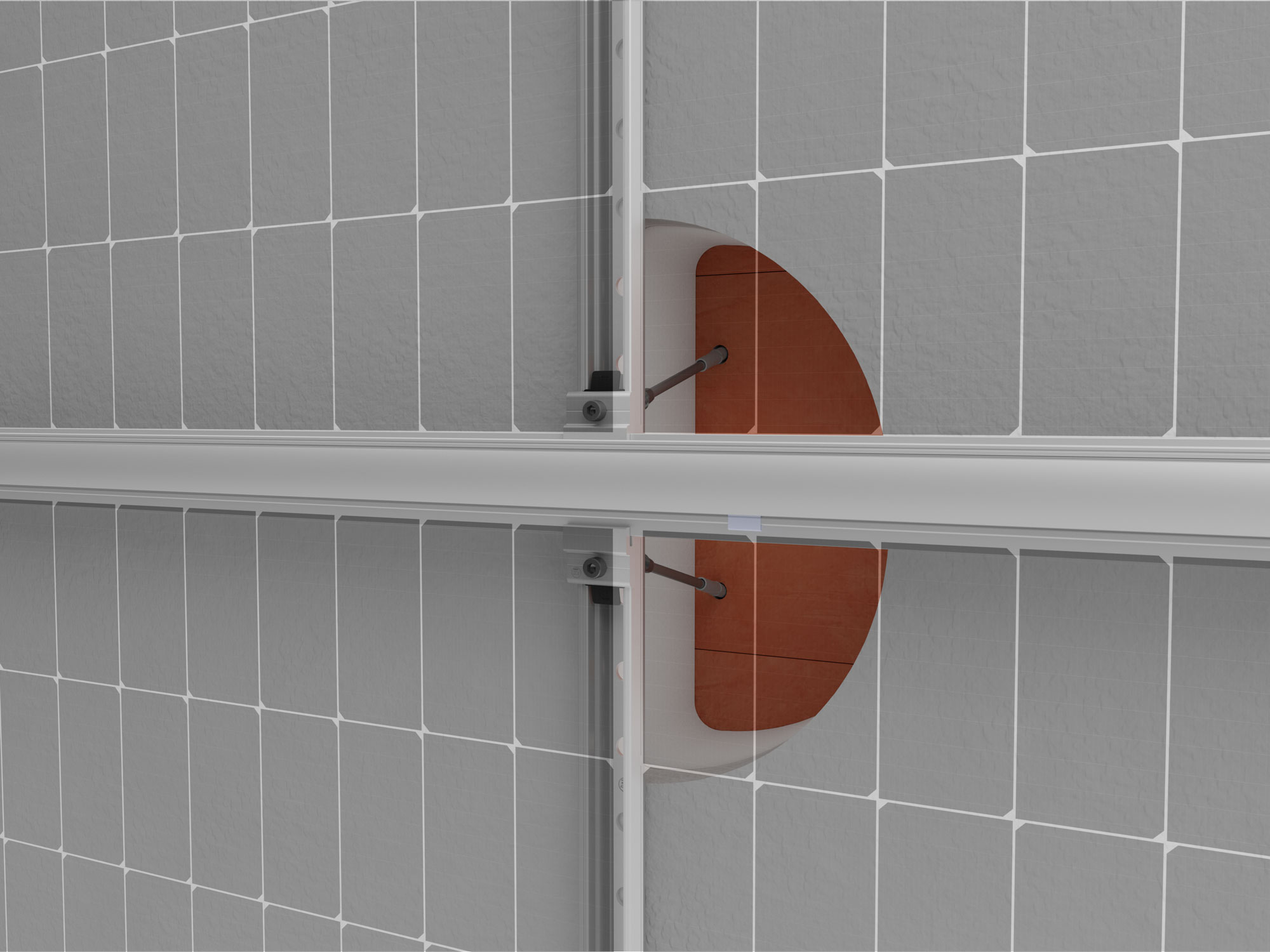

Perforated mounting rail for direct mounting on concrete with and without insulation. Quick and easy fastening using RDS spacer screw. Base of the rail is 3 mm thick. Material: Aluminium EN AW 6063 T66
| Height [mm]: | 32 |
|---|---|
| Length [m]: | 4.20 |
| Mounting Rails: | Mounting rails |
| Mounting systems: | K2 InsertionRail System, K2 WallPV |
| Scope of application: | Facade |
| Width [mm]: | 39 |
| Component type: | Mounting rail |
| Material: | Aluminium EN AW 6063 T66 |
| Sales unit: | 20 |
| Packaging type: |
100 / Bundle |
| Weight: | 2.612 Kg |
| Customs tariff number: | 76042990 |
Downloads
| Technisches Datenblatt: | Login to see details |
|---|---|
| Assembly instruction - PerfoRail M: | DE EN |
Compatible Items
Accessories
RDS-CA Spacer screw
Product number:
2004739
Spacer screw for fastening secondary aluminium substructures in front of masonry/concrete as a substructure for the InsertionRail. RDS-CA aluminium spacer screw, countersunk head, 10.0 x 190 mm, partial thread L1 100 mm, hexagon socket drive 6, surface pickled, passivated, anti-friction coated. Approval Z-21.2-2130. Material stainless steel A4. Manufacturer: Reisser.
InsertionRail 2.0 CrossConnector-T Set
Product number:
2004812
The CrossConnector 2.0 T-Set makes it easy to attach the InsertionRail 2.0 to any K2 mounting rail. The screws are located outside the mounted InsertionRail, which offers the advantage that the rail, including the CrossConnector, can still be moved vertically on the rail after mounting. All accessories required for installation are included in this set. Material: Aluminium EN-AW 6060 T66; stainless steel 1.4301; A2-70, TPC.
InsertionRail 2.0 CrossConnector-T Set, black anodised
Product number:
2004813
The CrossConnector 2.0 T-Set makes it easy to attach the InsertionRail 2.0 to any K2 mounting rail. The screws are located outside the mounted InsertionRail, which offers the advantage that the rail, including the CrossConnector, can still be moved vertically on the rail after mounting. All accessories required for installation are included in this set. Material: Aluminium EN-AW 6060 T66 black anodised; stainless steel 1.4301; A2-70, TPC. Anodising may show slight signs of scratching due to packaging and transport.
Rail AntiSlip Clip
Product number:
2004289
The WallPV FallProtection, compatible with the K2 MultiRail and FacadeRail, provides additional safety for the WallPV system. The Rail FallProtection is attached below the lower CrossConnector or the lower clamp to prevent slipping. It is attached using a 5.5x19 screw (2004432). Material: Aluminium EN AW 6063 T66
Self-tapping metal screw 5.5x19
Product number:
2004432
The 5.5 x19 self-tapping screw is specially designed for aluminium façade fastenings (up to 4 mm) and ensures a reliable fastening solution. This screw is used to fix the articles 2004288 - CarrierRail AntiSlip Plate and 2004289 - Rail AntiSlip Clip. Material: A4 stainless steel. Manufacturer: Hilti.
