K2 N-Rack System

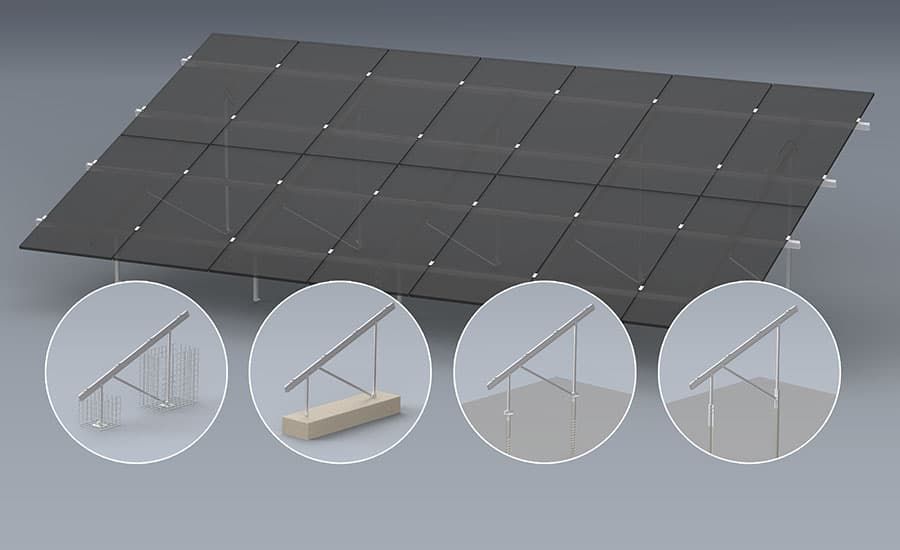

Realise smaller ground-mounted systems easily without calculation? You can with pre-assembled kits from our N-Rack ground-mounted system. Two kits are available, which are mounted on concrete foundations. Both kits are designed for a configuration with 2x12 modules vertically with a 20° inclination. The kits are designed for a load of 1.75 kN/m² snow with a wind load of 0.67 kN/m² and can therefore be installed easily and conveniently in many locations. For project-specific systems (on concrete and pile-driven profiles), please send your enquiry here.

More information here.

K2 N-Rack System : Description

10/04/2026

Technical data

	N-Rack
Applicationarea	Systematic outdoor installation solutions
N-Rack C or N-Rack CS?	N-Rack CS for module lengths up to 1,905 mm N-Rack C for module lengths from 1,905 mm
Permitted module dimensions (L×W):	CS: Length 1,722 - 1,905 × width 1,038 - 1,144 mm C: Length 1,906 - 2,384 × width 1,038 - 1,144 mm Special feature C: From a width of 1,303 mm - 2x10 PV modules instead of 2x 12 PV modules Further information in the data sheet.
Inclination angle	20° - two rows of modules 15° - three rows of modules (only possible with pile-driven foundations)
