K2 WallPV CarrierRail

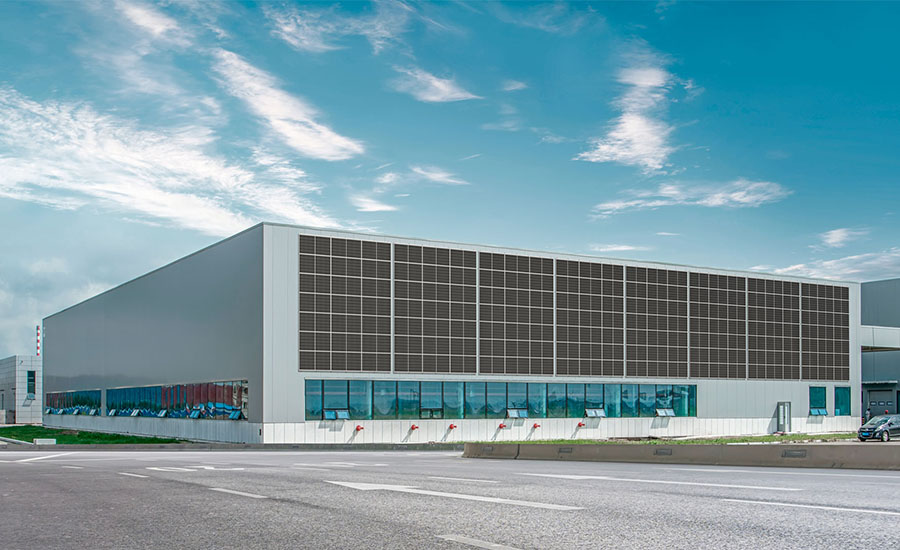

Building facades with sandwich panels are a large field of application for vertical photovoltaic systems. Our solution for this is the CarrierRail system for FischerTHERM Carrier® and Fischer Profil GmbH and MONTANATHERM sandwich panels from Montana Bausysteme AG.

Building authority approved assembly solution with high assembly speed
The solution for facades with FischerTHERM Carrier® and MONTANATHERM sandwich panels on large commercial buildings
Can be combined with facade cladding

K2 WallPV CarrierRail : Description

29/04/2026

	CarrierRail
SCOPE OF APPLICATION	Facade
FASTENING TYPE / ROOF FIXTURE	on sandwich profile
Thermal separations	A thermal break must be installed after 13.60m (vertical) and 21.0m (horizontal).
Minimum distance	None to consider.
Angle of inclination	Parallel to the facade

K2 WallPV CarrierRail : Description

29/04/2026

System Highlights

Photovoltaics on facades with sandwich panels:

Building facades with sandwich panels are a large field of application for vertical photovoltaic systems. This is a certified system for FischerTHERM Carrier® panels from Fischer Profil GmbH. It can also be used on MONTANATHERM panels. A large proportion of modern commercial and industrial buildings are nowadays built with this material. Thanks to thread-forming, self-sealing screws and InsertionRail insertion system for PV modules, installation happens at high speed.

Fast, secure fixing:

The CarrierRail is mounted with building authority-approved thin sheet metal screws that seal and are tried and tested in the roof area. The well-known MK2 rail channel and the additional components for module fixation use familiar K2 mounting principles.

Closed surface with insertion rails:

Silver or black InsertionRails provide an attractive overall appearance and stiffen the system. The PV modules can be installed quickly and securely on the façade with the InsertionRail. Despite the largely closed surface, enough gaps remain for rear ventilation.
